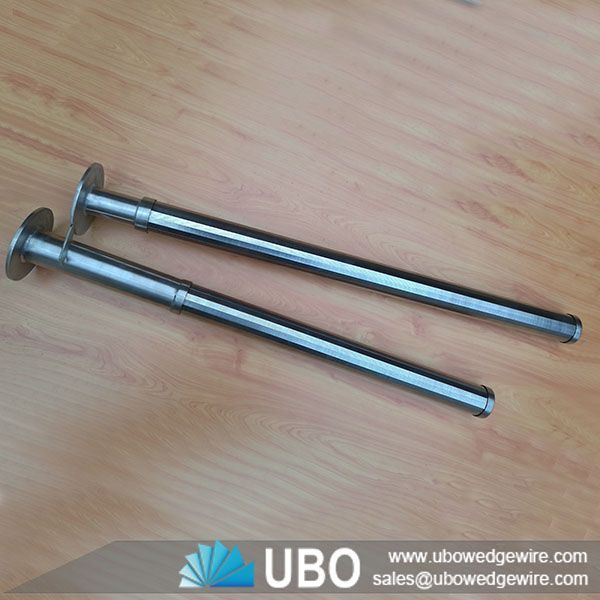

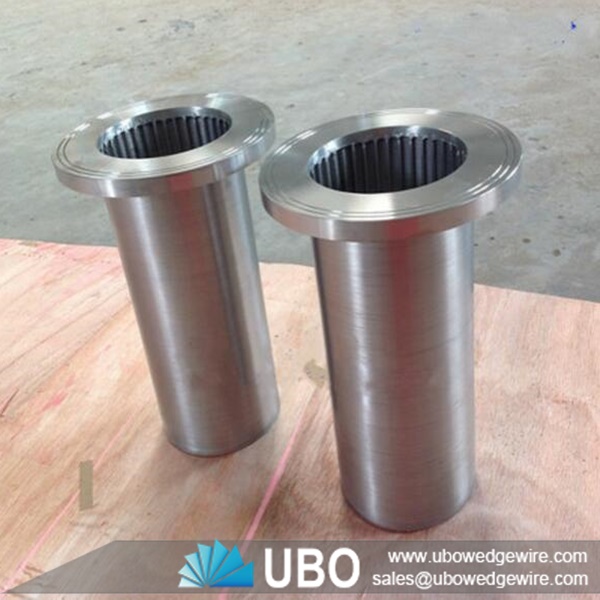

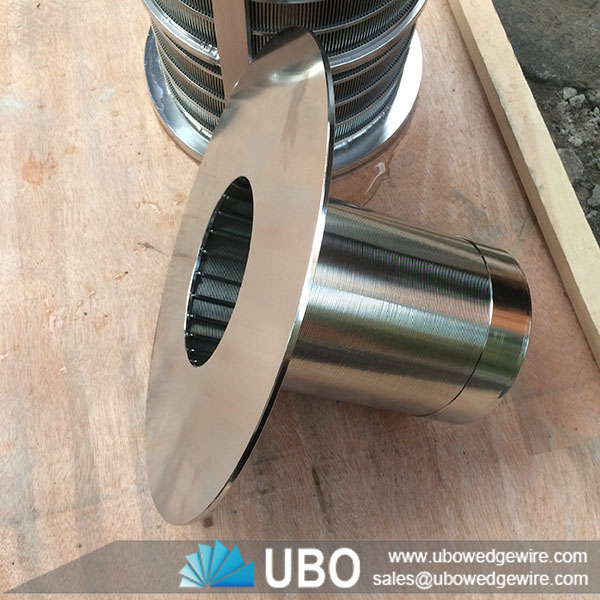

Stainless steel wire mesh screen cylinder wire wrapped screen filter pipe resin trap
Category: | Resin Traps |
---|---|
Material: | stainless steel 304,304L,316,316L,321,430 or as per your request. |
Properties: | resin trap |
Application: | water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Stainless steel wire mesh screen cylinder wire wrapped screen filter pipe resin trap
Stainless steel wire mesh screen cylinder wire wrapped screen filter pipe resin trap is made with inverted wrapped V wire (mostly stainless steel ) welded to the supporting ss bar or rod.The welded stainless steel oil well screen is made up of supporting rods and wire screening strips. The supporting rod can be round wire, triangular wire or trapezoid wire. The screening filter is made of triangular wire (V-shaped wire). Well screens have a structure and high opening area, as well as accurate slot dimension. In the same time, oil well screen have heat-resisting, anti-corrosive, good machine capability, long life span, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Features of Wedge Wire Wrapped Screen Filter Pipe
-- High mechanical strength can bear large pressure drop
-- Equal slots for filtering can form equally distributed filter cake
-- The wedge type slot can improve back flushing and regeration performance
-- It has resistant to pressure temperature aging corrusion can be applied for different kinds of fluid.
Applications of Wedge Wire Wrapped Screen Filter Pipe
Wedge wire wrapped screen filter pipes are widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.
Specifications of Stainless steel wire mesh screen cylinder wire wrapped screen filter pipe resin trap:
|
||||||
Material |
SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc |
|||||
OD Range |
25mm-2000mm |
|||||
ID Range |
19mm-1981mm |
|||||
Length Range |
Up to 6000 mm |
|||||
Slot Range |
20 micron to 3000 micron (Tolerance:+-5 micron) |
|||||
Wedge Wire |
0.5x1.5 |
0.75x1.5 |
1x2 |
1.5*2 |
2x3 |
2*4 |
Support Rod |
1.5x2.5
2x3 |
1.5x2.5
2x3 |
1.5x2.5
2x3 |
1.8*2.5
2x3 |
3*5 |
3*5 |
Connection |
Flange and thread |
|||||
End Type |
Closed plate |
|||||
Note |
Customized According To Special Requirement |
