Stainless Steel Resin Trap

More Views

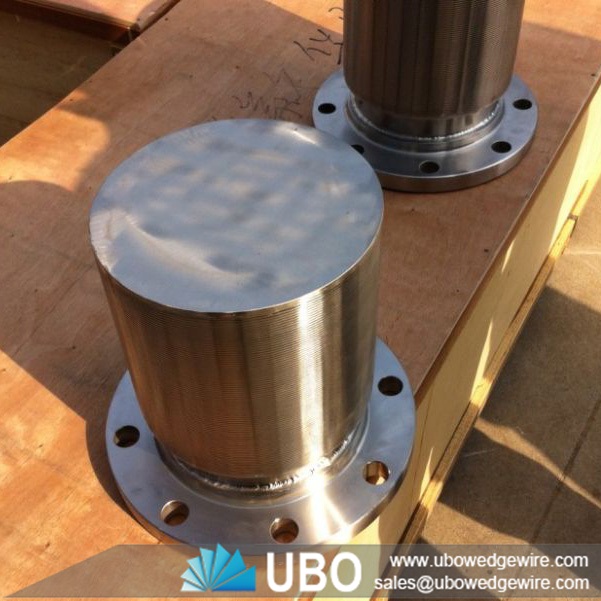

Stainless Steel Resin Trap

Category:Resin Traps
Material:stainless steel 304,316L, AISI304, AISI316, as your requirement
Properties:The key parts of the water treatment equipment and water distribution
Application:used in power oil wells, natural gas well, chemical engineering, mining industry, paper-making industry, environmental
tag:Resin Trap,

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Resin Trap

1) Introduction of Stainless Steel Resin Traps

Resin Trap Screens are widely used in water treatment processes namely in ‘Ion Exchange’ and other numerous media filter systems. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

The Profile Wire Screen element included with the main housing as depicted below eliminates the migration and loss of expensive resin/media, whilst at the same time protecting your pumping equipment. A combination of different Profile Wire sizes and slot openings can be used depending on your circumstances. Completion Products will also determine the effective screen open area in order to improve upon efficiency and minimise the pressure drop.

In the event that there is resin/media build up with the Resin Trap Screen assembly, an increase in the pressure drop will result and if one is installed, the resin/media will be visible through the “sight glass”.

2) Resin Trap Benefits

a) Eliminates mass resin/media loss into piping distribution system
b) Prevents loss of resin during backwashing
c) Protects downstream equipment and pumps
d) Visual detection of minor resin/media losses in advance of major equipment failure

3) Resin Traps Application

The resin trap is designed and installed to prevent the loss of media in the event of:

a) Underdrain failure

b) Lateral failure

c) Strainer failure

The resin trap is typically placed:


a) Between units

b) After a unit

c) In a backwash line

Specifications of Stainless Steel Resin Trap:

resin trap



Note: All the length units are in millimeter.

Item/DN

DN80

DN100

DN125

DN150

DN200

DN250

Capacity(T/H)

25

45

70

100

170

270

Model

SB80.25A

SB100.45A

SB125.70A

SB150.100A

SB200.170A

SB250.270A

L

524

600

730

850

1000

1160



219

245

273

351

402

450

DN1

80

100

125

150

200

250

DN2

25

25

25

25

25

25

Weight(Kg)

59

68

73

114

204

264







Pipe-Type Resin Trap



Item/ DN

Capacity
(T/H)

Model

L



DN1

DN2

Weight
(Kg)

DN150

95

SB-W150.95B

1170

273

150

80

183

DN250

354

SB-W250.354B

1160

450

250

100

272

Packaging and Transportation of Stainless Steel Resin Trap:

Package: in wood case

Delivery Time: 5-15 days.
