Resin Trap Wedge Wire Filter

More Views

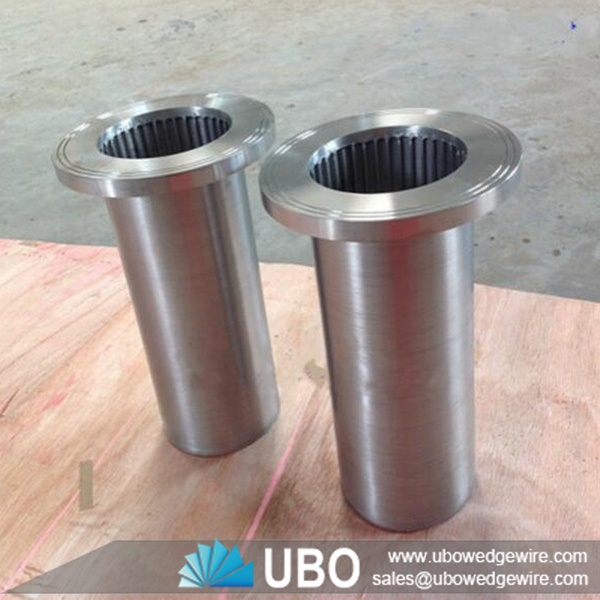

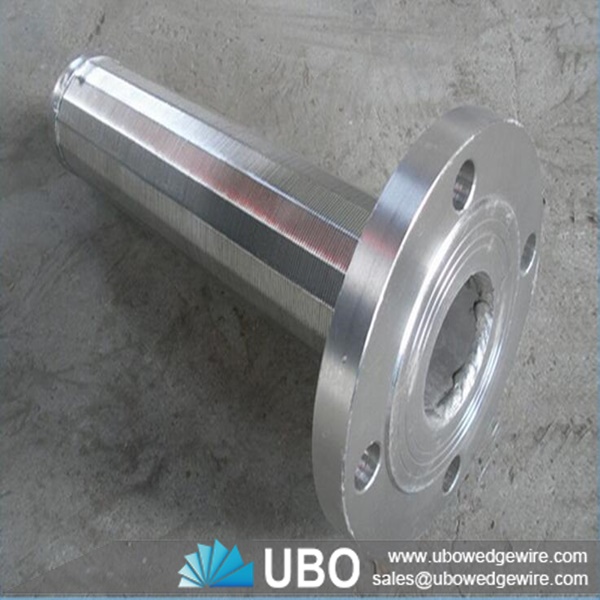

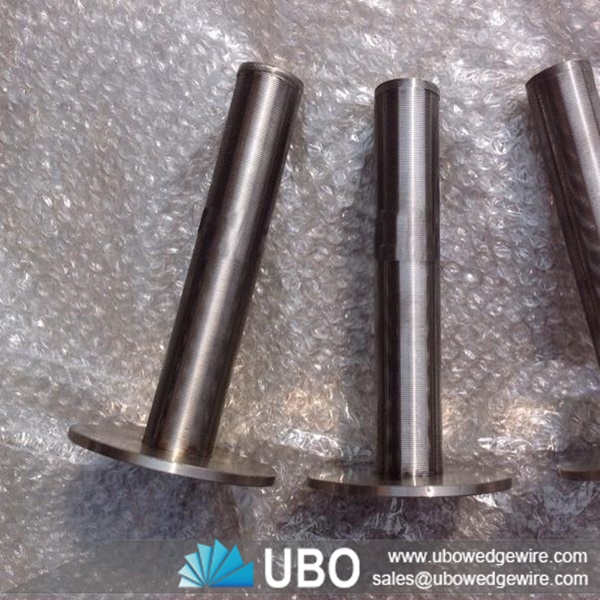

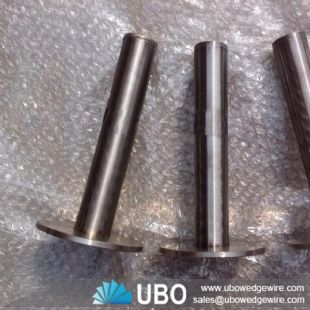

Resin Trap Wedge Wire FilterResin Trap Wedge Wire FilterResin Trap Wedge Wire Filter

Resin Trap Wedge Wire Filter

Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Resin Trap Wedge Wire Filter

High precision filtration rate Resin trap wedge wire filter wedge wire screen is one of Wedge wire screen Cylinders, V-Wire Wound Screens offer many advantages including a continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone. A "V" shaped profile wire which avoids clogging and ensures an uninterrupted flow. It allows a uniform and efficient well development due to the continuous slot opening. Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension. These screens have the features of easy back-washing, last long, safety and reliability as well as low comprehensive cost.



Advantages of Resin Trap Wedge Wire Filter



-- High open area

-- Quick filtration

-- Economical solution, also for refurbishing of existing lauter tuns

-- Accurate filter rating

-- Longer service life

-- Low maintenance costs

-- Possible to build-in in existing equipment(custom made)



Application of Resin Trap Wedge Wire Filter



Resin trap is normally used to capture expensive resin that escapes from a treatment vessel by accident,to protect equipment further downstream.a strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. cleaning is carried out by removing the strainer from the tube.



Resin trap wedge wire filter

Specifications of Resin Trap Wedge Wire Filter:

No.

(mm)TYPE

OD

(mm)

ID

(mm)

Support wire Number

Filter Direction

1

SRD 40

40

31

8/10

FOTI/FITO

2

SRD 45

45

36

10/12

FOTI/FITO

3

SRD 48

48

38

12

FOTI/FITO

4

SRD 60

60

51

12

FOTI/FITO

5

SRD 70

70

61

12/18

FOTI/FITO

6

SRD 85

85

76

18

FOTI/FITO

7

SRD 110

110

101

24

FOTI/FITO

8

SRD120

120

111

24

FOTI/FITO

Packaging and Transportation of Resin Trap Wedge Wire Filter:

packing
