wedge wire stainless steel hub lateral

More Views

wedge wire stainless steel hub lateralwedge wire stainless steel hub lateralwedge wire stainless steel hub lateral

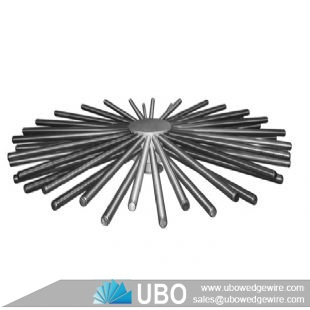

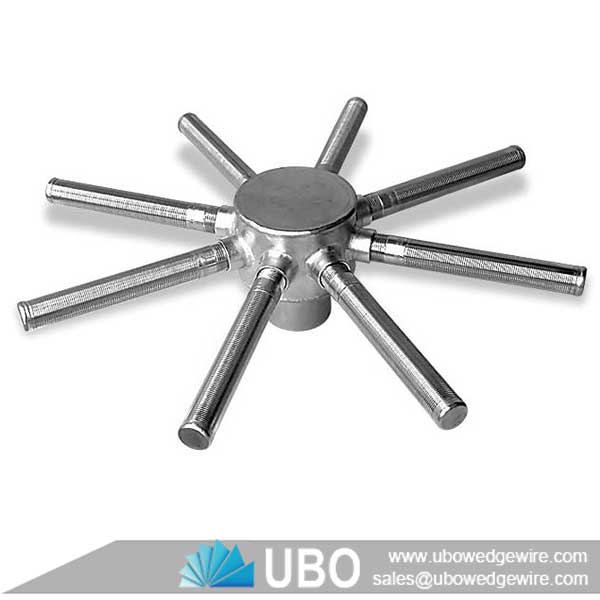

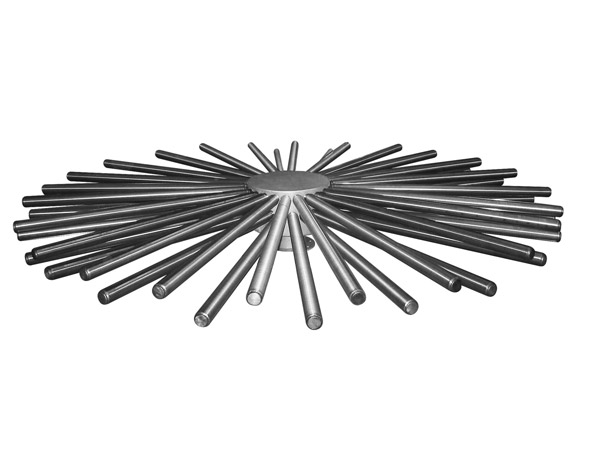

wedge wire stainless steel hub lateral

Category:Profile Screen Laterals
Material:stainless steel
Properties:wedge wire screen
Application: ion exchange equipment, medium filter and sand filter filter, the resin tank, silicate and chemical industry, water treatment industry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire stainless steel hub lateral

stainless steel hub lateral can be designed with slot openings and wires running radially onthe outside for flow from outside to inside. Or they can be positioned axially on the inside of the cylinder for flow from inside to outside.

Applications of wedge wire stainless steel hub lateral

The water distributor are widely used in ion exchange equipment, medium filter and sand filter filter, the resin tank, silicate and chemical industry, water treatment industry

Working Principle

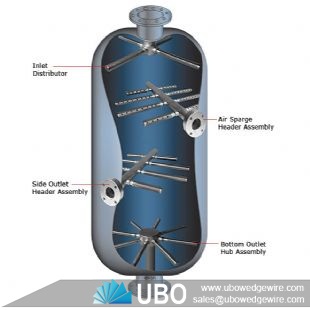

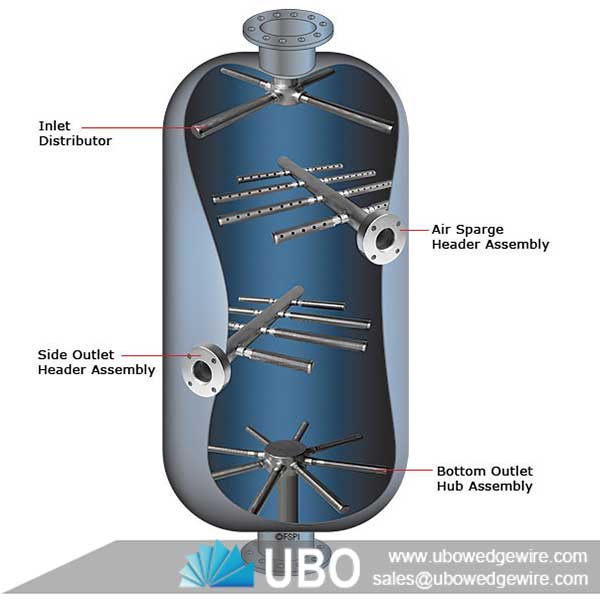

wedge wire screen hub lateral for Water device is mainly composed of mother pipe (center) of several wire pipe, via adjusting the number of size, type and distribution manifold, we can achieve excellent collection and distribution process. Water distribution device which can realize uniform and effective allocation and collection need to deal with liquid or gas.

          stainless steel hub lateral

Specifications of wedge wire stainless steel hub lateral:

Material:stainless steel

Type:hub lateral

Application:Widely used in ion exchange equipment, medium filter and sand filter filter, the resin tank, silicate and chemical industry, water treatment industry

hub lateral

Nominal     diameter

Branch diameter

Branch Qty

The specification of the nominal flange

1500

45-76

4-12

DN100

2000

45-76

4-12

DN125

2500

57-89

4-12

DN150

3000

57-108

4-12

DN200

3200

57-108

4-12

DN200

Packaging and Transportation of wedge wire stainless steel hub lateral:


Packaging Details: Wrapped wire hub laterals
                                   top standard package/Plywood box/Metal box
Delivery Detail: 15-30days after advance payment received or according to the customer the order quantity
