Water distribution device filter nozzles

More Views

Water distribution device filter nozzlesWater distribution device filter nozzlesWater distribution device filter nozzles

Water distribution device filter nozzles

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Filter Nozzle
Application:mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter, salt indu

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Water distribution device filter nozzles

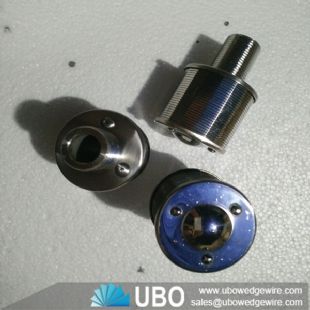

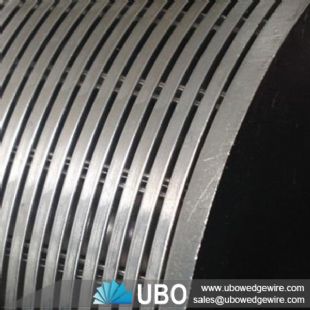

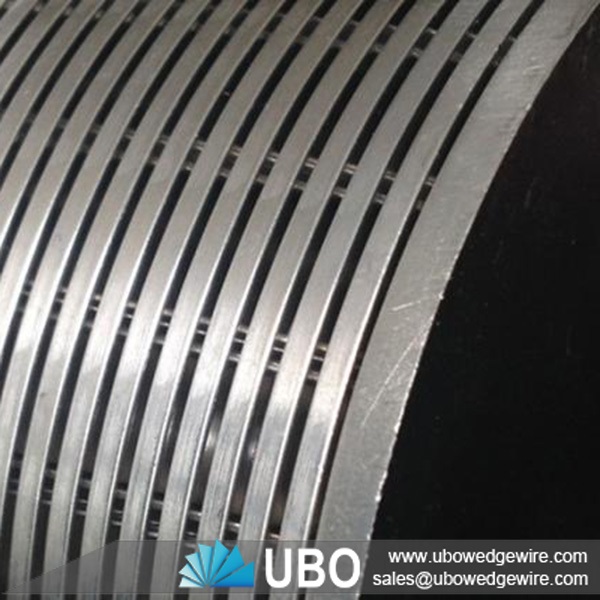

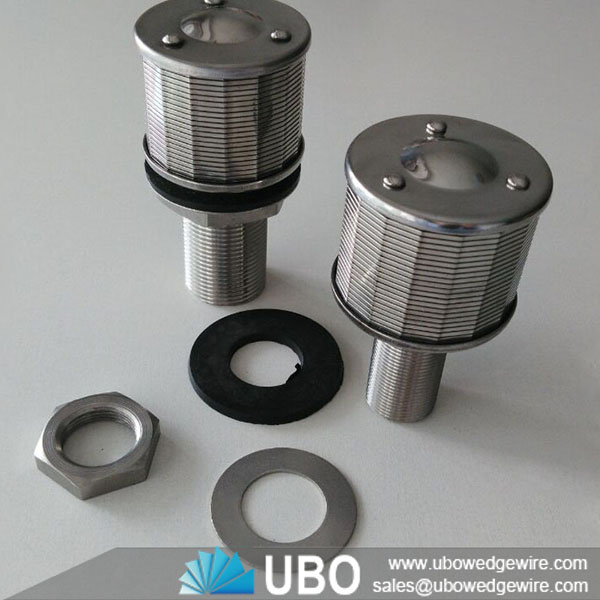

    Water wedge wire screen filter nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Application for Water distribution device filter nozzles:

The stainless wedged screen nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Advantages for Water distribution device filter nozzles:

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Water distribution device filter nozzles

Specifications of Water distribution device filter nozzles:

Water distribution device filter nozzles

No.



Type



Ton



Slot

Opening



Size

0.2-0.25mm slot opening Area of through-flow mm2(reference)

D

L1

L

M

1

SH45-1-C

0.5

0.2-0.5

45

45

95

24

500

2

SH53-2-B

1

0.2-0.5

53

45

100

24

570

3

SH53-2-C

1.5

0.2-0.5

53

50

110

32

700

4

SH57-3-B

2

0.2-0.5

57

45

110

32

600

5

SH70-4-B

3

0.2-0.5

70

55

120

32

1000



Packaging and Transportation of Water distribution device filter nozzles:

Water distribution device filter nozzles
