Quality Wedge Wire Screen Manufacturer in China

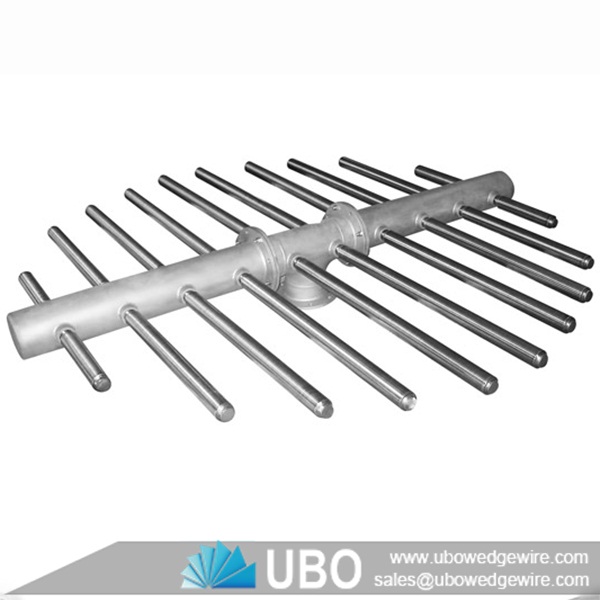

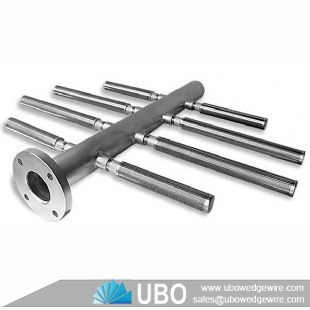

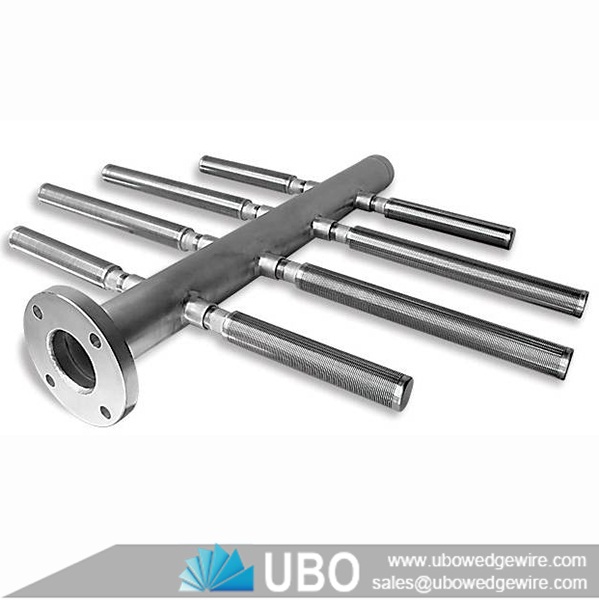

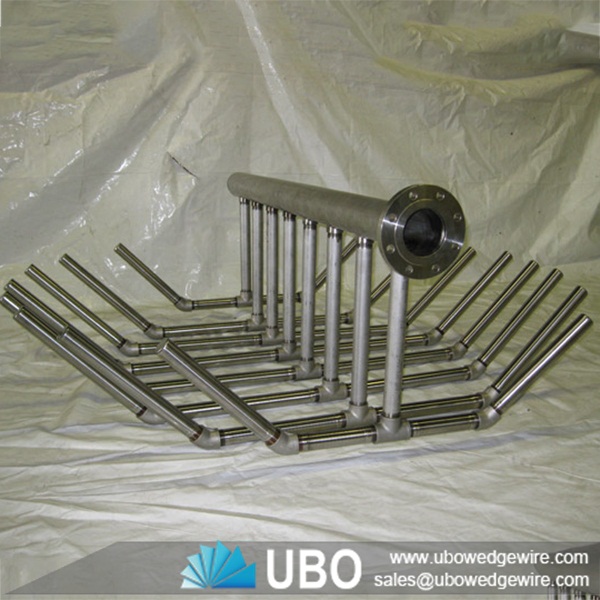

SS316 wedge wire screen Header laterals for organic substances

More Views

SS316 wedge wire screen Header laterals for organic substancesSS316 wedge wire screen Header laterals for organic substancesSS316 wedge wire screen Header laterals for organic substances

SS316 wedge wire screen Header laterals for organic substances

Category:Profile Screen Laterals
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge wire screen
Application:water pump, in the water-treating equipment, the environmental protection

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS316 wedge wire screen Header laterals for organic substances

Header laterals design is also available for flat bottom vessel distributor or collector application. System can be designed to accommodate side, center, top or bottom inset piping. Integral backwash systems can be designed for any hub and header lateral for fast effective and efficient cleaning. Connections of the laterals can be flanged or threaded. All systems are designed for effective liquid or solid retention in a wide range of applications including exchangers, clay and filtration applications, carbon towers and power plants with water systems.

Application of SS316 wedge wire screen Header laterals for organic substances:

SS316 wedge wire screen Header laterals application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Traditional laterals of SS316 wedge wire screen Header laterals for organic substances:

With the advantage of the wrap wire screens pipe,large flow area, uniform water distribution, high mechanical strength,temperature resistance, pressure resistance, aging resistance,corrosion resistance have been greatly improved. Even if the branch pipe bending occurs, the resin still can’t flow out.Stainless steel wire slot size can be designed according to the resin size.

SS316 wedge wire screen Header laterals for organic substances

Specifications of SS316 wedge wire screen Header laterals for organic substances:

SS316 wedge wire screen Header laterals for organic substances

Screen Size
ID
OD
Female thread dismeter
in
mm
in
mm
in
mm
in
mm
2
51
2
51
25/8
67
23/4
70
3
76
3
76
35/8
92
33/4
95
4
102
4
102
45/8
117
43/4
121
5
127
5
127
55/8
143
53/4
146
6
152
6
152
65/8
168
7
178
8
203
8
203
85/8
219
91/4
235
10
254
10
254
103/4
273
113/8
289
12
305
12
305
123/4
324
133/8
340
14
356
13 1/8
333
14
356
-
-
16
406
15
381
16
406
-
-
20
508
18 3/5
476
20
508
-
-

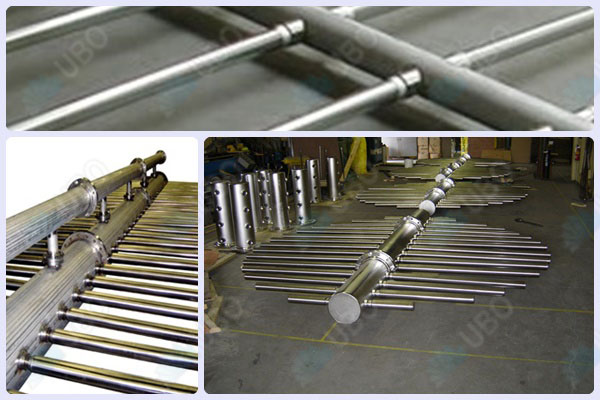

Packaging and Transportation of SS316 wedge wire screen Header laterals for organic substances:

SS316 wedge wire screen Header laterals for organic substances
