water wedge wire filters screen nozzle
Category: | Filter Nozzle |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen nozzle |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of water wedge wire filters screen nozzle

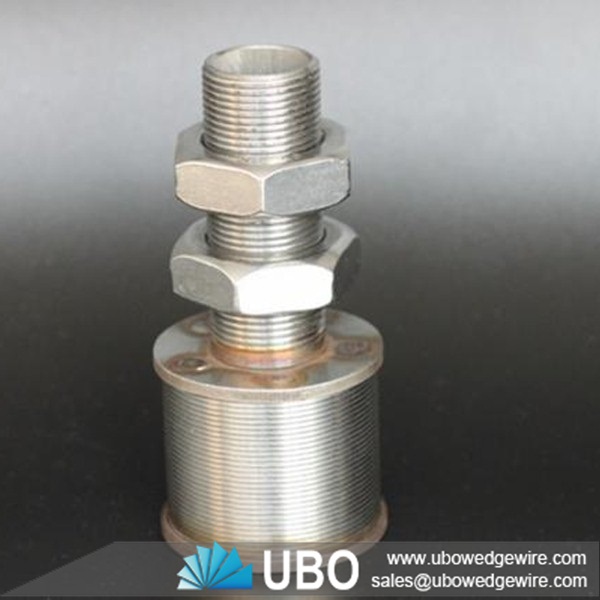

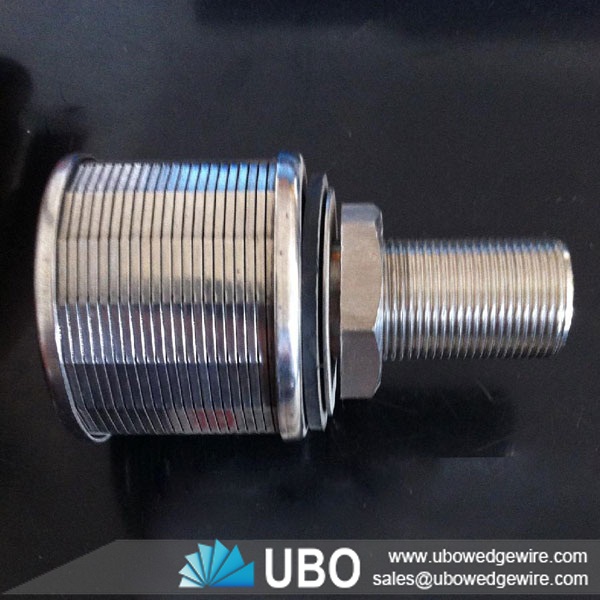

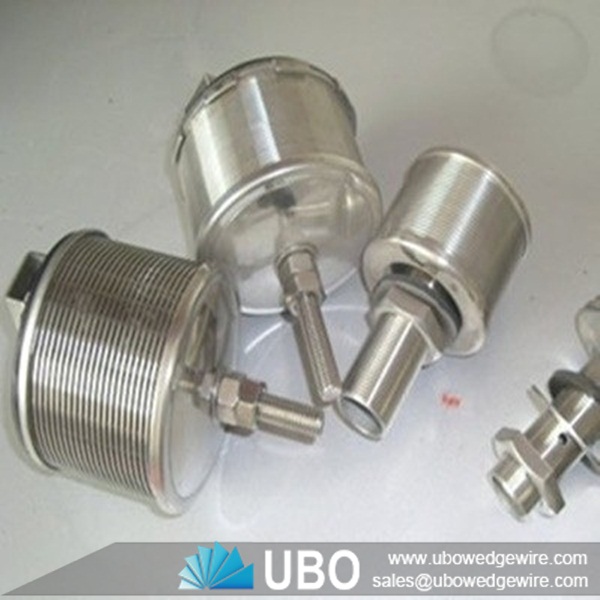

Water wedge wire filters screen nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.
Application of water wedge wire filters screen nozzle
Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.
Advantages of water wedge wire filters screen nozzle
1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.
Specifications of water wedge wire filters screen nozzle:
No. |
Type |
Ton |
Slot Opening |
Size |
0.2-0.25mm slot opening Area of through-flow mm2(reference) |
|||
D |
L1 |
L |
M |
|||||
1 |
SH45-1-C |
0.5 |
0.2-0.5 |
45 |
45 |
95 |
24 |
500 |
2 |
SH53-2-B |
1 |
0.2-0.5 |
53 |
45 |
100 |
24 |
570 |
3 |
SH53-2-C |
1.5 |
0.2-0.5 |
53 |
50 |
110 |
32 |
700 |
4 |
SH57-3-B |
2 |
0.2-0.5 |
57 |
45 |
110 |
32 |
600 |
5 |
SH70-4-B |
3 |
0.2-0.5 |
70 |
55 |
120 |
32 |
1000 |
