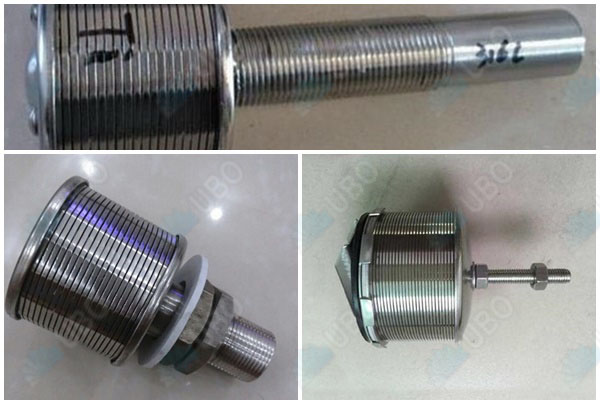

Details of v-wire screen nozzle

The v-wire screen nozzle in a nozzles a slot tube. Nozzles are closed on one side and have a threaded fitting on the other. The flow is always out to in. Standard nozzles are 50 mm in diameter, all having a flow-out-to-in (FOTI) filtration.
Principl:
Nozzles can be used for liquid/solid or gas/solid separation, or media retention (sand, catalyst, resin, ....).The nozzles are mounted on a support plate (as shown in figure). The dimensions and the distribution of the nozzles on the support plate can be altered to obtain an optimized flow distribution.

Application of v-wire screen nozzle

Above mentioned designs are used widely in down-flow reactors for liquid/solid or gas/solid separation. The liquid or gas can flow through the nozzles while the solids are retained in the vessel by the nozzles

Features of v-wire screen nozzle

Great mechanical strength
Highly resistant to abrasivity and vibration.
It can hold more pressure and temperature compared to the perforated sheet screen.
Longer screen life.
Larger useful area than that of the standard perforated sheet screen.
The wedge wire screen can be used in any of INOXPA filters.
The wedge wire screen is assembled to the filter body by clamp, this allows an easy and quick disassembling for cleaning.

               v-wire screen nozzle

Specifications of v-wire screen nozzle:

Specification:Stainless steel Water treatment system filter nozzle are widely used in various industries, especially suitable for water treatment or liquid filtration.The main part of the nozzle is stainless steel wedge wire screen . It’s a new type filter component。
Stainless steel Water treatment system filter nozzle has a long life. The precise filter ratings are from 20 microns. It is made by welding with profile wire on every connection spots.

  No. (mm)TYPE OD (mm)  ID (mm) Support wire Number Filter direction
1 SRD25.4 25.4 18.6 12 FOTI
2 SRD 33 33 24 8 FOTI
3 SRD 37 37 28 8 FOTI
4 SRD 40 40 31 8/10 FOTI/FITO
5 SRD 45 45 36 10/12 FOTI/FITO
6 SRD 48 48 38 12 FOTI/FITO
7 SRD 60 60 51 12 FOTI/FITO
8 SRD 70 70 61 12/18 FOTI/FITO
9 SRD 85 85 76 18 FOTI/FITO
10 SRD 110 110 101 24 FOTI/FITO
11 SRD120 120 111 24 FOTI/FITO
