v shap screen nozzle
Category: | Filter Nozzle |
---|---|
Material: | stainless steel 304,316,316L |
Properties: | wedge wire scren |
Application: | water filtration,liquid filtration,industry filtration |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

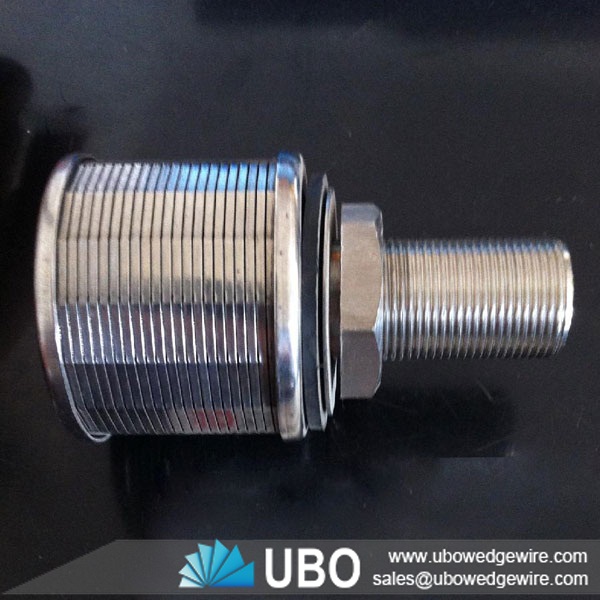

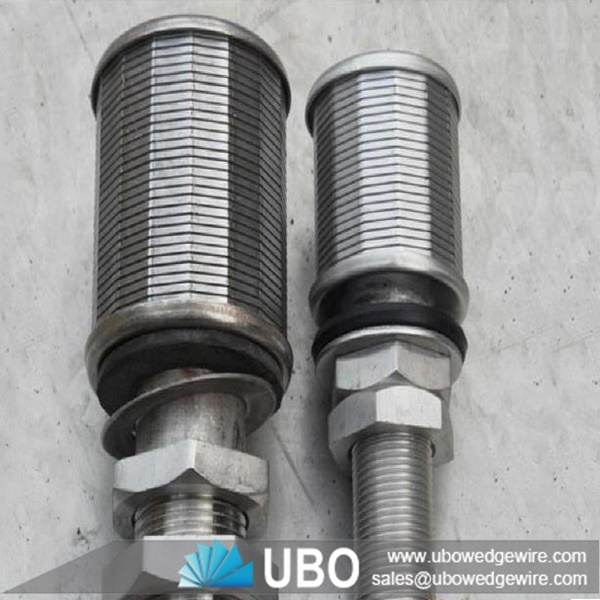

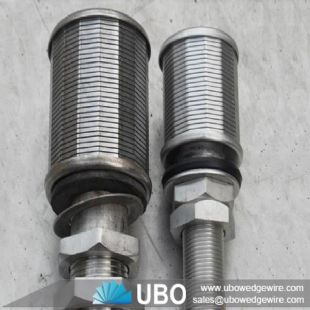

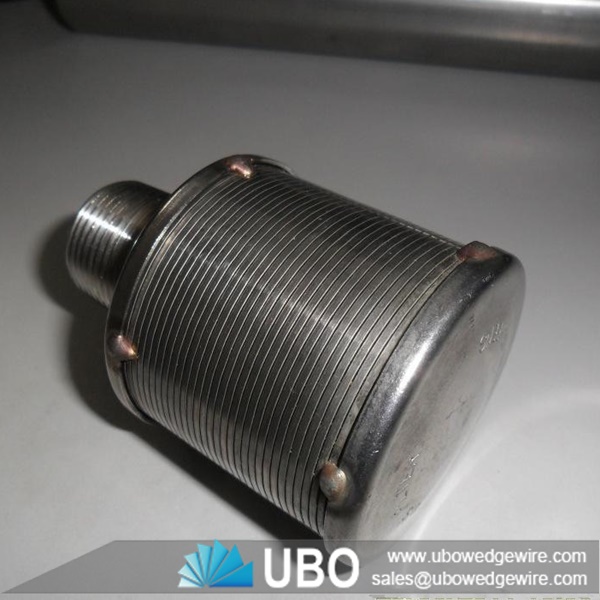

Details of v shap screen nozzle
The v shap screen nozzle as the important parts used in the water treatment equipment for power plant,waste water processes, the Vee shape wire are stainless steel AISI 316L.Slot size from 0.2 to 0.25mm.
We can manufacture single wedge wire screen nozzle,double wedge wire nozzle,also used in the lon exchanger.
Advantages of v shap screen nozzle
1·Type 316L stainless steel construction.
2·Continuous slot design provides increased open area for better collection.
3·Standard nozzles are 2in./51mm diameter and can be attached to the plate either with threaded end fittings or with“L”bolts.
4·Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5·Wedge wire screen is highly resistant to plugging.
6·Choice of either 3/4”NPT or 1”NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7·Less expensive than other screen of equal efficiency.
Usage of v shap screen nozzle
used widely in down-flow reactors for liquid/solid or gas/solid separation. The liquid or gas can flow through the nozzles while the solids are retained in the vessel by the nozzles.
Specifications of v shap screen nozzle:
Material:stainless steel
Type:filter nozzle
Thread specification:as your request
Type |
Slot |
Dimension |
Flow area |
|||
D |
H |
L |
M |
|||
A |
0.25 |
Φ45 |
40 |
90 |
M20 |
450m3 |
A1 |
0.25 |
Φ45 |
40 |
90 |
M24 |
500m3 |
(flow 0.5T/H) |
||||||
B |
0.25 |
Φ53 |
45 |
100 |
M24 |
570m3 |
(flow 1T/H) |
||||||
B1 |
0.25 |
Φ53 |
45 |
100 |
M32 |
600m3 |
(flow 1.5T/H) |
||||||
B3 |
0.25 |
Φ57 |
55 |
110 |
M32 |
800m3 |
(flow 2T/H) |
||||||
C |
0.2-0.5 |
Φ70 |
45 |
110 |
M32 |
800m3 |
C1 |
0.2-0.5 |
Φ70 |
55 |
120 |
M32 |
1000m3 |
