Quality Wedge Wire Screen Manufacturer in China

sparge filter

More Views

sparge filtersparge filtersparge filter

sparge filter

Category:Filter Nozzle
Material:stainless steel304,316,316L
Properties:wedge wire screen
Application:water filtration,liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

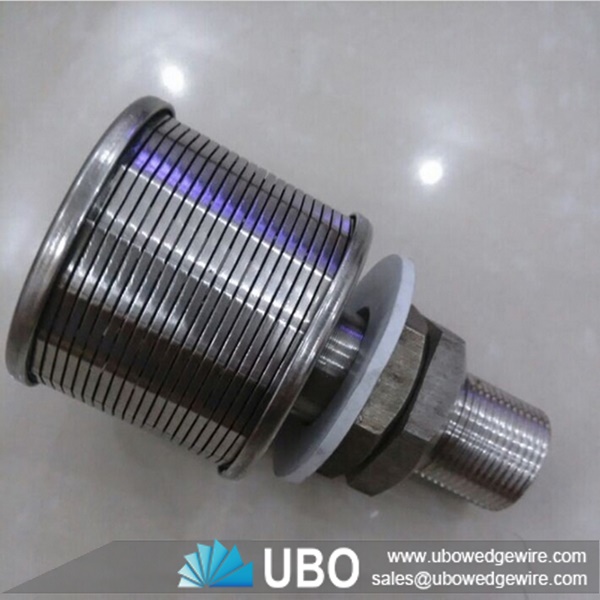

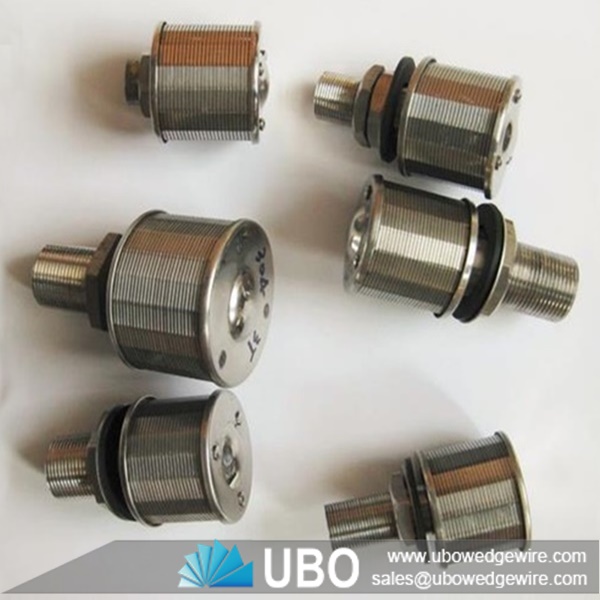

Details of sparge filter

UBO supply sparge filter, in order to make the slot v-shaped.It can stop the impurities very well.
The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities
After work for a period of time, the filter can be back flush.It can use for many times.
Filtering direction from outside to inside (FOTI)

sparge filter

Advantages of sparge filter

High strength;

Good resistance to abrasion and corrosion;

High rigidity;

Good in filtration and fluidity;

Flat panel surface;

Fairly well precision and roundness;

Long work time.

Easy to clean and back wash;

Uniform gap.


Use of sparge filter

The wedge wire screen nozzle/sand filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

       sparge filter

Specifications of sparge filter:

Material:stainless steel,

Type:filter cap

sparge filter


No.



Type



Ton



Slot

Opening



Size

0.2-0.25mm slot opening Area of through-flow mm2(reference)

D

L1

L

M

1

SH45-1-C

0.5

0.2-0.5

45

45

95

24

500

2

SH53-2-B

1

0.2-0.5

53

45

100

24

570

3

SH53-2-C

1.5

0.2-0.5

53

50

110

32

700

4

SH57-3-B

2

0.2-0.5

57

45

110

32

600

5

SH70-4-B

3

0.2-0.5

70

55

120

32

1000

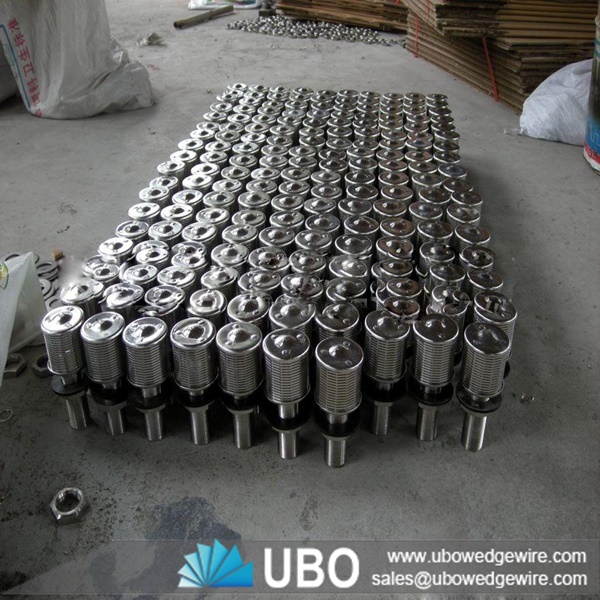

Packaging and Transportation of sparge filter:

transport
