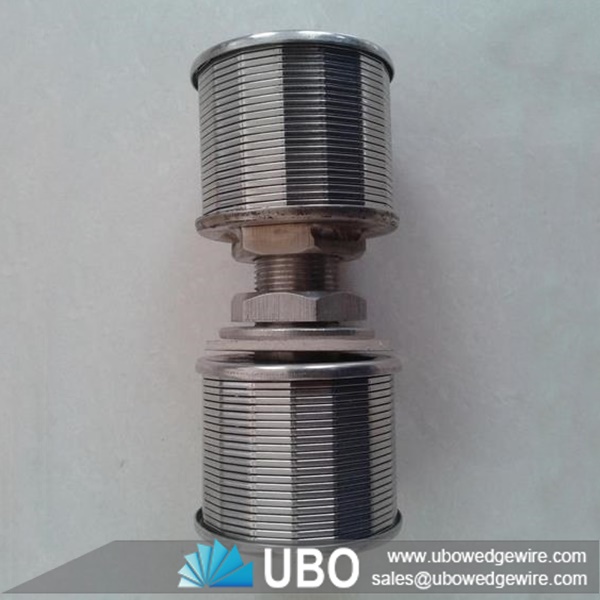

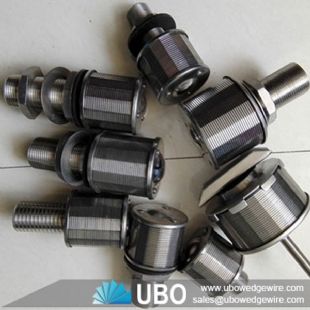

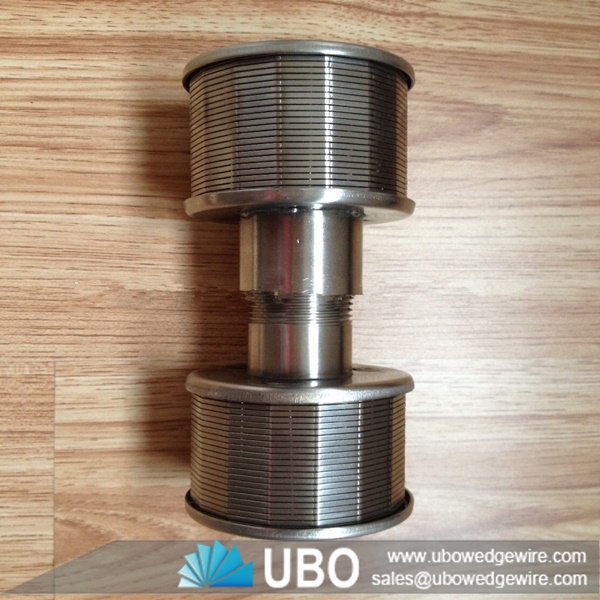

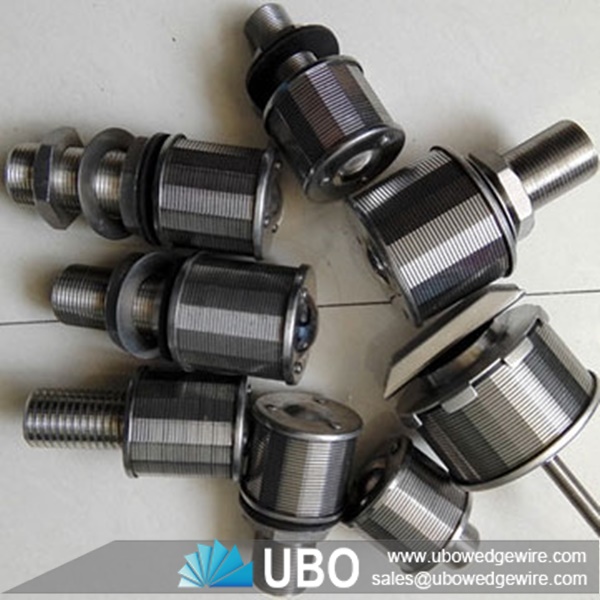

handle wedge wire  screen nozzle

More Views

handle wedge wire  screen nozzlehandle wedge wire  screen nozzlehandle wedge wire  screen nozzle

handle wedge wire screen nozzle

Category:Filter Nozzle
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:water filtration,liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of handle wedge wire screen nozzle

We use wedge-shaped profile wire in order to make the slot v-shaped.It can stop the impurities very well.The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities.After work for a period of time, the filter can be back flush.It can use for many times.

Advantages of handle wedge wire  screen nozzle

Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

Uses of handle wedge wire  screen nozzle

The wedge wire screen nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

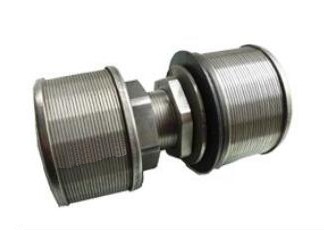

        handle wedge wire  screen nozzle

Specifications of handle wedge wire screen nozzle:

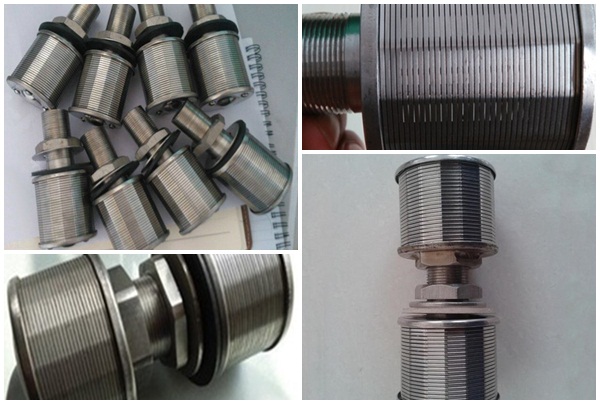

handle wedge wire  screen nozzle

D L L1 L2 Slot Size d Flow Area mm2
45 110-170 34 34 0.2-0.25 M24 390-493
45 110-170 44 44 0.2-0.25 M24 551-690
53 120-180 34 34 0.2-0.25 M27 453-597
53 120-180 44 44 0.2-0.25 M30 680-710
57 120-180 50 50 0.2-0.25 M32 800-1000
60 120-180 50 50 0.2-0.25 G1" 950-1188

Packaging and Transportation of handle wedge wire screen nozzle:

Packing
