Wedge wire screen nozzle filter strainer for industry filtration system

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire screen nozzle filter strainer for industry filtration system

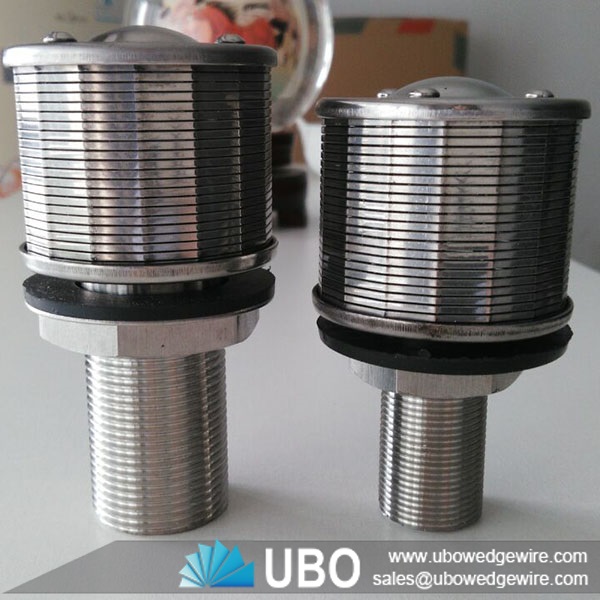

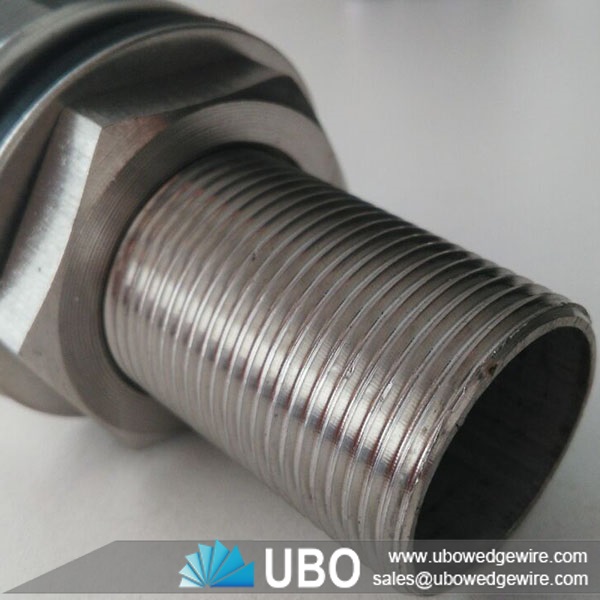

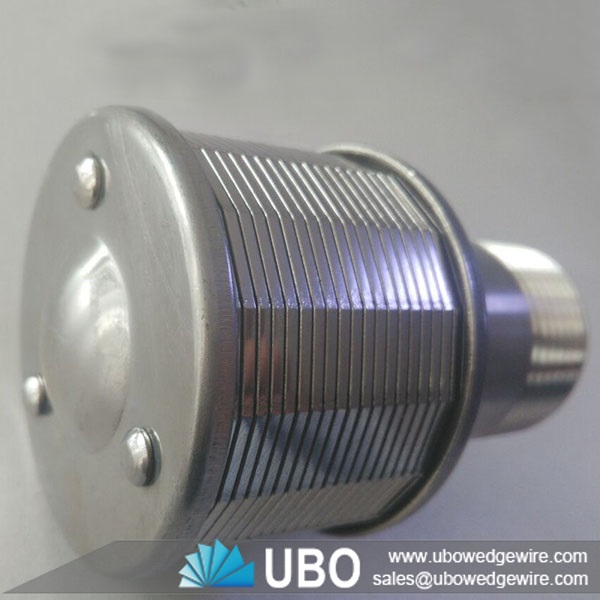

Wedge wire screen nozzle filter strainer is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Wedge wire screen nozzle filter strainer for industry filtration system

Advantages of Wedge wire screen nozzle filter strainer for industry filtration system

Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

Application of Wedge wire screen nozzle filter strainer for industry filtration system

Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

Wedge wire screen nozzle filter strainer for industry filtration system

Wedge wire screen nozzle filter strainer for industry filtration system

Specifications of Wedge wire screen nozzle filter strainer for industry filtration system:

Wedge wire screen nozzle filter strainer for industry filtration system

NO.



    Type



 Ton



  Slot Opening



          Size

  0.2-0.25mm slot opening

    Area of through-flow

    mm²(reference)

  D

  L1

   L

 M



1

 UBO-0.5

 0.5

 0.2-0.5

  45

  45

  95

 24

      500

2

 UBO-1.0

  1

 0.2-0.5

  53

  45

  100

 24

      570

3

 UBO-1.5

 1.5

 0.2-0.5

  53

  50

  110

 32

      700

4

 UBO-2.0

  2

 0.2-0.5

  57

  45

  110

 32

      600

5

 UBO-3.0

  3

 0.2-0.5

  70

  55

  120

 32

      1000

Packaging and Transportation of Wedge wire screen nozzle filter strainer for industry filtration system:

Wedge wire screen nozzle filter strainer for industry filtration system
