Wedge Wire Type Wedge Wire Screen Filter Nozzle

More Views

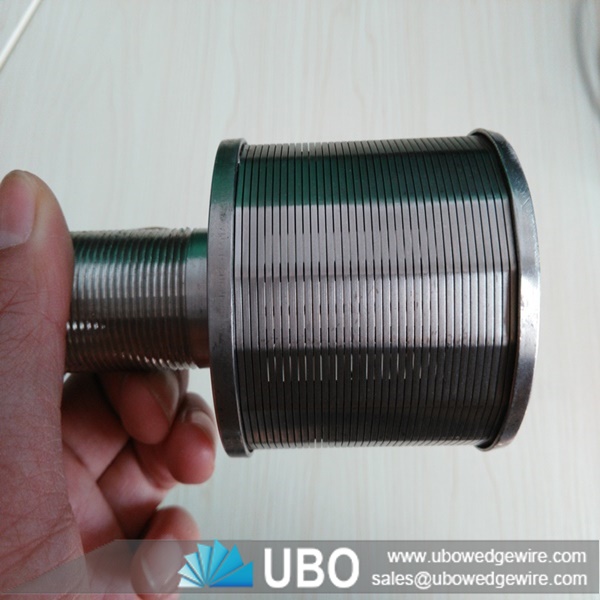

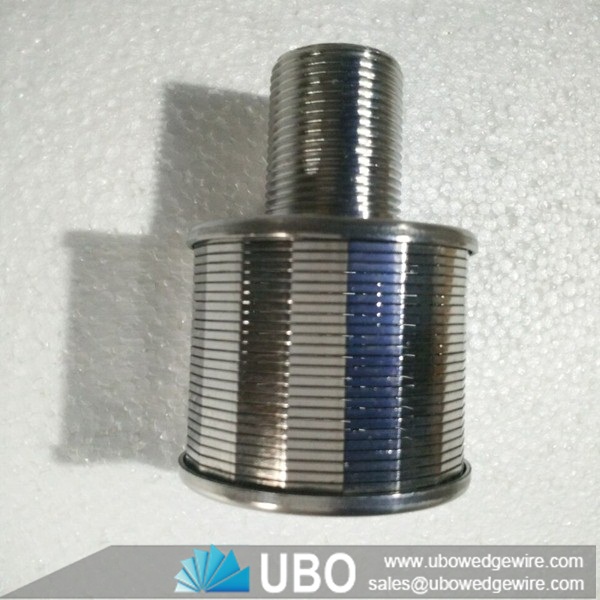

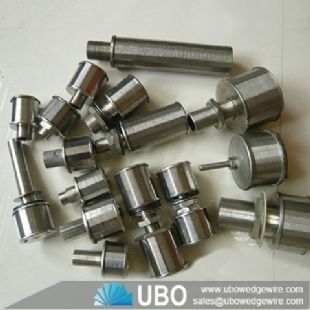

Wedge Wire Type Wedge Wire Screen Filter NozzleWedge Wire Type Wedge Wire Screen Filter NozzleWedge Wire Type Wedge Wire Screen Filter Nozzle

Wedge Wire Type Wedge Wire Screen Filter Nozzle

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Type Wedge Wire Screen Filter Nozzle

Wedge Wire type wedge wire screen filter nozzles are made from V shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded, with an unique welding process. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. The pitch of winding gives different spacing between two adjacent turns of wire.


Wedge Wire type wedge wire screen filter nozzle have the features of great strength, precision, long service life and a wide range of applications in the field of process and engineering such as waste water treatment, sugar juice filtration, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, water, fuels, paints, food products, liquid cooling agents, and chemicals etc.



Advantages of Wedge Wire Type Wedge Wire Screen Filter Nozzle



Wedge Wire screen has a continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone (the aquifer)

A uniform and efficient well development due to the continuous slot opening.
A "V" shaped profile wire which avoids clogging and ensures an uninterrupted flow.



Applications of Wedge Wire Type Wedge Wire Screen Filter Nozzle



- De-watering;

- Separating;

- Filtering;

- Straining;

- Sizing;

- Drying;

- Media retention

- Water intake;

Wedge Wire Type Wedge Wire Screen Filter Nozzle

Specifications of Wedge Wire Type Wedge Wire Screen Filter Nozzle:

Wedge Wire Type Wedge Wire Screen Filter Nozzle


No.



Type



Ton



Slot

Opening



Size

0.2-0.25mm slot opening Area of through-flow mm2(reference)

D

L1

L

M

1

SH45-1-C

0.5

0.2-0.5

45

45

95

24

500

2

SH53-2-B

1

0.2-0.5

53

45

100

24

570

3

SH53-2-C

1.5

0.2-0.5

53

50

110

32

700

4

SH57-3-B

2

0.2-0.5

57

45

110

32

600

5

SH70-4-B

3

0.2-0.5

70

55

120

32

1000

Wedge Wire Type Wedge Wire Screen Filter Nozzle

Packaging and Transportation of Wedge Wire Type Wedge Wire Screen Filter Nozzle:

packing
