Pump intake screens

More Views

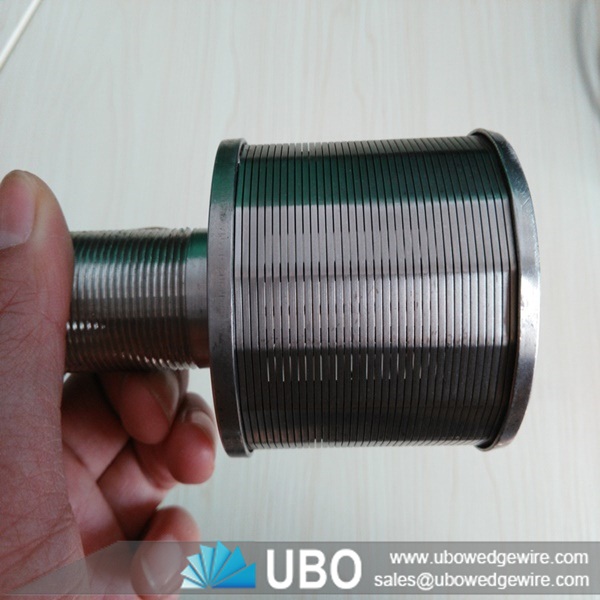

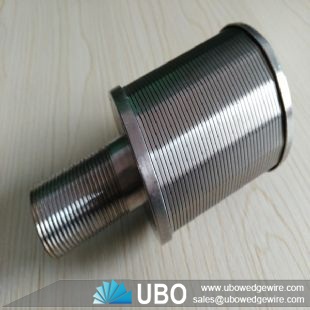

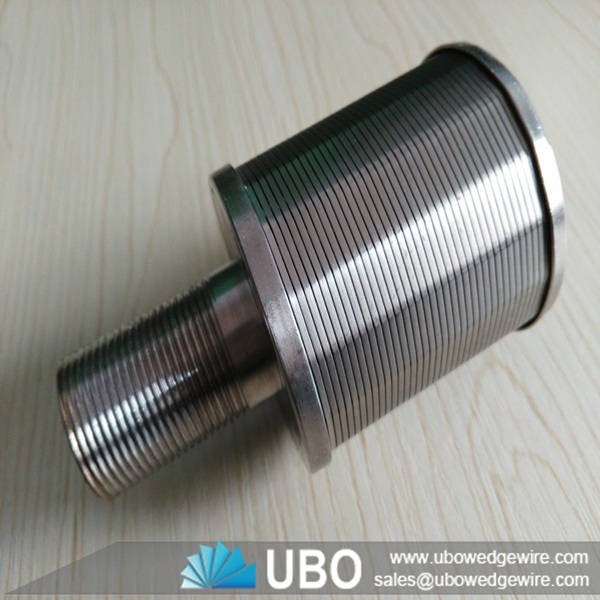

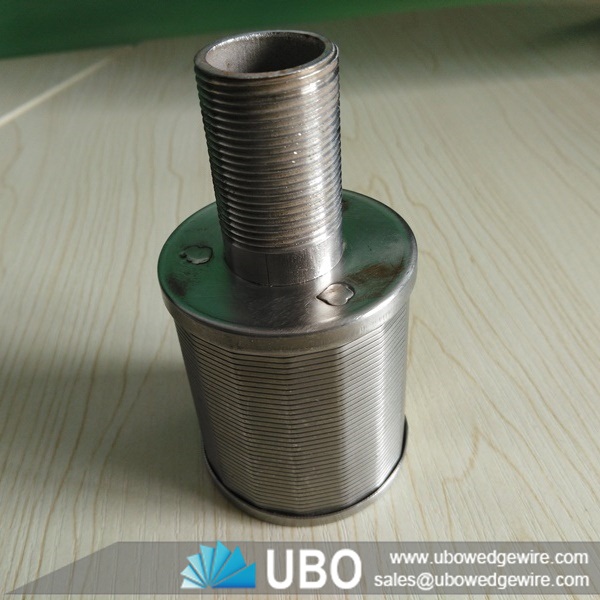

Pump intake screensPump intake screensPump intake screens

Pump intake screens

Category:Filter Nozzle
Material:stainless steel 304,316,316L
Properties:wedge wire
Application:Liquid Filter,water filter,industry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Pump intake screens

Pump Intake Screens (filter nozzle)can filter a liquid or gas and retain a filtering medium (sand, catalyst, resin, zeolite, activated carbon, etc). The principle consists of distributing nozzles over a vessel floor so as to control the flow during collection or distribution.

Filter nozzles provide an excellent economic compromise in combining the benefits of a completely welded structure to withstand very high stress, provide an anti-clogging surface and excellent corrosion resistance.

Advantages of Pump Intake Screens

Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

Application of Pump Intake Screens

The filter wedge wire screen nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

        Pump Intake Screens.

Specifications of Pump intake screens:

Raw material : stainless steel 304,304L,316,316L,Hastelloy alloy
Outer diameter: min 30mm.
Wedge wire screen length: 30-100mm
Screen slot :0.02-3mm
Screw thread: as you request

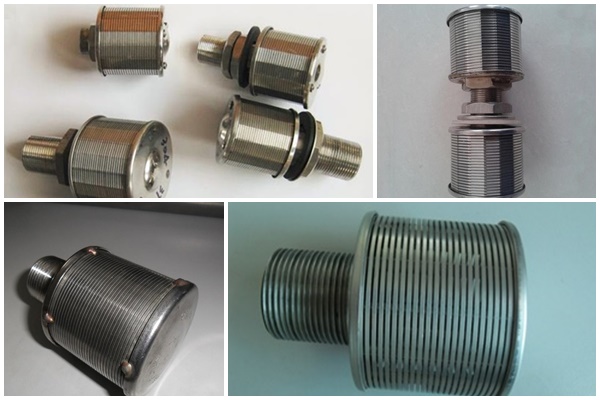

screen nozzle

No.



Type



Ton



Slot

Opening



Size

0.2-0.25mm slot opening Area of through-flow mm2 (reference)

D

L1

L

M

1

TYS45-1-C

0.5

0.2-0.5

45

45

95

24

500

2

TYS53-2-B

1

0.2-0.5

53

45

100

24

570

3

TYS53-2-C

1.5

0.2-0.5

53

50

110

32

700

4

TYS57-3-B

2

0.2-0.5

57

45

110

32

600

5

TYS70-4-B

3

0.2-0.5

70

55

120

32

1000

Packaging and Transportation of Pump intake screens:

packing
