Industrial Water Softener System nozzles filter

More Views

Industrial Water Softener System nozzles filterIndustrial Water Softener System nozzles filterIndustrial Water Softener System nozzles filter

Industrial Water Softener System nozzles filter

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Filter Nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Industrial Water Softener System nozzles filter

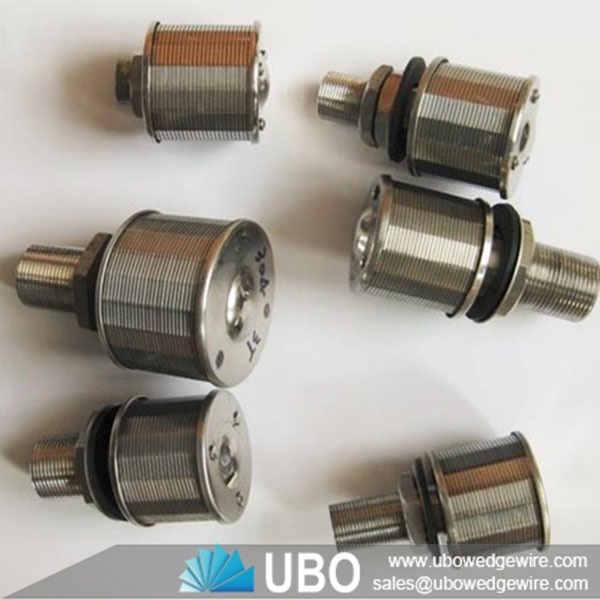

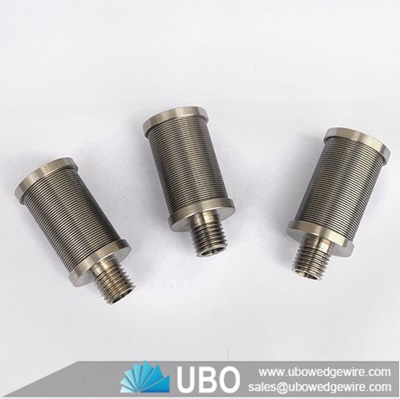

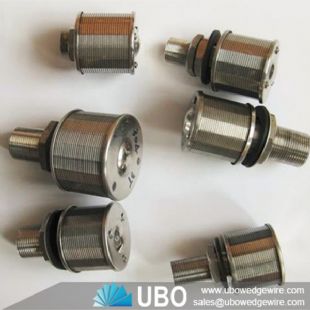

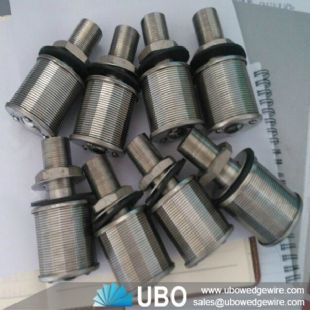

The water flow rate screen nozzle a screen pipe. Nozzles are closed on one side and have a threaded fitting on the other. The screen nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium.One rubber shim , one steel shim and two thin nuts of the same material for a nozzle.

Application for Industrial Water Softener System nozzles filter:


The stainless wedged screen nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Features for Industrial Water Softener System nozzles filter:


Great mechanical strength
Highly resistant to abrasivity and vibration.
It can hold more pressure and temperature compared to the perforated sheet screen.
Longer screen life.
Larger useful area than that of the standard perforated sheet screen.
The wedge wire screen can be used in any of INOXPA filters.
The wedge wire screen is assembled to the filter body by clamp, this allows an easy and quick disassembling for cleaning.
It is possible to clean the wedge wire screen with a reversed flow (back flushing).

Advantages for Industrial Water Softener System nozzles filter:

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Industrial Water Softener System nozzles filter

Specifications of Industrial Water Softener System nozzles filter:

Industrial Water Softener System nozzles filter

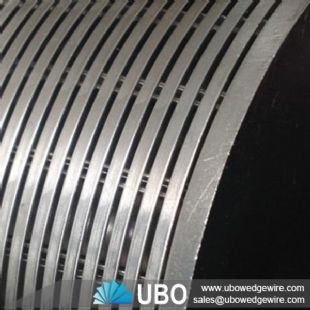

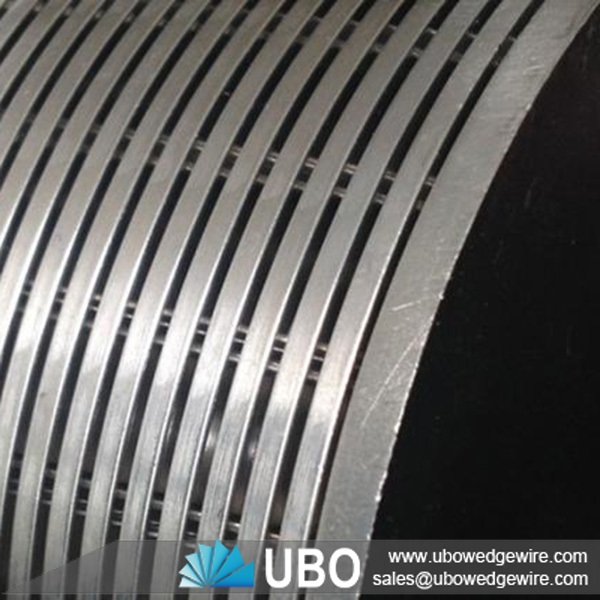

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Industrial Water Softener System nozzles filter:

Industrial Water Softener System nozzles filter
