At the heart of many robust filtration systems lies a critical component: the filter nozzle. But what exactly is a filter nozzle, and why is it so important?

If you're looking to understand how these essential devices work, their various types, and how they contribute to optimized operations, you've come to the right place. As a leading manufacturer of stainless steel filter nozzles, Hebei YUBO Filtration Equipment Co.,Ltd.（Hereinafter referred to as “YUBO”. is here to shed light on this vital technology.

Defining the Filter Nozzle: The Gatekeeper of Purity

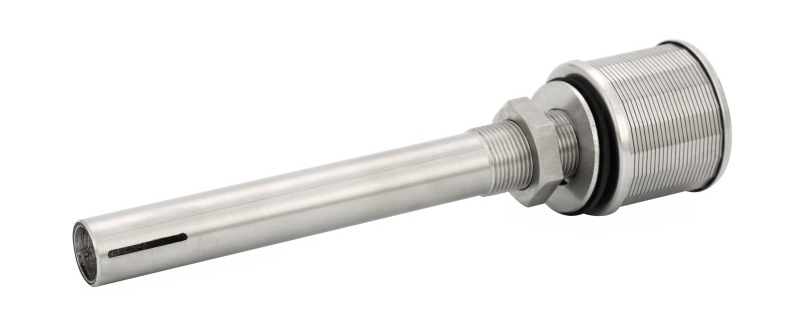

A filter nozzle, often referred to as a screen nozzle or strainer nozzle, is a specially designed filtration component used to retain media (like sand, activated carbon, ion exchange resins) or to directly filter particulate matter from a liquid or gas stream. Think of it as a highly engineered sieve, precisely constructed to allow fluids to pass through while preventing the passage of solids.
These nozzles are typically installed in arrays on a collector plate or header/lateral systems within pressure vessels, gravity filters, or other processing equipment. Their primary function is to ensure uniform flow distribution and collection during both service and backwash cycles.

How Does a Filter Nozzle Work? The Mechanics Explained

The operational principle of a filter nozzle is straightforward yet highly effective:

1.Filtration (Service Cycle): During the service cycle, the process fluid (e.g., water) flows downwards (or in the designated direction) through the media bed. The filter nozzles, positioned at the bottom of the bed, allow the filtered fluid to pass through their fine slots or perforations while retaining the media particles and any trapped solids.

2.Backwash Cycle: Over time, the filter media becomes clogged with impurities. To clean it, the flow is reversed. Clean water or air (or a combination) is forced upwards through the filter nozzles. This backflow agitates the media bed, dislodging trapped particles, which are then flushed out of the system. The design of the nozzle ensures even distribution of the backwash fluid for efficient cleaning without media loss.

Key Features and Benefits of High-Quality Filter Nozzles (Especially Stainless Steel)

While filter nozzles can be made from various materials, stainless steel filter nozzles (like those manufactured by YUBO) offer distinct advantages:

• Superior Strength and Durability: Stainless steel provides exceptional mechanical strength, resisting collapse or damage under high pressures and temperatures.

• Corrosion Resistance: Grades like 304, 316, and 316L stainless steel offer excellent resistance to a wide range of corrosive chemicals and environments, ensuring a long service life.

• Precise Slot Openings: Advanced manufacturing techniques, such as those used for wedge wire filter nozzles (also known as Johnson screen nozzles), allow for highly accurate and uniform slot sizes, ensuring consistent filtration performance.

• Non-Clogging Design: Wedge wire construction features a V-shaped wire profile, creating slots that widen inwardly. This design minimizes clogging and allows for efficient backwashing.

• High Open Area: Maximizes flow capacity while maintaining structural integrity.

• Temperature Resistance: Suitable for applications involving high-temperature fluids.

• Low Maintenance: The robust construction and non-clogging design reduce the need for frequent maintenance and replacement.

• Hygienic Properties: Stainless steel is easy to clean and sanitize, making it ideal for food, beverage, and pharmaceutical applications.


Common Types of Filter Nozzles

Filter nozzles come in various designs, primarily categorized by their construction and material:

• Wedge Wire Filter Nozzles (Johnson Screen Nozzles): These are a popular choice, constructed from V-shaped wires welded to support rods. They offer high open area, precise slot control, and excellent anti-clogging properties. YUBO specializes in these high-performance stainless steel wedge wire nozzles.

• Perforated Plate Nozzles: Made from perforated metal sheets, often with a backing mesh for finer filtration.

• Plastic Filter Nozzles: Suitable for less demanding applications or specific chemical compatibilities, but generally less robust than stainless steel.

• Material Options: While we focus on stainless steel (SS304, SS316, SS316L, Duplex), other materials like plastics (PP, PVDF, ABS) are available in the market for specific needs.

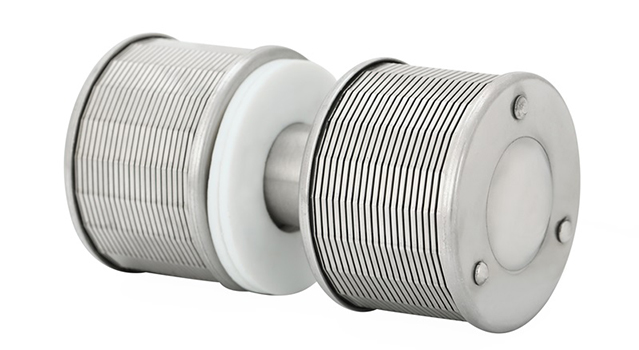

Nozzles also vary by their connection type (e.g., threaded, flanged, single or double head) and flow characteristics.

Diverse Applications: Where are Filter Nozzles Used?

The versatility of filter nozzles makes them indispensable across numerous industries:

• Water Treatment: Municipal drinking water, industrial process water, desalination.

• Wastewater Treatment: Tertiary filtration, sludge dewatering.

• Power Generation: Condensate polishing, cooling tower filtration.

• Oil & Gas: Produced water treatment, refinery processes.

• Chemical Processing: Catalyst retention, product purification.

• Pulp & Paper: White water filtration.

• Food & Beverage: Sugar refining, brewery applications, juice filtration.

• Mining & Minerals: Dewatering, solids recovery.

• Ion Exchange Systems: Retaining ion exchange resins.

• Sand Filters & Carbon Filters: Essential components in these common filter types.


Choosing the Right Filter Nozzle for Your Application

Selecting the appropriate filter nozzle involves considering several factors:

• Flow rate requirements

• Particle size to be retained

• Operating pressure and temperature

• Chemical compatibility of the fluid

• Media type (if applicable)

• Backwash requirements


Consulting with an experienced filter nozzle manufacturer like YUBO can help you determine the optimal nozzle design, material, and slot size for your specific needs.

Why Partner with YUBO for Your Filter Nozzle Needs?

At YUBO, we are more than just a supplier; we are your partners in filtration excellence. We specialize in the design and manufacture of high-quality stainless steel filter nozzles, including robust wedge wire screen nozzles.

• Expertise & Experience: Years of experience in diverse industrial applications.

• Quality Manufacturing: Precision engineering and stringent quality control.

• Custom Solutions: We can tailor nozzles to your exact specifications.

• Global Reach: As a foreign trade operator, we serve clients worldwide.

• Dedicated Support: Our team is ready to assist you from selection to installation.

Filter nozzles are unsung heroes in countless industrial processes, ensuring purity, protecting downstream equipment, and optimizing efficiency. Understanding their function and the benefits of high-quality materials like stainless steel is crucial for achieving reliable and cost-effective filtration.
