1. Particle Size Distribution of Feed Material

The particle size of the processed material is the primary factor when selecting slot size.

Before choosing a curved screen plate, operators should understand:

• Target separation size

• Minimum particle size in the feed

• Particle size distribution

• Percentage of fine and coarse particles

A smaller slot opening can improve separation accuracy by retaining finer particles. However, excessively small slots may reduce flow capacity and increase the possibility of screen surface blockage.

A larger slot opening provides better material flow and higher throughput but may allow unwanted particles to pass through.

Therefore, the ideal slot size is not always the smallest possible opening. It should match the actual separation requirement.

2. Screening Application and Material Characteristics

Different industries require different slot size considerations because material properties vary significantly.

Mining and Mineral Processing

For applications such as mineral classification, coal processing, and dewatering, curved screen plates often handle abrasive materials with high solids concentration.

Important considerations include:

• Wear resistance

• Processing capacity

• Slurry concentration

• Particle size range

In these applications, a balanced slot size is often preferred to maintain high throughput while reducing wear.

Food and Chemical Processing

In food, starch, sugar, and chemical applications, separation accuracy and product recovery are usually more important.

A finer slot opening may be selected to:

• Reduce product loss

• Improve separation efficiency

• Maintain consistent product quality

Wastewater Treatment

For wastewater screening applications, slot size selection should consider:

• Suspended solids removal

• Flow variation

• Cleaning requirements

The selected opening should prevent excessive solids passing while maintaining sufficient hydraulic capacity.

3. Flow Capacity and Open Area Requirements

Slot size also has a direct relationship with the open area of a wedge wire curved screen plate.

A larger slot opening generally provides:

• Higher open area

• Better flow capacity

• Lower resistance to material flow

A smaller slot opening provides:

• Higher screening precision

• Better fine particle retention

However, choosing an extremely small slot size may reduce the effective screening area and increase operating pressure.

For this reason, engineers usually evaluate slot size together with:

• Screen dimensions

• Curvature angle

• Feed flow rate

• Material concentration

• Required separation efficiency

The best design is a compromise between throughput and separation performance.

4. Curved Screen Design and Operating Conditions

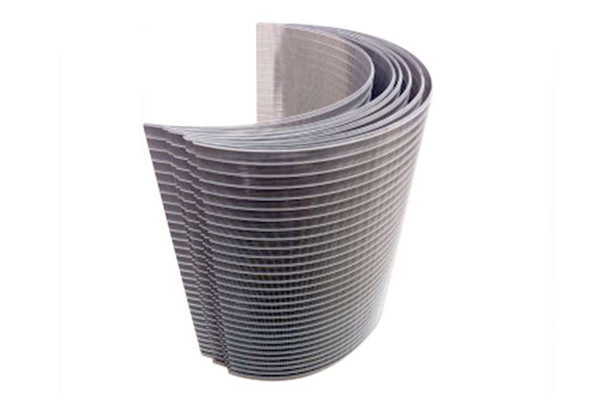

A wedge wire curved screen plate works differently from a flat screen because material flows along a curved surface.

Factors such as:

• Screen curvature

• Feed velocity

• Installation angle

• Gravity and centrifugal forces

• Slurry characteristics

can influence the actual screening performance.

For example, in sieve bend applications, the material moves rapidly across the curved screen surface. The interaction between flow velocity and slot opening determines how effectively liquids and fine particles pass through the screen.

Therefore, slot size selection should always consider the complete screening system rather than only the particle size.

5. Wire Profile and Screen Construction

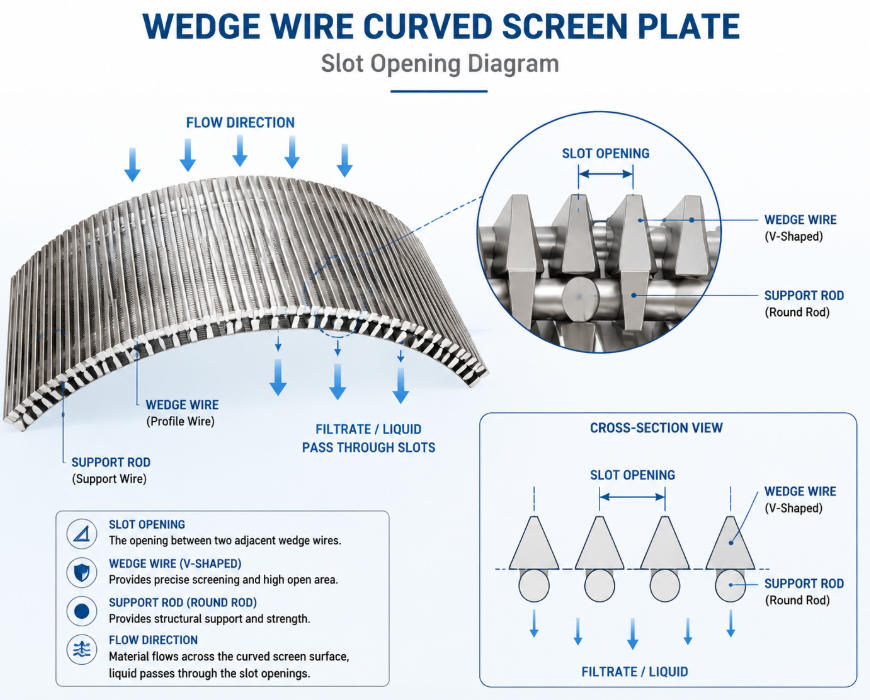

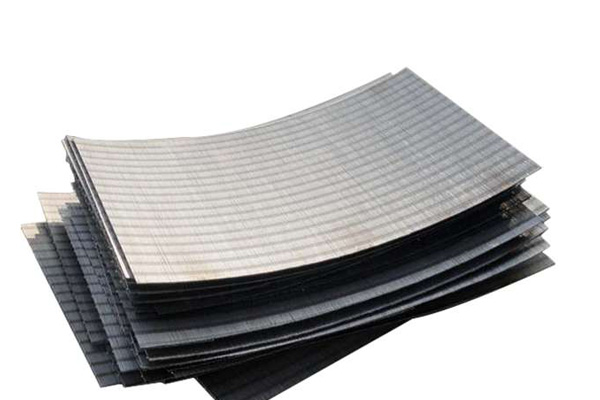

Slot size alone does not determine screen performance. The wedge wire profile and manufacturing design also play important roles.

A high-quality wedge wire curved screen plate typically uses a V-shaped wire structure that provides:

• Continuous slot openings

• Improved anti-clogging performance

• High mechanical strength

• Better cleaning efficiency

Different wire profiles and support structures can influence:

• Wear resistance

• Load-bearing capacity

• Open area percentage

Therefore, slot selection should be combined with proper screen construction design.

Common Mistakes When Selecting Slot Size

Choosing Slot Size Only Based on Particle Diameter

Particle size is important, but it is not the only factor.

Ignoring:

• Material viscosity

• Moisture content

• Feed concentration

• Flow conditions

may lead to poor screening performance.

Selecting the Smallest Possible Slot Opening

A smaller slot does not always mean better performance.

Oversized screening accuracy may result in:

• Lower processing capacity

• Increased cleaning frequency

• Higher operating costs

Ignoring Open Area and Flow Requirements

Some applications require high throughput rather than maximum separation accuracy.

A suitable slot size should maintain both:

• Required separation efficiency

• Sufficient material flow

Step-by-Step Guide to Select the Right Slot Size

A practical selection process includes:

Step 1: Define the separation objective

Determine what particles need to be removed or recovered.

Step 2: Analyze feed material characteristics

Evaluate:

• Particle size distribution

• Moisture level

• Abrasiveness

• Solid concentration

Step 3: Determine required processing capacity

Consider the required flow rate and production volume.

Step 4: Evaluate clogging and maintenance risks

Select a slot size that balances efficiency and cleaning requirements.

Step 5: Choose suitable wedge wire design

Consider:

• Wire profile

• Support structure

• Material grade

• Screen configuration

Through this process, the curved screen plate can achieve better performance and longer service life.

Benefits of Proper Slot Size Selection

Correct slot size selection can provide several advantages:

Improved Screening Efficiency

The screen can effectively separate target particles while reducing unwanted material loss.

Higher Processing Capacity

A suitable opening design allows better material flow and reduces unnecessary resistance.

Lower Maintenance Requirements

Proper slot selection helps minimize:

• Screen blockage

• Frequent cleaning

• Premature replacement

Extended Service Life

Balanced operating conditions reduce mechanical stress and wear on the screen surface.

Frequently Asked Questions

What is the best slot size for a wedge wire curved screen plate?

There is no universal slot size suitable for all applications. The correct choice depends on material characteristics, separation requirements, flow conditions, and equipment design.

Does a smaller slot size always provide better screening results?

Not necessarily. Smaller openings improve separation accuracy but may reduce capacity and increase the risk of blockage.

How does slot size affect wedge wire curved screen performance?

Slot size influences separation efficiency, flow capacity, open area, pressure loss, and maintenance frequency.

Can wedge wire curved screen plates be customized with different slot sizes?

Yes. Wedge wire curved screen plates can be manufactured with customized slot openings, dimensions, materials, and configurations according to specific application requirements.

Selecting the correct wedge wire curved screen plate slot size is a critical step in designing an efficient screening system. The ideal slot opening should consider particle characteristics, processing requirements, flow conditions, and screen construction.

Instead of focusing only on separation accuracy, a successful design should achieve a balance between throughput, reliability, and maintenance cost.

With proper slot size selection, wedge wire curved screen plates can deliver stable performance in demanding applications such as mining, wastewater treatment, food processing, and industrial separation systems.
