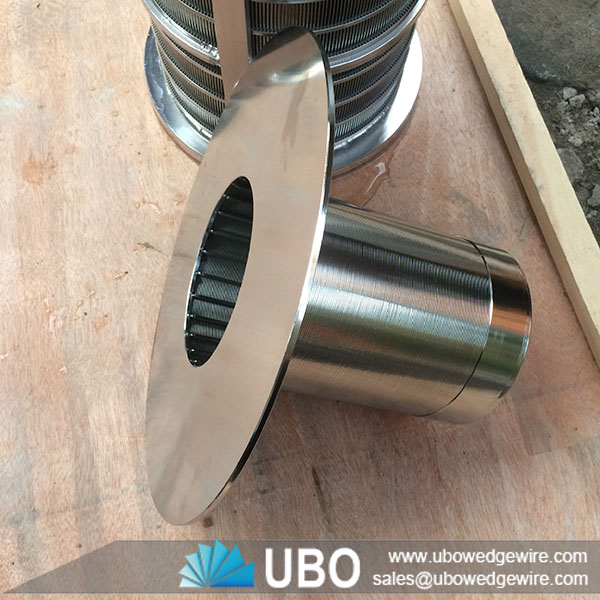

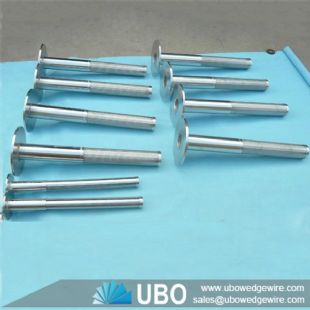

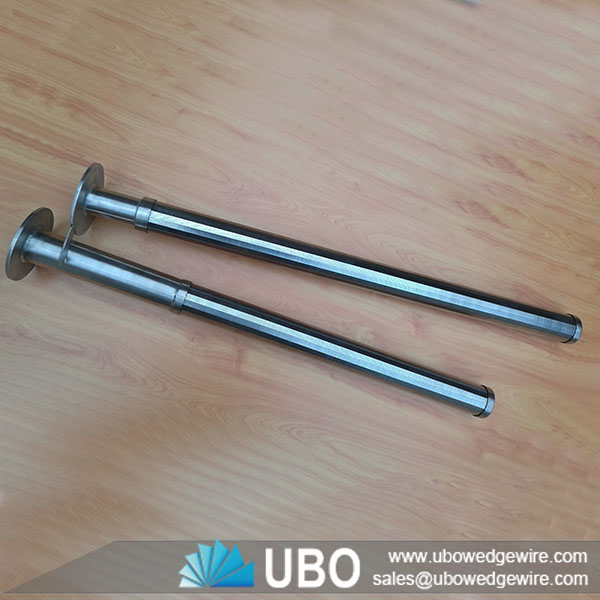

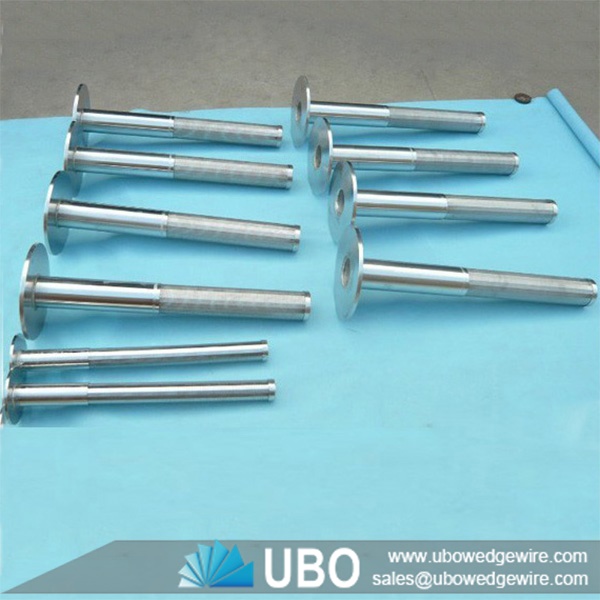

Water resin trap wedge wire screen strainer filter

More Views

Water resin trap wedge wire screen strainer filterWater resin trap wedge wire screen strainer filterWater resin trap wedge wire screen strainer filter

Water resin trap wedge wire screen strainer filter

Category:Resin Traps
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:resin trap
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Water resin trap wedge wire screen strainer filter

Water resin trap wedge wire screen strainer filters are safety devices used on the outlet pipelines of ion exchange units, high-purity water systems and activated carbon and media filters. In many systems a valve failure can allow media to escape from the treatment vessel. Not only is the loss of this media expensive, it can easily cause damages to downstream pumping equipments. Placed inline, resin traps provide reliable protection against such damage.

Water resin trap <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> strainer filter

Water resin trap <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> strainer filter

Application of Water resin trap wedge wire screen strainer filter

Water resin trap wedge wire screen strainer filters are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water, oil or gas filter and other filtration equipment.

Feature of Water resin trap wedge wire screen strainer filter

Continuous slot: support rods and longitudinal wire makes an opening which significantly increase the available opening area, and allow better access to the water flow.

High open area: reduce the water level, thus to save energy consumption. Meanwhile, high open area can make the groundwater enter the screen much slower than other filtration apparatus, which can avoid sand from entering screen due to high pressure, hereby lowering pump wear down.

High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.

Water resin trap <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> strainer filter

Water resin trap <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> strainer filter

Water resin trap <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> strainer filter



The specifications of the Water resin trap wedge wire screen strainer filter:

Water resin trap <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> strainer filter



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

 up to 6 meters.

Diameter

 from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
