SS 304 wedge wire resin trap

More Views

SS 304 wedge wire resin trapSS 304 wedge wire resin trapSS 304 wedge wire resin trap

SS 304 wedge wire resin trap

Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:resin trap
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS 304 wedge wire resin trap

SS 304 wedge wire resin traps are used down stream from ion exchange vessels and serve as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size.

Wedge wire resin trap is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

SS 304 wedge wire resin trap

SS 304 wedge wire resin trap

Feature of SS 304 wedge wire resin trap

1. It has high mechanical strength, can bear large pressure drop.
2. The wedge type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, uedes in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

Application of SS 304 wedge wire resin trap

Wedge wire resin trap are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water,oil or gas filter and other filtration equipment.

SS 304 wedge wire resin trap

SS 304 wedge wire resin trap

Specifications of SS 304 wedge wire resin trap:

SS 304 wedge wire resin trap

Material SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
OD Range 25mm-2000mm
ID Range 19mm-1981mm
Length Range Up to 6000 mm
Slot Range 20 micron to 3000 micron (Tolerance:+-5 micron)

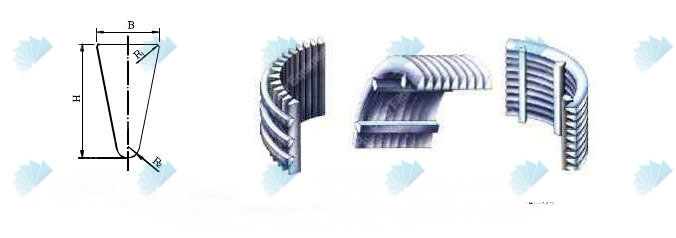

Wedge Wire 0.5x1.5 0.75x1.5 1x2 1.5*2 2x3 2*4
Support Rod 1.5x2.5
2x3
1.5x2.5
2x3
1.5x2.5
2x3
1.8*2.5
2x3
3*5 3*5
Connection Flange and thread
End Type Closed plate
Note Customized According To Special Requirement

Packaging and Transportation of SS 304 wedge wire resin trap:

transportation of SS 304 wedge wire resin trap
