AISI 304 wedge wrapped wire screen resin trap strianer for water filter

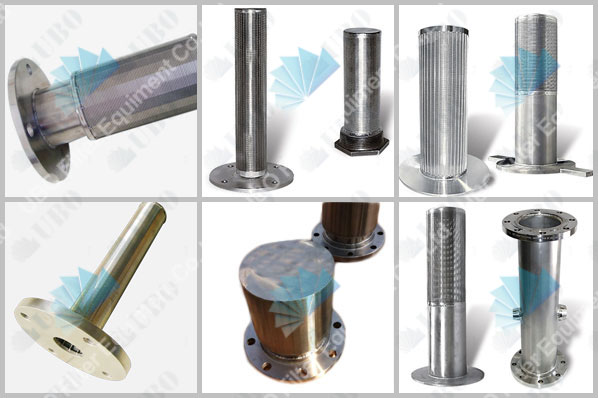

More Views

AISI 304 wedge wrapped wire screen resin trap strianer for water filterAISI 304 wedge wrapped wire screen resin trap strianer for water filterAISI 304 wedge wrapped wire screen resin trap strianer for water filter

AISI 304 wedge wrapped wire screen resin trap strianer for water filter

Category:Resin Traps
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:resin trap
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the AISI 304 wedge wrapped wire screen resin trap strianer for water filter

UBO AISI 304 wedge wrapped wire screen resin trap strianer provide a high percentage of open area thus minimizing pressure loss through the system. Your resin trap can be designed to suit either new or existing strainer bodies.

AISI 304 wedge wrapped wire screen resin trap strianer
is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

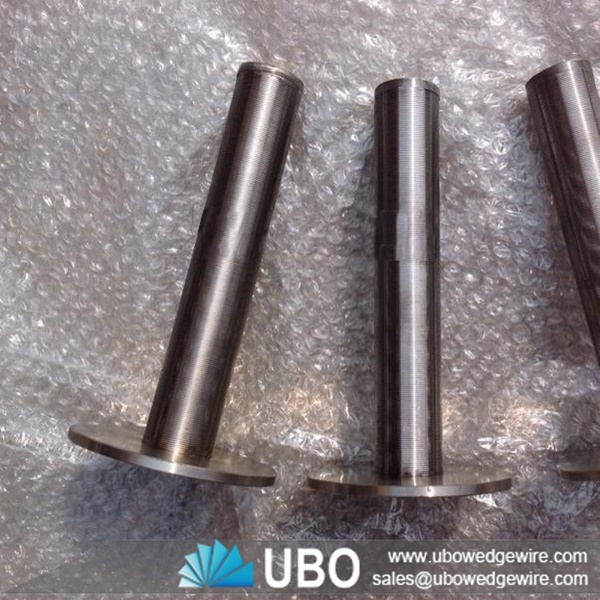

AISI 304 wedge wrapped wire screen resin trap strianer for water filter

AISI 304 wedge wrapped wire screen resin trap strianer for water filter

Application of AISI 304 wedge wrapped wire screen resin trap strianer

Welded stainless steel water well screen pipes are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water,oil or gas filter and other filtration equipment.

Feature of AISI 304 wedge wrapped wire screen resin trap strianer

·Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

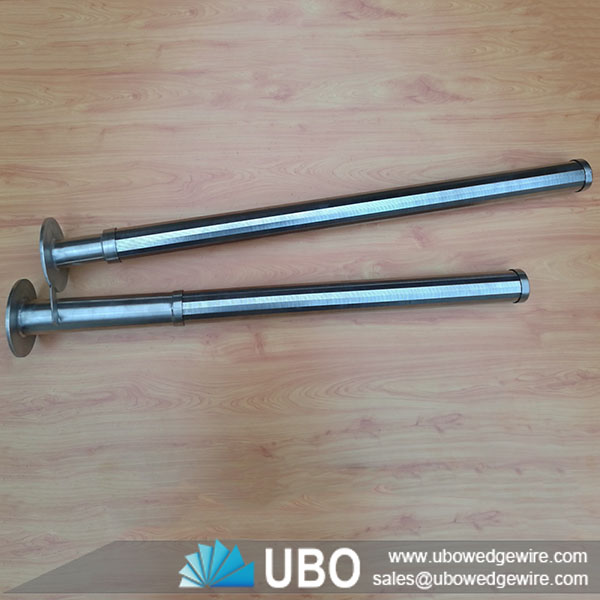

AISI 304 wedge wrapped wire screen resin trap strianer for water filter

AISI 304 wedge wrapped wire screen resin trap strianer for water filter

The specifications of the AISI 304 wedge wrapped wire screen resin trap strianer for water filter:

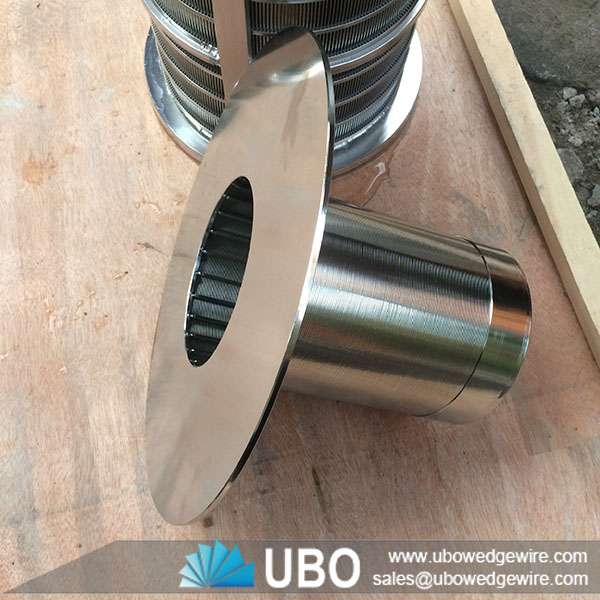

AISI 304 wedge wrapped wire screen resin trap strianer for water filter



wedge wire

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

support rod

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters

Diameter

  from 25mm to 1200mm.

The Packaging and Transportation of the AISI 304 wedge wrapped wire screen resin trap strianer for water filter:

AISI 304 wedge wrapped wire screen resin trap strianer for water filter
