wedge wire water strainer&nozzle

More Views

wedge wire water strainer&nozzlewedge wire water strainer&nozzlewedge wire water strainer&nozzle

wedge wire water strainer&nozzle

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the wedge wire water strainer&nozzle

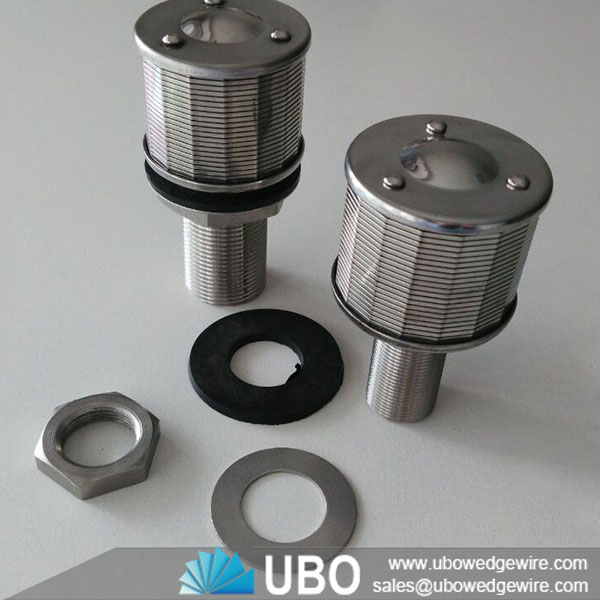

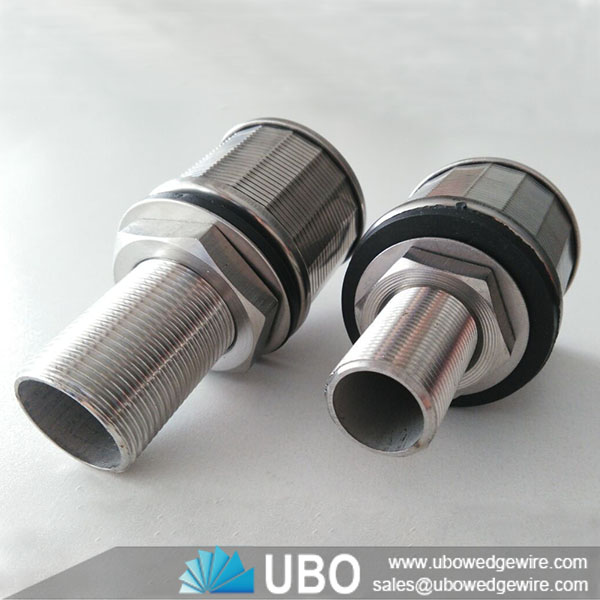

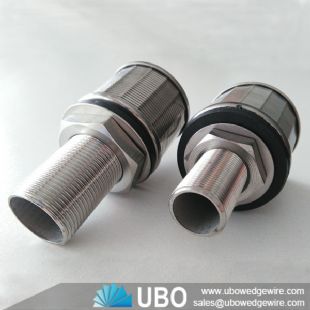

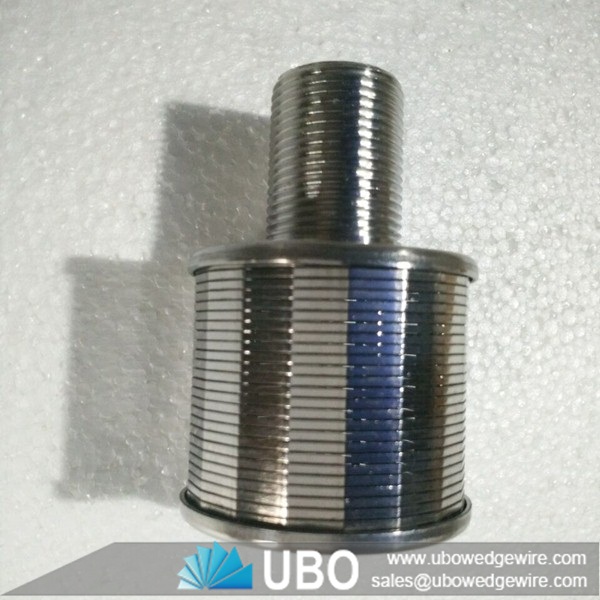

Wedge wire water strainer&nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle. Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

wedge wire water strainer&nozzle

Application of wedge wire water strainer&nozzle

The wedge wire water strainer&nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Characteristics of wedge wire water strainer&nozzle

1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

wedge wire water strainer&nozzle



The specifications of the wedge wire water strainer&nozzle:

wedge wire water strainer&nozzle

No.



Type



Ton



Slot

Opening



Size

0.2-0.25mm slot opening Area of through-flow mm2 (reference)

D

L1

L

M

1

TYS45-1-C

0.5

0.2-0.5

45

45

95

24

500

2

TYS53-2-B

1

0.2-0.5

53

45

100

24

570

3

TYS53-2-C

1.5

0.2-0.5

53

50

110

32

700

4

TYS57-3-B

2

0.2-0.5

57

45

110

32

600

5

TYS70-4-B

3

0.2-0.5

70

55

120

32

1000

The Packaging and Transportation of the wedge wire water strainer&nozzle:

wedge wire water strainer&nozzle
