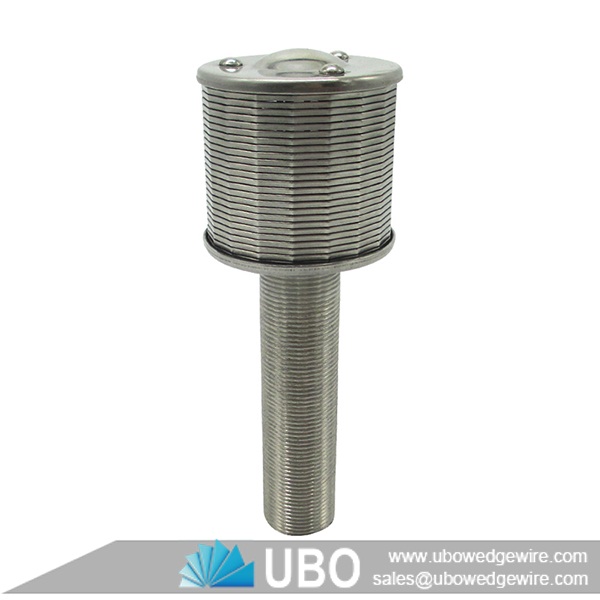

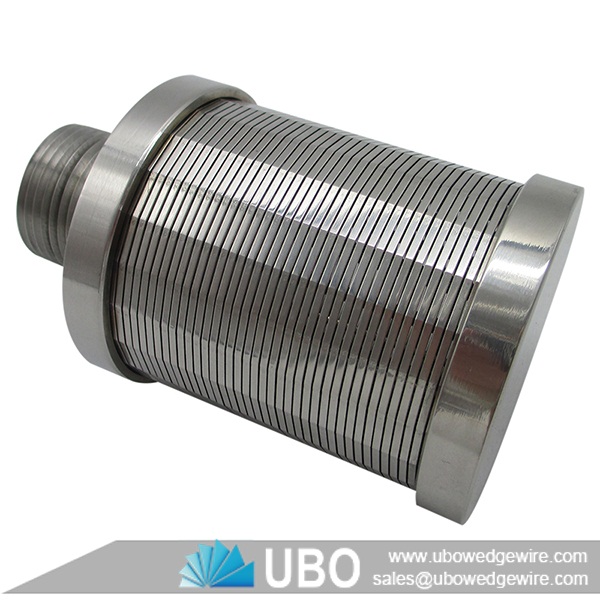

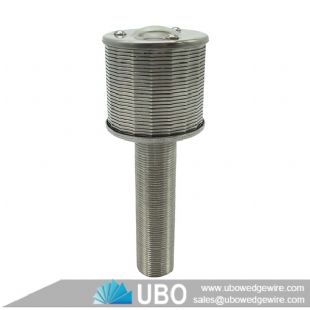

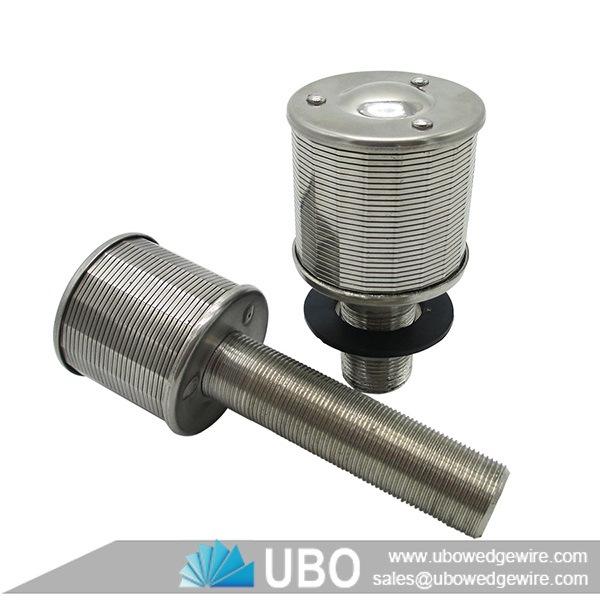

AISI 304 Wedge wire screen nozzle

More Views

AISI 304 Wedge wire screen nozzleAISI 304 Wedge wire screen nozzleAISI 304 Wedge wire screen nozzle

AISI 304 Wedge wire screen nozzle

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the AISI 304 Wedge wire screen nozzle

AISI 304 Wedge wire screen nozzles are made from V shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded, with an unique welding process. This spacing gives passage for water to enter.

Due to using the newest welding technology, UBO wedge wire nozzle can obtain various distances between carrying wires, very accurate and repeatable gap and therefore produce screens according to customer’s particular requirements.

AISI 304 Wedge wire screen nozzle

AISI 304 Wedge wire screen nozzle

Features of AISI 304 Wedge wire screen nozzle

Great mechanical strength
Highly resistant to abrasivity and vibration.
It can hold more pressure and temperature compared to the perforated sheet screen.
Longer screen life.
Larger useful area than that of the standard perforated sheet screen.
The wedge wire screen can be used in any of ion exchange filters.
The wedge wire screen is assembled to the filter body by clamp, this allows an easy and quick disassembling for cleaning.

Application of AISI 304 Wedge wire screen nozzle

Wedge wire screen nozzles are effective in a wide range of water treatment and other industrial applications for filtering and screening. Such as, under drain media retention elements, flow distributors in demineralizers, water softeners in pressure and gravity sand filters.
Except for filtering and screening applications, AISI wire screen nozzles have other applications. Just install several nozzles uniformly to be used as collectors at the bottom of the vessels.

AISI 304 Wedge wire screen nozzle

AISI 304 Wedge wire screen nozzle

The specifications of the AISI 304 Wedge wire screen nozzle:

AISI 304 Wedge wire screen nozzle

Type Slot
(mm)
Dimension Flow Rating
(M3/H)
D(mm) H(MM) L(MM) Thread Fittings
UBO-0.5 0.25 45 45 90/request M,NPT, G, PT(BSPT),Z,BSP, request SS Gasket,
Rubber gasket,
Nut, request
0.5
UBO-1.0 0.25 53 45 90/request 1.0
UBO-1.5 0.25 57 45 90/request 1.5
UBO-2.0 0.25 57 55 100/request 2.0
UBO-2.5 0.25 70 55 100/request 2.5
UBO-3.0 0.25 70 70 120/request 3.0
Note * All the above size are the normal size. Customized size is possible.
* UBO could help to design according to the application and requirement.
* The nozzles customized range as below:
1. Slot range: 0.05-2mm
2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application
3. Thread according to requirement

The Packaging and Transportation of the AISI 304 Wedge wire screen nozzle:

transportation of AISI 304 Wedge wire screen nozzle
