Wedge Wire Screen Water Well Screen Nozzle
Category: | Filter Nozzle |
---|---|
Material: | SS 304, 316, 316L, 321, 904L |
Properties: | wedge wire screen |
Application: | water treatment, water soft, conversion of sea water into fresh water, the filter of food chemistry and other filter industry |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

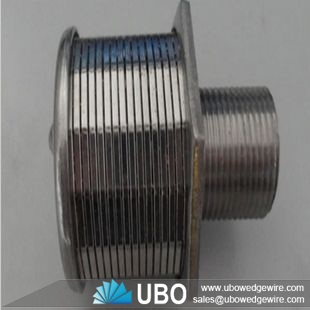

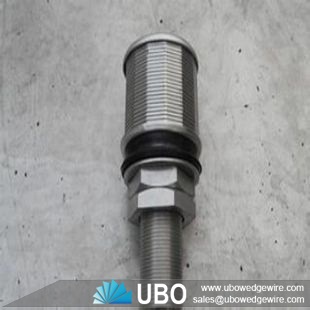

Details of Wedge Wire Screen Water Well Screen Nozzle
Wedge Wire screen water well screen nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization. with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.
Advantage of Wedge Wire Screen Water Well Screen Nozzle
--- Excellent roundness
--- Very good slot width precision
--- High mechanical load capacity
--- No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
--- Automated welding process for high-precision manufacturing
--- Perfectly adjusted screen basket profiles
--- Available for all screens
--- Surface finishing as required
Application of Wedge Wire Screen Water Well Screen Nozzle
This filter nozzle can be used at the filter equipment for the filtration of water, petrol resin and other medium. It can be also used in water treatment, water soft, conversion of sea water into fresh water, the filter of food chemistry and other filter industry.
Specifications of Wedge Wire Screen Water Well Screen Nozzle:
|
Type |
Ton |
Slot Opening |
Size |
0.2-0.25mm slot opening Area of through-flow mm2(reference) |
|||
D |
L1 |
L |
M |
|||||
1 |
SH45-1-C |
0.5 |
0.2-0.5 |
45 |
45 |
95 |
24 |
500 |
2 |
SH53-2-B |
1 |
0.2-0.5 |
53 |
45 |
100 |
24 |
570 |
3 |
SH53-2-C |
1.5 |
0.2-0.5 |
53 |
50 |
110 |
32 |
700 |
4 |
SH57-3-B |
2 |
0.2-0.5 |
57 |
45 |
110 |
32 |
600 |
5 |
SH70-4-B |
3 |
0.2-0.5 |
70 |
55 |
120 |
32 |
1000 |
Packaging and Transportation of Wedge Wire Screen Water Well Screen Nozzle:
Packaging Details: Single with fillers and then in wooden case or according to you
Delivery Detail:30 days or according to the order quantity
