Quality Wedge Wire Screen Manufacturer in China

wedge wire screen plate

More Views

wedge wire screen platewedge wire screen platewedge wire screen plate

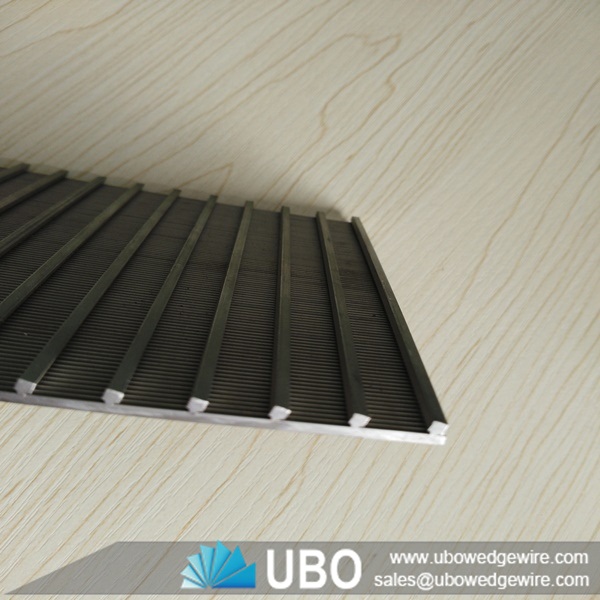

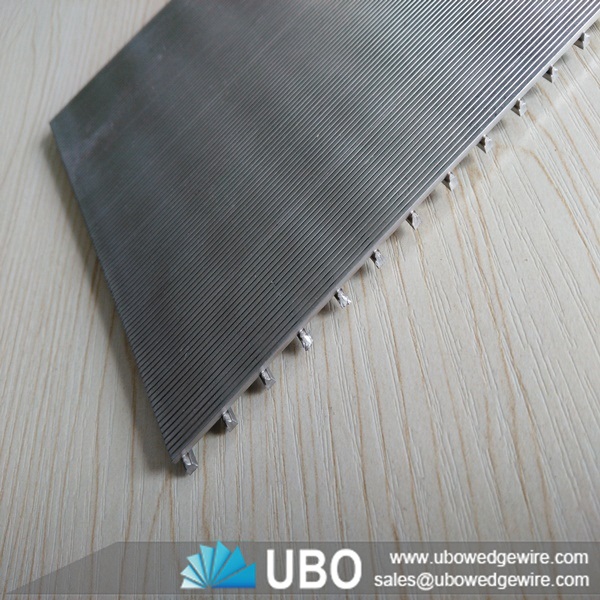

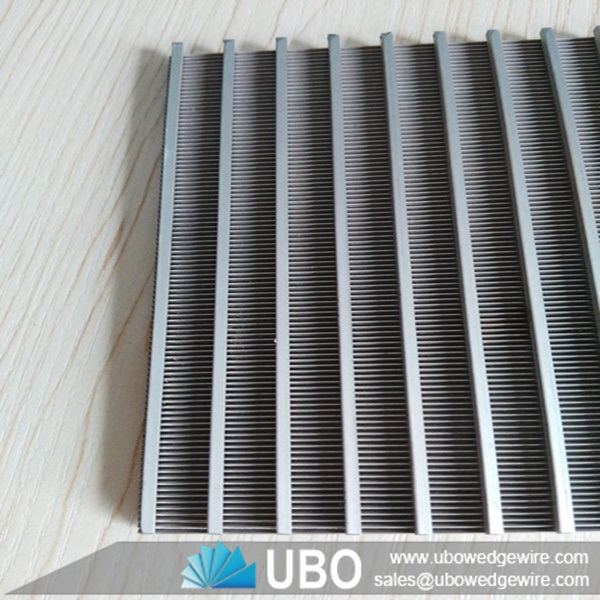

wedge wire screen plate

Category:Wedge Wire Screen Panel
Material:stainless steel304,316,316L
Properties:wedge wire
Application:screening, filtration, dehydrating, desliming in many trades extensively

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen plate

A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
The "V"shaped profile wire which avoids clogging and ensures an uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

Characteristics of wedge wire screen plate

High mechanical strength
High wear resistance
High impact resistance
Larger open area
Self-supporting structure
Non-plugging slot design
Lower operation and maintenance cost

Application of wedge wire screen plate

1. Steel gratings trench cover is widely used by various plants such as electric power, petroleum, chemical industry, metallurgy industry, machinery industry.
2. Steel gratings trench cover is also widely used in shipbuilding, harbor, oceanographic engineering, building, paper mills, cement plant, medicine, spinning and weaving.
3. Steel gratings trench cover is applied in food stuff factory, transportation, municipal administration, parking lot, etc.

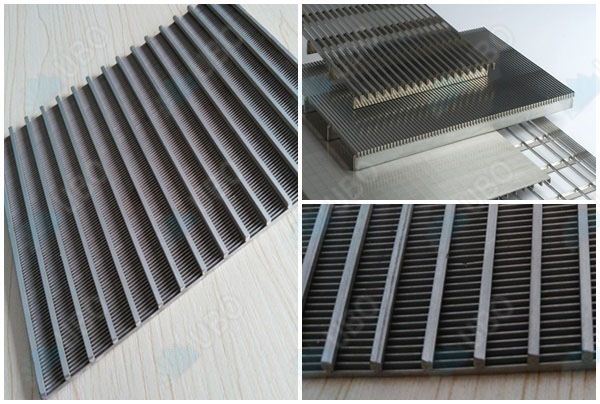

          wedge wire screen plate

Specifications of wedge wire screen plate:

screen plate

Material:

AISI304/316.



Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Opening

0.50 -- 6.00mm ,also can be customized as your request.



Pitch

10mm--35mm



Length

Max 6 meters.



Note: Other specifications can be customized according to your requirement.



Packaging and Transportation of wedge wire screen plate:

wedge wire screen plate
