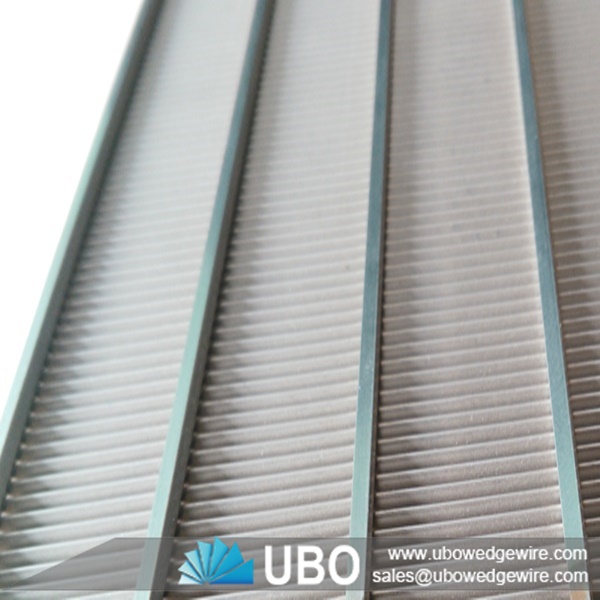

Wedge Wire Type Screen/ V Wire Wedge Screen
| Category: | Wedge Wire Screen Panel |
|---|---|
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
| Properties: | wedge wire screen panel |
| Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Wedge Wire Type Screen/ V Wire Wedge Screen
Wedge Wire Type Screen/ V Wire Wedge Screen is formed by welding wire(cross section is wedge)through a special welding technology welded on the support wire, use Special equipment for resistance welding, high welding strength, uniform gap, strong corrosion resistance, effective filter area, high penetration efficiency, simple structure, minimum aperture 25μm, arbitrarily chosen by the customer.
Applications of Wedge Wire Type Screen/ V Wire Wedge Screen
The product is especially suitable for fluids containing wax, asphalt and high viscosity. Widely used in coarse and fine filtration of water treatment of power oil wells, gas wells, wells, chemical, mining, paper making, environmental protection, metallurgy, food, sand, Decoration and other industries
Features of Wedge Wire Type Screen/ V Wire Wedge Screen
High mechanical strength, can withstand greater pressure
Uniform aperture, form uniform filter cake, beneficial backwash regeneration
Wedge-shaped filter gap, improve backwash regeneration capacity
High pressure, high temperature, anti-aging, corrosion resistant, available for many types liquid.
Almost two-dimensional filter, without particle accumulation, can gather energy when backwash, good backwash effect.
Specifications of Wedge Wire Type Screen/ V Wire Wedge Screen:
|
Name: |
Wedge wire screen panel |
|
Material: |
stainless steel (304,316etc.) |
|
Wedge Wire (mm): |
Width : 0.75 1.50 1.80 2.30 3.00 3.30 3.70 |
|
Height : 1.50 2.00 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
|
|
Support Rod (mm): |
Width : 1.00 1.80 2.00 3.00 4.00 5.00 |
|
Height : 2.00 2.50 3.00 5.00 6.00 8.00 |
|
|
Width： |
from 1 inch -----45 inch. |
|
Length: |
lengths up to 6 meters. |
|
Slot size: |
0.02,0.05,0.1 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved request. |
|
Pitch: |
10-300mm |
|
Note: |
Other specifications can be customized according to your requirement |
