Slotted flat screen panel

More Views

Slotted flat screen panelSlotted flat screen panelSlotted flat screen panel

Slotted flat screen panel

Category:Wedge Wire Screen Panel
Material:stainless steel 304,316,316L
Properties:wegde wire screen
Application:water filtration,liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

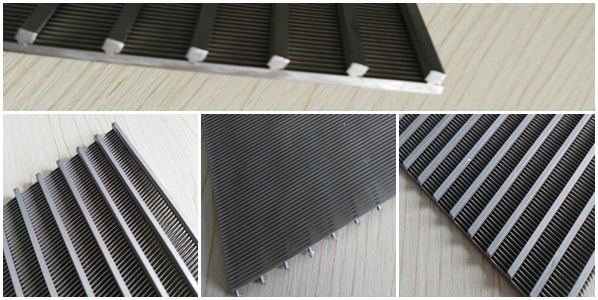

Details of Slotted flat screen panel

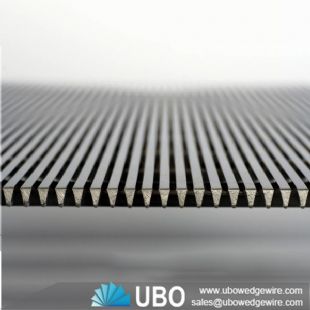

Slotted flat screen panel can be constructed using rectangular support rods or round support rods. They are the most widely used type of wedge wire screens mainly in the mineral processing both for stationery as well as vibratory decks.

Slotted flat screen panel

Slotted flat screen panel can be designed to optimize the open area, strength and wear life for each application. The panels are either continuously or intermittently welded on the lower side of loop to provide complete rigidity to the panels thus becoming very effective in transmitting the vibrations without mechanical failures.

Characteristic of Slotted flat screen panel

Non-clogging surfaceLarge open area
Low pressure drop
Hydraulic efficiency
High flow rates
Mechanical strength
Abrasion-resistant
Easy cleaning

Application of of Slotted flat screen panel

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.
Used for fiber removal in Starch industry.

Slotted flat screen panel

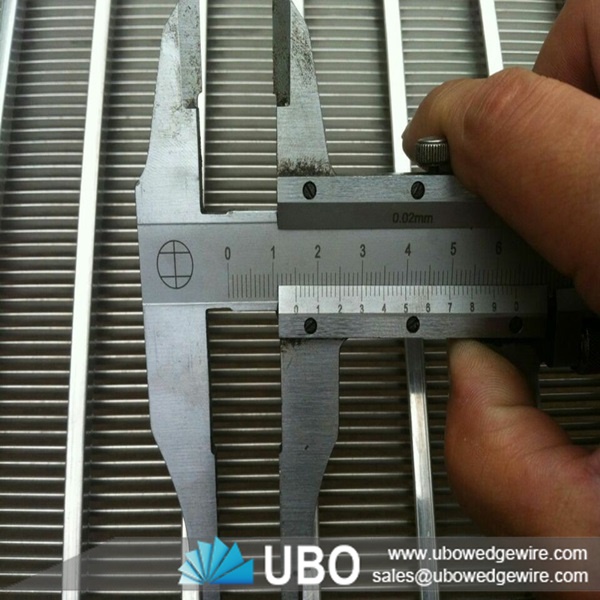

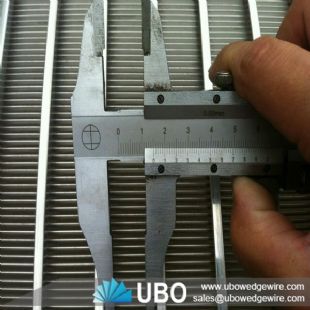

Specifications of Slotted flat screen panel:

Materil:stainless steel

Type:flat  screen panel

Slotted flat screen panel

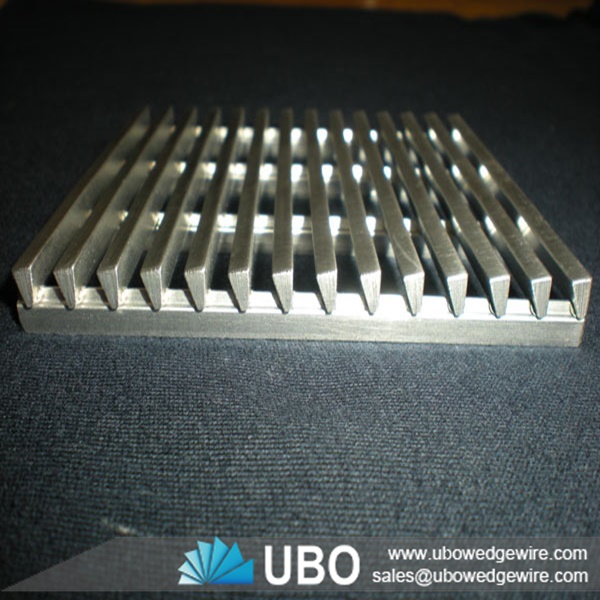

Round Support Rod Construction Rectangular Support Rod Construction
63V on ¼” diameter at 1 ¼” centers 63V on .074” × ½” at 1” centers
69V on 5/16” diameter at 2” centers 69V on .074” × ¾” at 1 ½” centers
93V on 5/16” diameter at 2” centers 93V on .074” × 1” at 2” centers
125V on 3/8” diameter at 3” centers 125V on .105”× 1” at 2” centers

Slotted flat screen panel

Packaging and Transportation of Slotted flat screen panel:

1.Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)
2.We have a very trust forwarding company cooperate for long time and establish a solid partnership,of course,you can also arrange forward to take products from our factory.

packing
