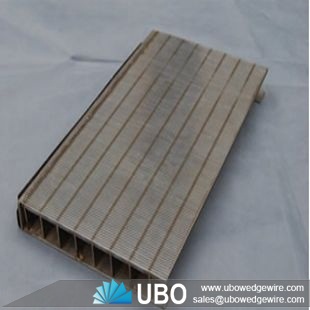

Flat wedge wire screen

More Views

Flat wedge wire screenFlat wedge wire screenFlat wedge wire screen

Flat wedge wire screen

Category:Wedge Wire Screen Panel
Material:stainless steel
Properties:wedge wire screen
Application:Filters,water filter,industry filter

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Flat wedge wire screen

Flat wedge wire screen is the wedge wire screen in panel type.Flat welded wedge wire panels offer a perfectly flat and smooth surface with rectangular openings.They are made from V shaped profile wire,with an unique welding process,offering great strength, precision,long service life and a wide range of applications in the field of sugar juice filtration,waste water treatment,crude oil and natural gas production and vessel internals solving problems of solid/liquid and solid/gas separation,filtration of oils,greases, paints,food products,water,fuels,liquid cooling agents,chemicals etc.

Application of Flat wedge wire screen

Vibrating screen decking,cross flow sieves, surface water intake screen, mineral processing, fish diversion screen panel, hatchery screens, food processing, and flooring for malt kiln,germination, and grain drying.

Characteristic of Flat wedge wire screen

High mechanical strength
High wear resistance
High impact resistance
Larger open area
Self-supporting structure
Non-plugging slot design
Lower operation and maintenance cost

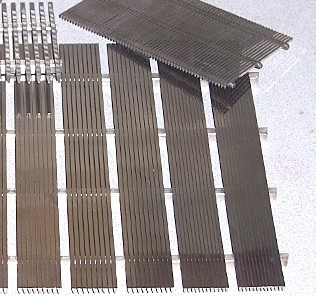

Flat wedge wire screen

Specifications of Flat wedge wire screen:

 Material:stainless steel
Type:flat screen panel
flat screen panel

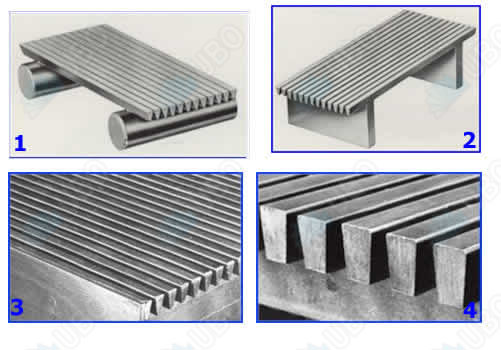

WEDGE PROFILE WIRE
B (mm) 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
H (mm) 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30
α (°)     6° ,10° , 12°
GAP SLOT WIDTH(mm)    0.3mm-10mm
LONG WEDGE
SUPPORT WIRE

Convex shape wire


B(mm) 1MM-3MM B (mm) 3mm-5 mm
H(mm) 4MM-6MM H (mm) 3mm-5mm
SUPPORT WEDGE WIRE
£‚¬‚¬WIDTH(mm) 2.30 2.30 3.00 3.70 3.30
£‚¬‚¬HEIGHT(mm) 2.70 3.60 4.70 5.60 6.30

flat screen panel

Packaging and Transportation of Flat wedge wire screen:

Packaging Details: lined with the plastic and woden case
Delivery Detail: Within 20 days after deposit payment and according to the customer order quantity
