Stainless Steel Wire v wire wrap v-wire screens

More Views

Stainless Steel Wire v wire wrap v-wire screensStainless Steel Wire v wire wrap v-wire screensStainless Steel Wire v wire wrap v-wire screens

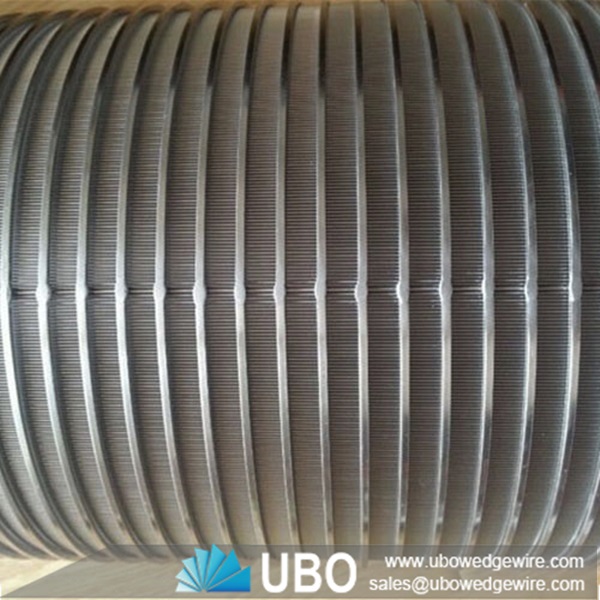

Stainless Steel Wire v wire wrap v-wire screens

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge wire screen
Application:the water-treating equipment, the environmental protection, the sea water transforms into the industrial water

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wire v wire wrap v-wire screens

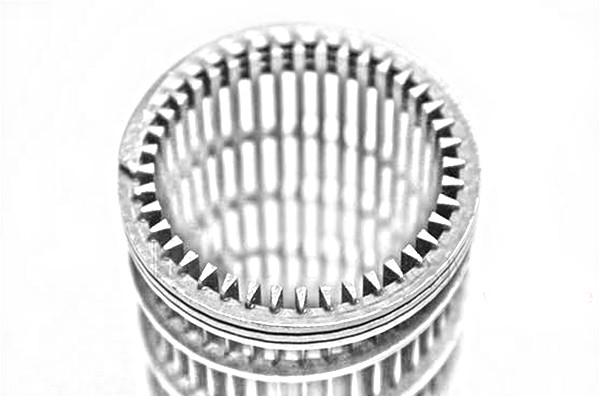

    The v-wire wedge wire screen pipe is made up of rods and warp. The rod can be round wire,
triangular wire or trapezoid wire.The warp is triangular wire (V-shaped wire). V-wirewedge wire screen pipes have a robust structure and large open area, as well as accurate slot dimension.
     At the same time, V -wire water well screens have many advantages such as heat-resisting,
anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.

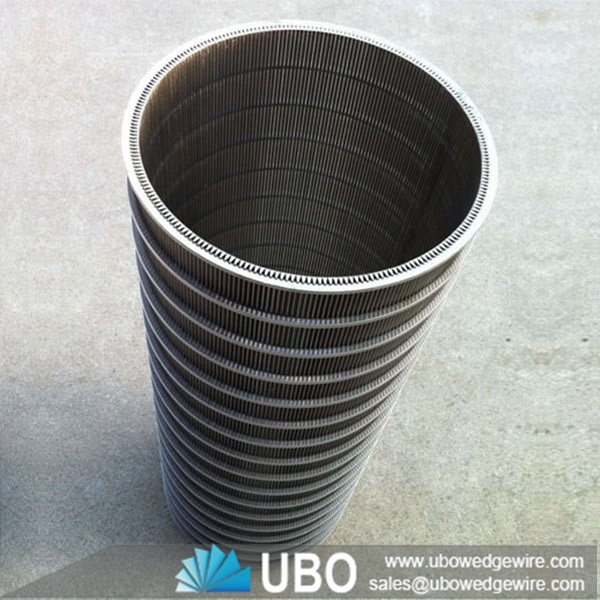

Stainless Steel Wire v wire wrap v-wire screens

Uses for Stainless Steel Wire v wire wrap v-wire screens:

The strainer is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Advantage for Stainless Steel Wire v wire wrap v-wire screensp:

·Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

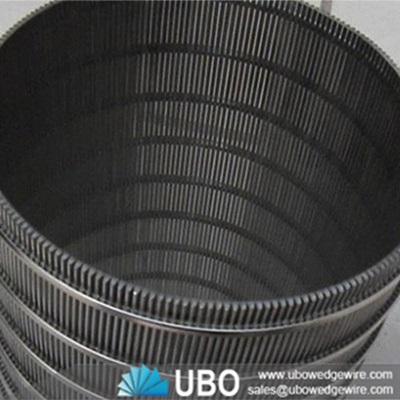

Stainless Steel Wire v wire wrap v-wire screens

Specifications of Stainless Steel Wire v wire wrap v-wire screens:

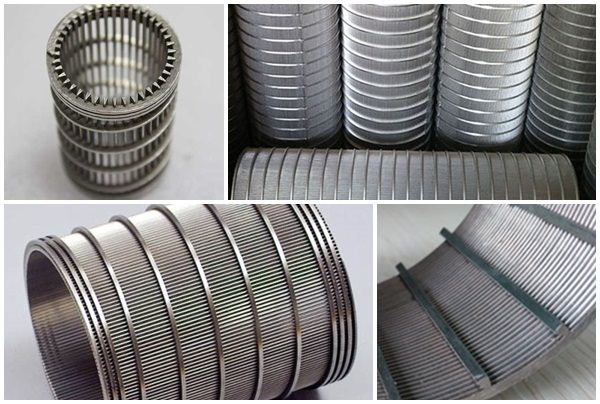

Stainless Steel Wire v wire wrap v-wire screens

Wire Size:
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30
Support Rods:
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other wires and rods available upon request
Slot size:0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)
Length:Lengths up to 6 meters.
Diameter:ranging from 25mm to 800mm.
End connection:Plain beveled ends for butt welding or threaded

Packaging and Transportation of Stainless Steel Wire v wire wrap v-wire screens:

Stainless Steel Wire v wire wrap v-wire screens
