SS304 v wire wrapped screens for filtration

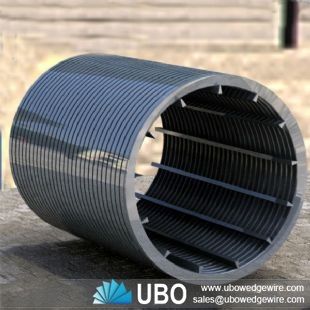

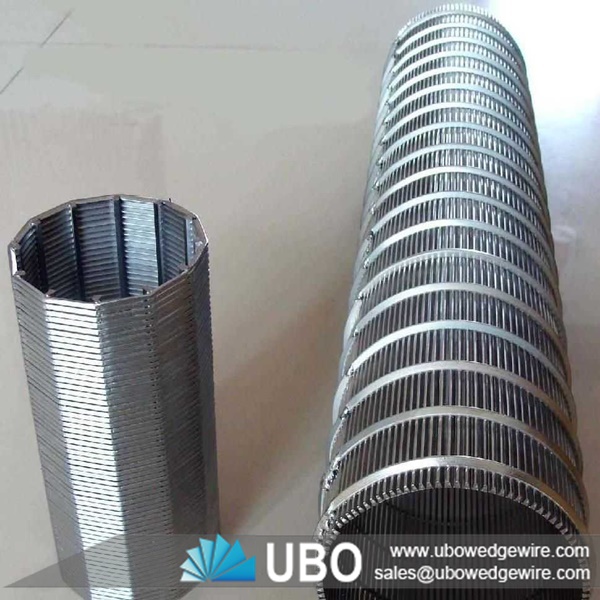

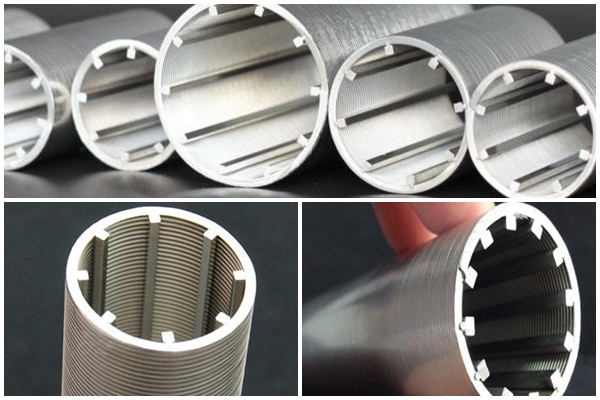

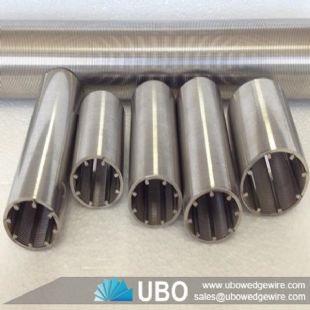

SS304 v wire wrapped screens are manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods. Each intersecting point of these wire is fusion welded. The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water(oil) to enter your well freely in ample quantities , while at the same time keeps the majority of sand and gravel out of the well.

Features of SS304 v wire wrapped screens for filtration

The benefit of wedge wire screen is more open area, have very precise openings ,maximum design flexibility, stronger and more durable, economical ,easier installation and long-term operating etc.

Applications of SS304 v wire wrapped screens for filtration

SS304 v wire wrapped screens is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,many other liquids, solids separation applications.

Specification (Profile wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Specification (support rods):

Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30Round: From 2.50mm to 6.0mm

Note: other wires and rods available upon request

Slot size: 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material: Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length; Lengths up to 6 meters.

Diameter: ranging from 25mm to 800mm.

End connection : Plain beveled ends for butt welding or threaded or nothing
