Rod Based Continuous Slot Welded Wedge Wire Screen

More Views

Rod Based Continuous Slot Welded Wedge Wire ScreenRod Based Continuous Slot Welded Wedge Wire ScreenRod Based Continuous Slot Welded Wedge Wire Screen

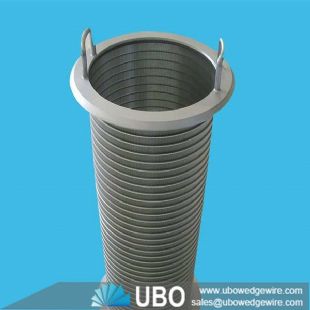

Rod Based Continuous Slot Welded Wedge Wire Screen

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Cylinder
Application:waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Rod Based Continuous Slot Welded Wedge Wire Screen

Wedge Wire Screen Cylinder is composed of rod strips and V shaped wires through manufacturing on specialized welding machine.The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure

Application for Rod Based Continuous Slot Welded Wedge Wire Screen:

Our stainless steel cylinders can be used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

Features for Rod Based Continuous Slot Welded Wedge Wire Screen:

The welded stainless steel water well screen is made up of rods and warp. The rod can be triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Advantages for Rod Based Continuous Slot Welded Wedge Wire Screen:

1) A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

2) A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.

3) A uniform and efficient well development due to the continuous slot opening.

4) Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

5) Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

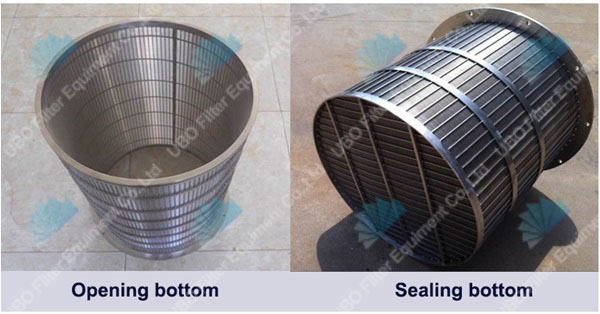

Rod based continuous slot welded wedge wire screen

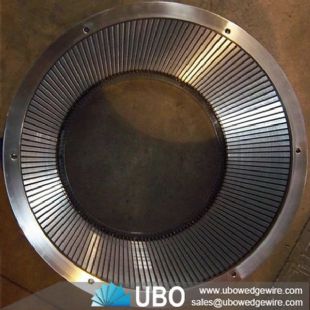

Rod based continuous slot welded wedge wire screen

Specifications of Rod Based Continuous Slot Welded Wedge Wire Screen:

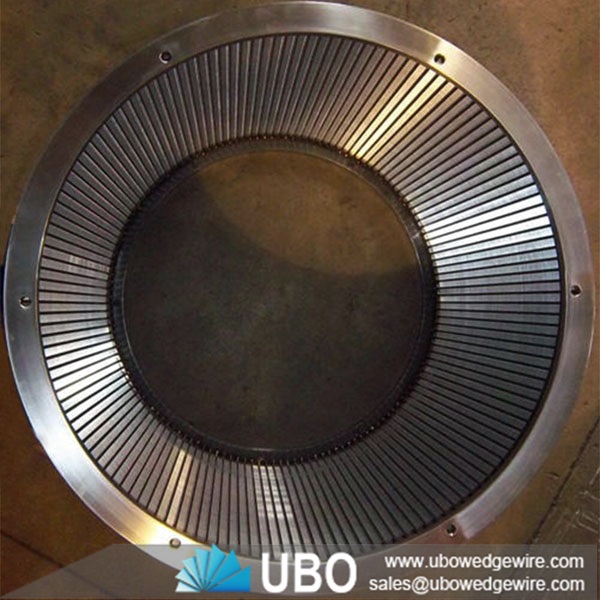

Rod based continuous slot welded wedge wire screen



Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.

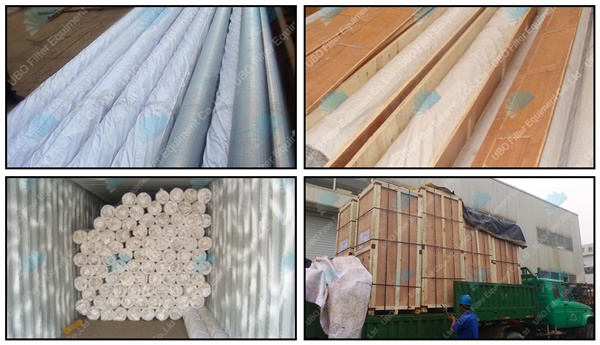

Packaging and Transportation of Rod Based Continuous Slot Welded Wedge Wire Screen:

Rod based continuous slot welded wedge wire screen
