Quality Wedge Wire Screen Manufacturer in China

Pressure Vessel Internals Basket for Screen Bowl Decanter

More Views

Pressure Vessel Internals Basket for Screen Bowl DecanterPressure Vessel Internals Basket for Screen Bowl DecanterPressure Vessel Internals Basket for Screen Bowl Decanter

Pressure Vessel Internals Basket for Screen Bowl Decanter

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Cylinder
Application: waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Pressure Vessel Internals Basket for Screen Bowl Decanter

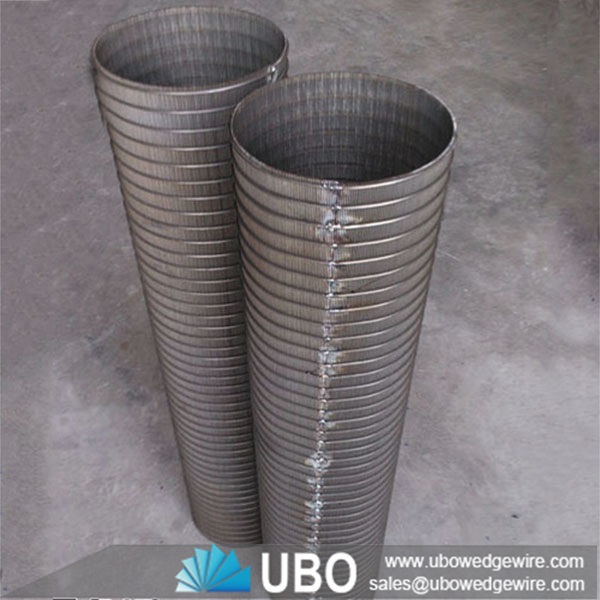

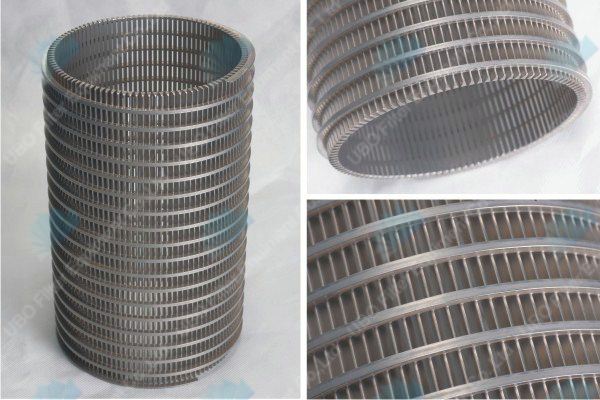

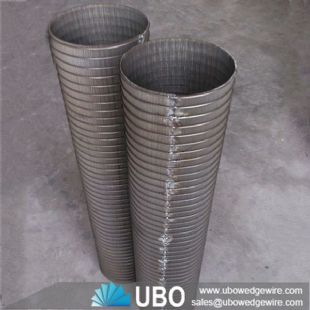

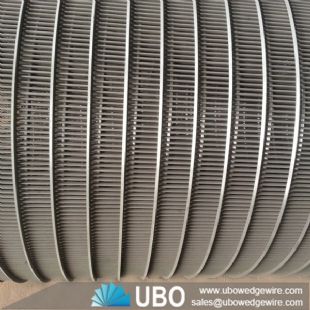

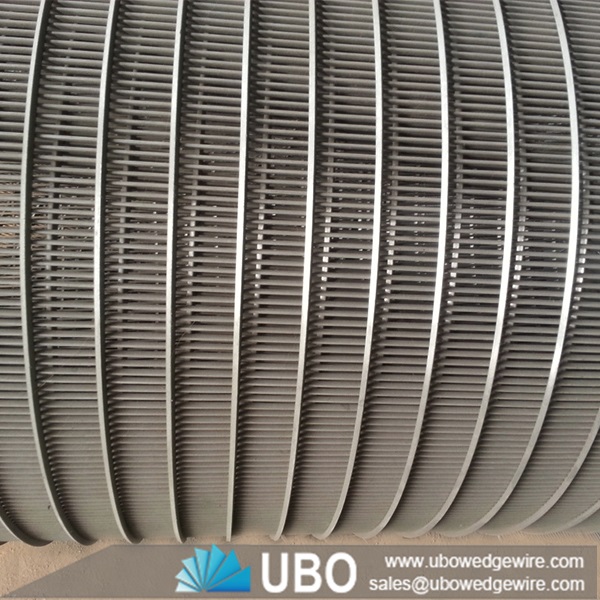

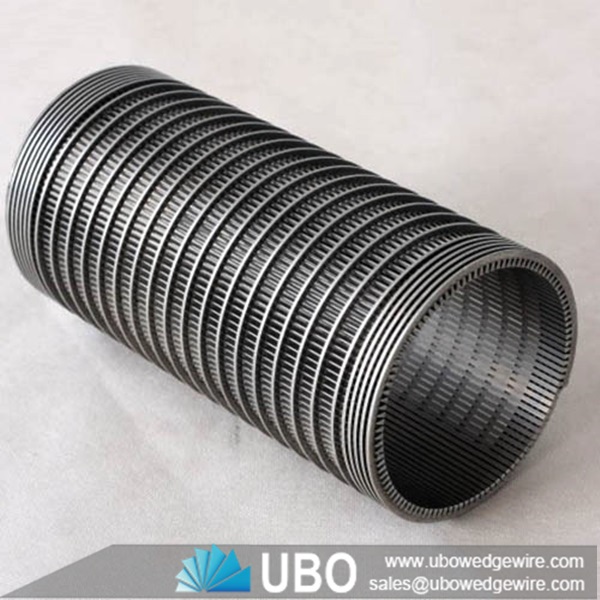

The continuous slot wire-wrap screen ( continuous slot water well screen) is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry. this type of screen is constructed by winding cold rolled triangular V-shaped wire around a circular array of longitudinal rods. the wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.

Application for Pressure Vessel Internals Basket for Screen Bowl Decanter:

Johnson wedge wire screen pipes are mainly used for the water-treatment, water well drilling, oil well drilling, mineral processing, coal-cleaning plant, sewage treatment and other industries, water, oil or gas filter and other filtration equipment.

Advantages for Pressure Vessel Internals Basket for Screen Bowl Decanter:

1) A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

2) A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.

3) A uniform and efficient well development due to the continuous slot opening.

4) Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

5) Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Features for Pressure Vessel Internals Basket for Screen Bowl Decanter:

The Stainless Steel Johnson mesh water well screen is woven by wraps and rods, of which the rods can be wedged profile wire ( V wire or round shaped wire) the wraps can be v shaped wires. Different shaped wires and accurate slot made our well screen pipe high Filtration precision . With firm structure, thermostability and anticorrosion, the product we made has good mechenical performance and prolongs the life of the well .

Performance for Pressure Vessel Internals Basket for Screen Bowl Decanter:

1) successive slots enlarge the proportion of passing water and make fully contact with the aquifer

2) V shaped profile avoid plugging and make sure smooth circulation

3) successive slots can be effective for really long time

4) easily clean from inside

5) trapezoidal filter tube is easily backwashing safe and reliable, long service life and comprehensive low cost.

Pressure Vessel Internals basket for Screen Bowl Decanter

Specifications of Pressure Vessel Internals Basket for Screen Bowl Decanter:

Pressure Vessel Internals basket for Screen Bowl Decanter


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Pressure Vessel Internals Basket for Screen Bowl Decanter:

Package: in wood case

Delivery: 10-20 days
