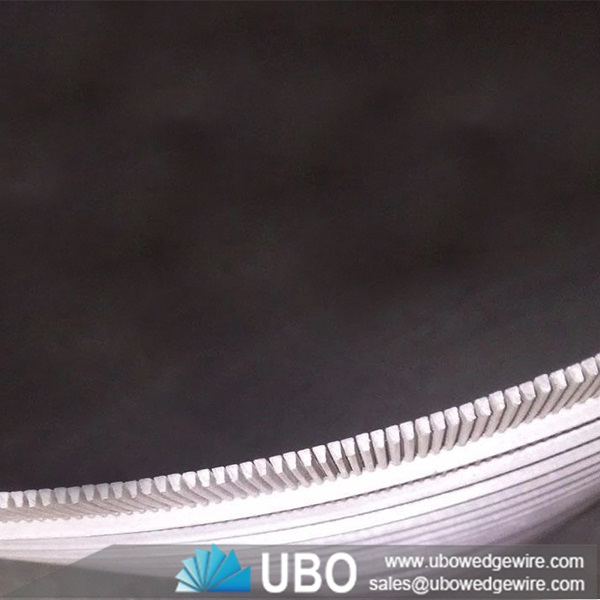

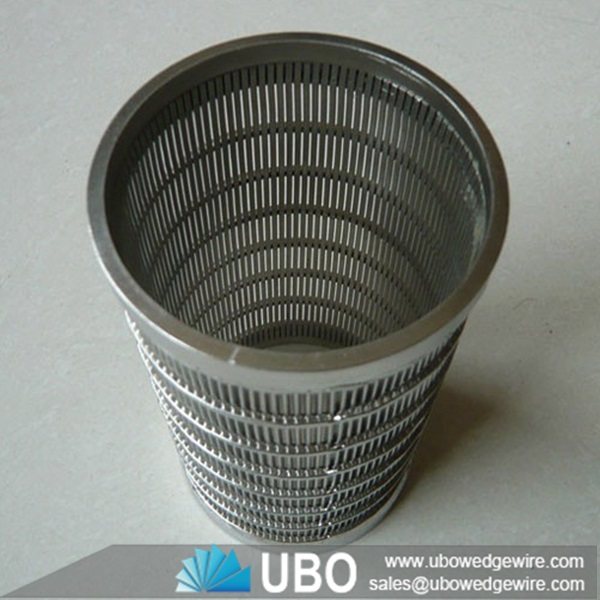

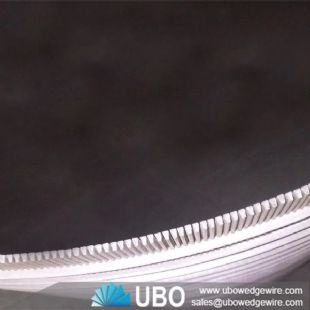

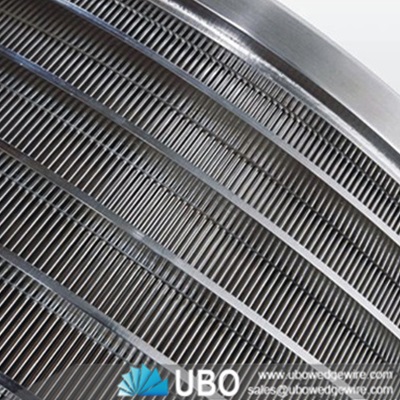

v wire stainless steel filter in rotary fine screen Cylinder

More Views

v wire stainless steel filter in rotary fine screen Cylinderv wire stainless steel filter in rotary fine screen Cylinderv wire stainless steel filter in rotary fine screen Cylinder

v wire stainless steel filter in rotary fine screen Cylinder

Category:Wedge Wire Pipe&Cylinder
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:screen cylinders
Application:water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of v wire stainless steel filter in rotary fine screen Cylinder

     The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction

Application for v wire stainless steel filter in rotary fine screen Cylinder:

The water screen is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry.

Characteristics for v wire stainless steel filter in rotary fine screen Cylinder:

1. The sand filter tubes have the efficient sand prevention performance can preferably forbid the formation particle and fulfill the need of sand control.
2. Even filter pores, high permeability and anti-blocking.
3. Large filtering area, small flow resistance and high oil extraction rate
4. Stainless material has the corrosion resistant ability of antacid, alkali and salt, can easily suit the special requirement of the petroleum well. And the slot wont be enlarged because of the corrosion.
5. Multiple structure was welded together with stable filtering pore which made the strong non-deformability.

Type for v wire stainless steel filter in rotary fine screen Cylinder:

Wedge wire screen have flat type , cylinder type , slope type and basket type . So Wedge wire screen is called as flat welded screen panel , cylinder wedge screen and sieve bend screen . According to the weaving type , they are also called woven wedge wire and welded wedge wire such as crimped wedge wire . welded wedge screen panels.

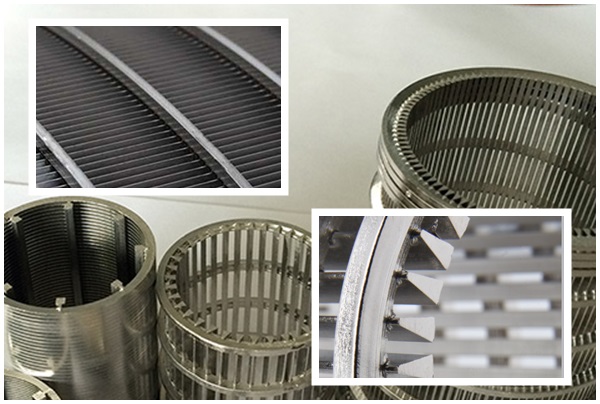

v wire stainless steel filter in rotary fine screen Cylinder

Specifications of v wire stainless steel filter in rotary fine screen Cylinder:

v wire stainless steel filter in rotary fine screen Cylinder

v wire stainless steel filter in rotary fine screen Cylinder

Basepipe OD (in)
Perforations per foot
Basepipe Hole Size (in)
Open Area of Basepipe Holes (in2/ft)
Wrap Wire Size Keystone (in)
Rib Wire Size Round (in)
Maximum OD (in)
1.05
54
0.312
4.14
0.09*0.09
0.125
1.489
1.315
66
0.312
5.06
0.09*0.09
0.125
1.726
1.66
78
0.312
5.98
0.09*0.09
0.125
2.126
1.90
42
0.375
4.63
0.09*0.09
0.125
2.387
2.063
42
0.375
4.63
0.09*0.09
0.125
2.55
2.375
54
0.375
5.96
0.09*0.09
0.125
2.86
2.875
66
0.375
7.28
0.09*0.09
0.125
3.362
3.25
78
0.375
8.61
0.09*0.09
0.125
3.737
3.50
78
0.375
8.61
0.09*0.09
0.125
3.987
4.00
90
0.375
9.94
0.09*0.09
0.125
4.487
4.50
102
0.375
11.26
0.09*0.09
0.125
5.001
5.00
114
0.375
12.59
0.09*0.09
0.125
5.506

Packaging and Transportation of v wire stainless steel filter in rotary fine screen Cylinder:

1.Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)
2.We have a very trust forwarding company cooperate for long time and establish a solid partnership,of course,you can also arrange forward to take products from our factory.
