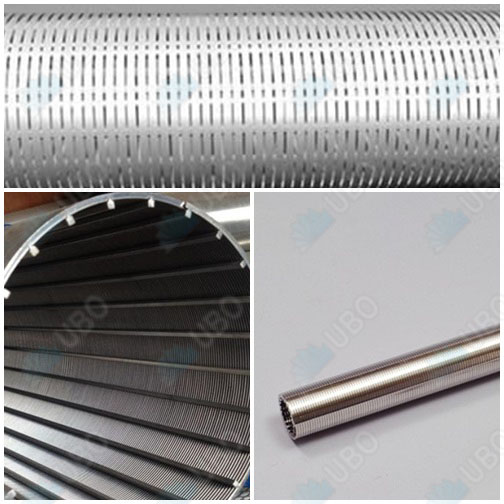

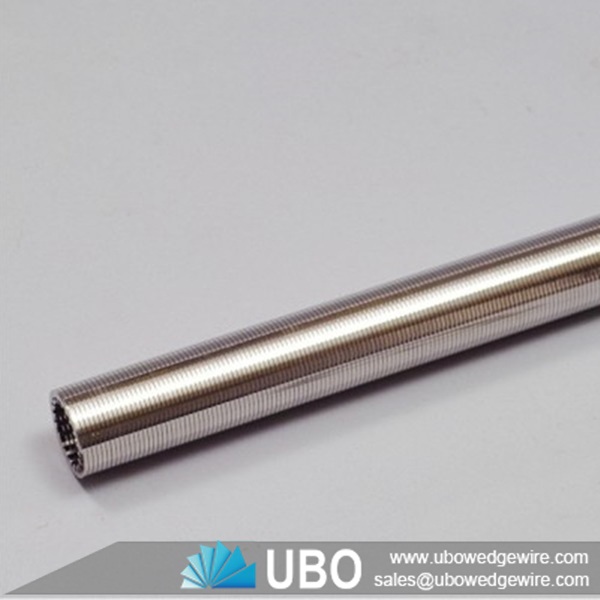

Wire-Wrapped of Stainless Steel Pipe

More Views

Wire-Wrapped of Stainless Steel PipeWire-Wrapped of Stainless Steel PipeWire-Wrapped of Stainless Steel Pipe

Wire-Wrapped of Stainless Steel Pipe

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel
Properties:Stainless Steel Pipe
Application:driveways, car parks, shopping centres,dive the water pump,water-treatment equipment, the environmental protection

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wire-Wrapped of Stainless Steel Pipe

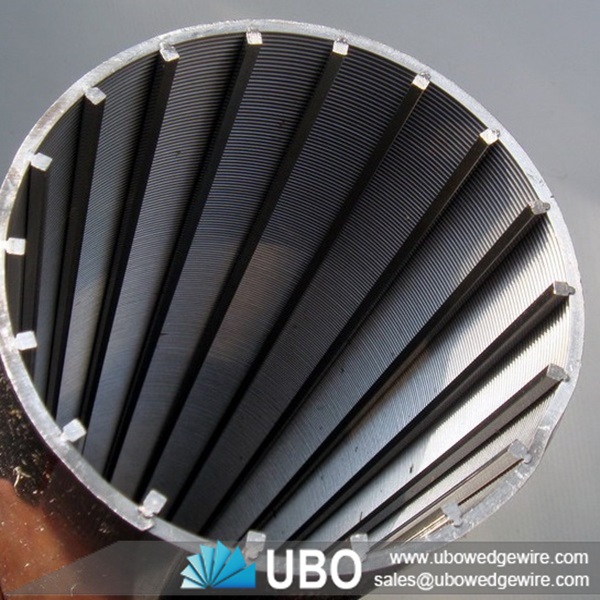

    V-wire Screen is manufactured with V-shaped profile wire, which is spirally wound around a cage of longitudinal support rods.
    Each intersecting point of these wires if fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire.
    This spacing gives passage for water to enter.The entire process is completed on fully computerized machines.

Wire-Wrapped of Stainless Steel Pipe

Application for Wire-Wrapped of Stainless Steel Pipe:

V- Wire Screen is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.

Characteristic for Wire-Wrapped of Stainless Steel Pipe:

Welded Wedge Wire Screens are made in panel or cylinder type from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range. Flat welded wedge wire panels offer a perfectly flat and smooth surface with rectangular openings. This kind of wedge wire can replace traditional media like wire mesh cloth, perforated plate and other metal sifting materials as components for rotary screen, well screen, quarry screen.

Advantages for Wire-Wrapped of Stainless Steel Pipe:

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

Wire-Wrapped of Stainless Steel Pipe

Specifications of Wire-Wrapped of Stainless Steel Pipe:

Wire-Wrapped of Stainless Steel Pipe

Bridge Slot and V-Wire Wrap Water Well Screen
Material:
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Diameter ranging
from 1 inch -----45 inch.
Length:
lengths up to 6 meters.
Slot size:
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized according to your requirement

Packaging and Transportation of Wire-Wrapped of Stainless Steel Pipe:

Single with bubble bag and then in wooden case(fumigation certificate). Each case is clearlymarked with:
Name & identification mark of manufacturer
Batch number
Date of manufacture
Material
Safe heating & application temperature
