Wedge wire screen continous slot screen pipe

More Views

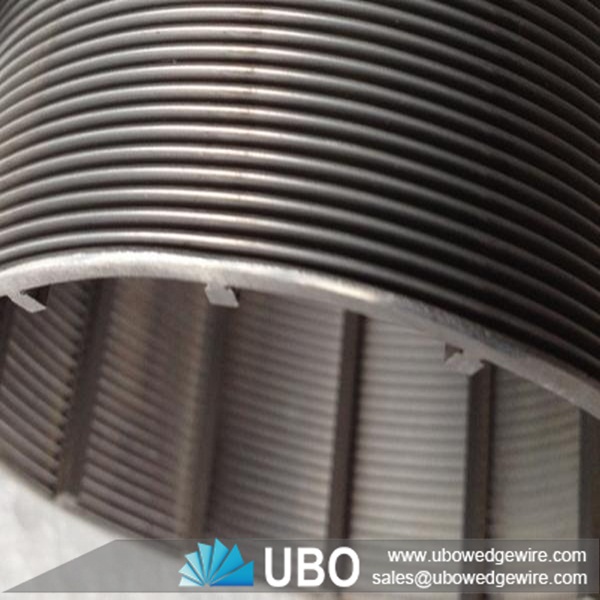

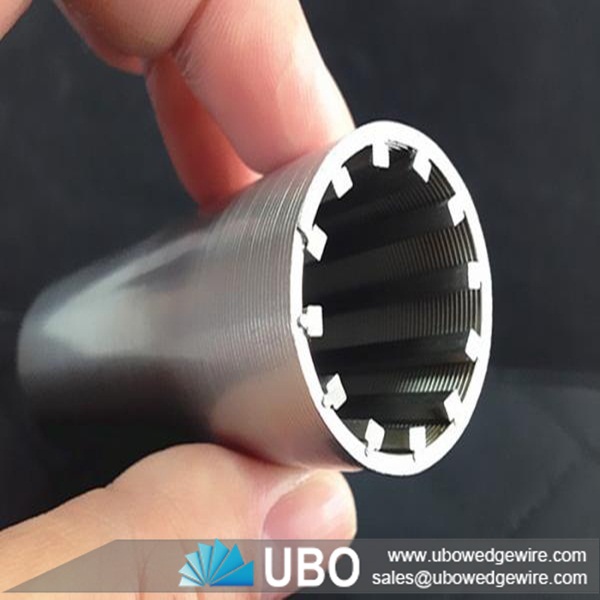

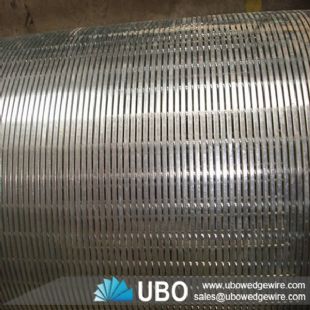

Wedge wire screen continous slot screen pipeWedge wire screen continous slot screen pipeWedge wire screen continous slot screen pipe

Wedge wire screen continous slot screen pipe

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire screen continous slot screen pipe

Wedge wire screen continous slot screen pipe is also known as all-welded wire wrapped screen. Slot screen pipes are composed of a surface profile that is spirally wrapped around axial support profiles and attached to each other by resistance welding. These filter elements have the unique advantages of very accurate, narrow slot openings and perfect roundness all in one. Slot tubes can be provided with the necessary end pieces for attachments and/or reinforcements.

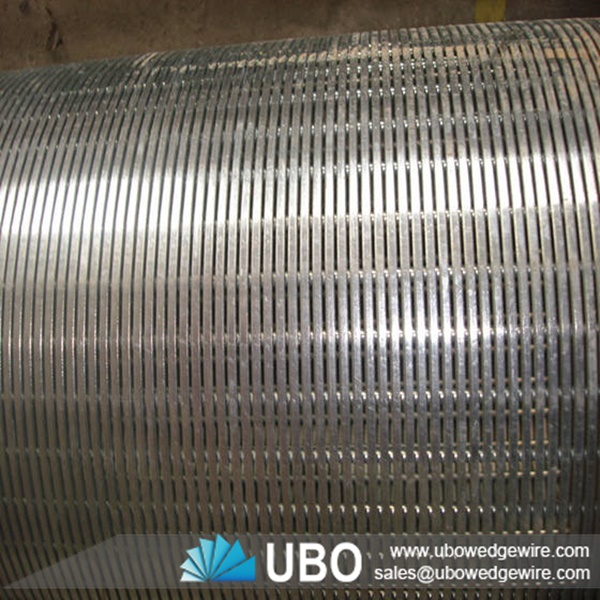

Wedge wire screen continous slot screen pipe

Advantages of Wedge wire screen continous slot screen pipe

1.Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.
2.Low cost operation.
3.Reduce the abrasion of the pump.
4. Extend the life span of wells, low-carbon, Galvanized or stainless steel construction.

Feature of Wedge wire screen continous slot screen pipe

1.The V-shape section plane of Wedge wire screen pipe (Johnson screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.
2. The consecutive slot of Wedge wire screen pipe (Johnson screens) have wider open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better, which can increase the water yield and prolong service time of the well.
3. Wire and support rods are all-welded, which makes the Wedge wire screen pipe (Johnson screens) more robust and longer life.
4. The longitudinal support rods and the continuous slot make the Wedge wire screen pipe (Johnson screens) have more excellent pressure-resistant performance.
5. Specifications and end connections of Wedge wire screen pipe (Johnson screens) can be fabricated according to customers’ requirements.

Applications  of Wedge wire screen continous slot screen pipe

Wedge wire screen continous slot screen pipe can be employed in almost all industrial processes which require very fine and uniformly accurate aperture, combining rapid discharge of material and high mechanical strength. Some of the specialized applications of these screens are given below -
Wedge wire screen used in industries for water, oil filtration equipments like

Filteration Equipments
Filtration Systems.
Filters.
Wedge Wire Screen.

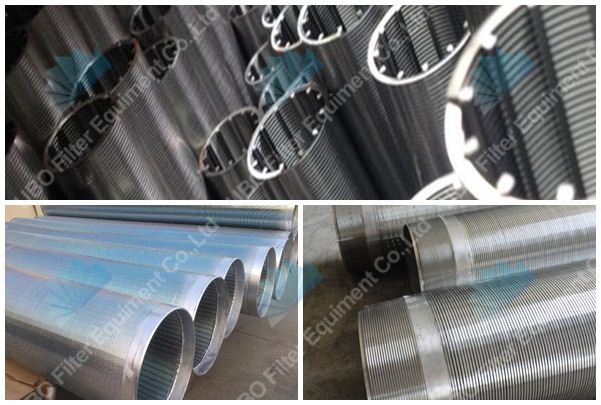

Wedge wire screen continous slot screen pipe

Specifications of Wedge wire screen continous slot screen pipe:

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Wedge wire screen continous slot screen pipe

Packaging and Transportation of Wedge wire screen continous slot screen pipe:

transportation
