Wedge Wire Screen Pipe for Water Treatment

More Views

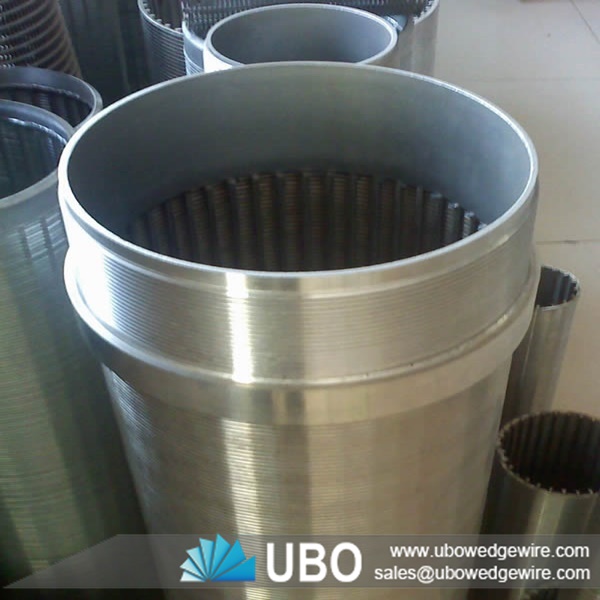

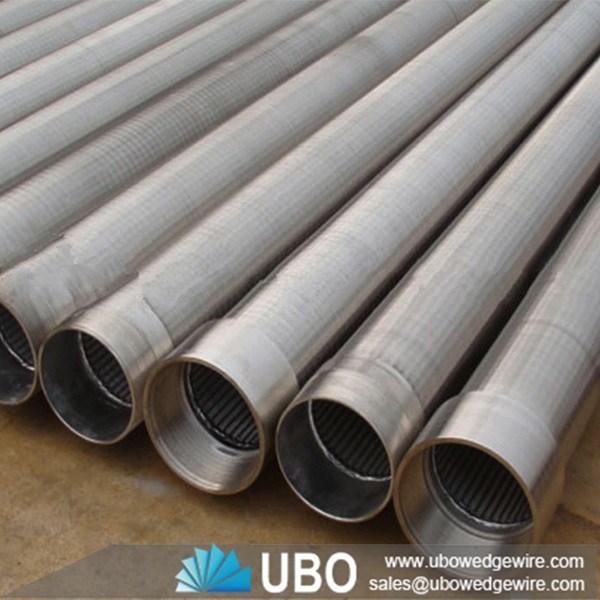

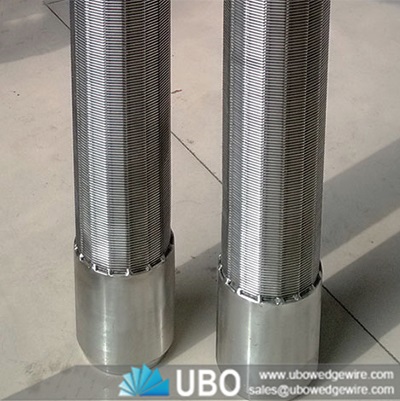

Wedge Wire Screen Pipe for Water TreatmentWedge Wire Screen Pipe for Water TreatmentWedge Wire Screen Pipe for Water Treatment

Wedge Wire Screen Pipe for Water Treatment

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire pipe
Application:mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter, salt indu

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen Pipe for Water Treatment

stainless steel Water treatment products water filters is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). It has a structure and high open area, as well as accurate slot dimension.



Application for Wedge Wire Screen Pipe for Water Treatment:



Filter tube or wedge wire pipes are usually used as the water filter equipment. They are used in the deep well pump, submersible pump systems, they can also be used in water treatment equipment, environmental protection, the water of the sea into the industrial water and domestic water desalination treatment, water treatment, water softening treatment, oil chemical industry: the terminal filtration of oil products and chemical acid, alkali liquid filtration, alcohol and other organic solution of recycling.



Advantage for Wedge Wire Screen Pipe for Water Treatment:



1) Non-clogging construction: The V-shape section plane of wedge wire screens (Johnson type screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.

2) Large Filtering Area: The consecutive slot of wedge wire screens (Johnson type screens) have wider open area,
and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better,which can increase the water yield and prolong service time of the well.

3) Long service life Wire and support rods are all-welded, which makes wedge wire screens (Johnson types screens) more robust and longer life.

4) Excellent construction strength: The longitudinal support rods and the continuous slot make the wedge wire screens(Johnson type screens) have more excellent pressure-resistant performance.

5) Specifications and end connections of wedge wire screens(Johnson screens) can me fabricated according to customers’ requirements

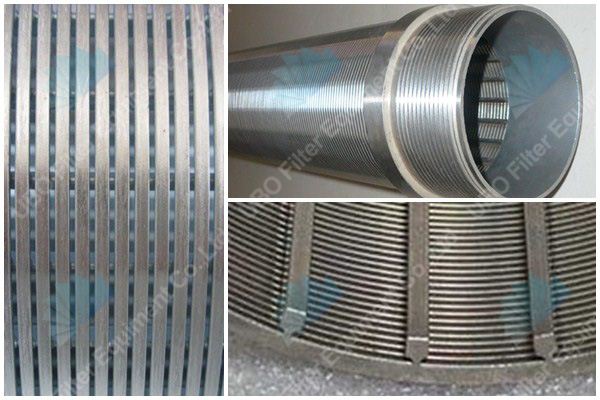

wedge wire screen pipe for water treatment

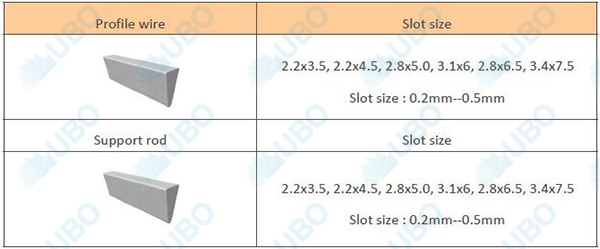

Specifications of Wedge Wire Screen Pipe for Water Treatment:

wedge wire screen pipe for water treatment



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Wedge Wire Screen Pipe for Water Treatment:

wedge wire screen pipe for water treatment
