Wedge Wire Screen Pipe

More Views

Wedge Wire Screen PipeWedge Wire Screen PipeWedge Wire Screen Pipe

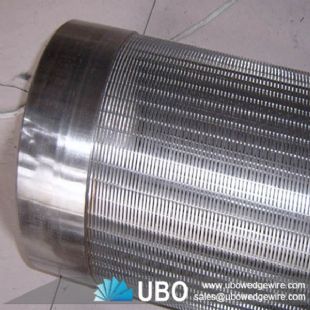

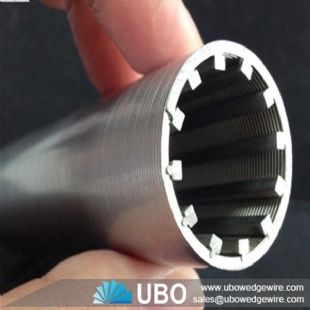

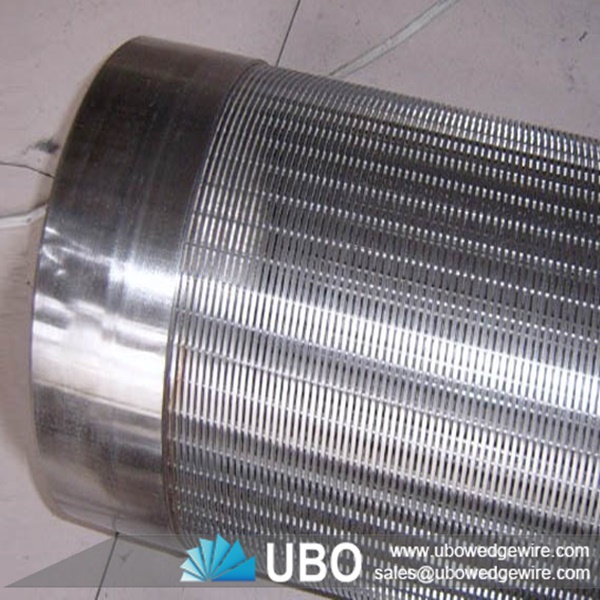

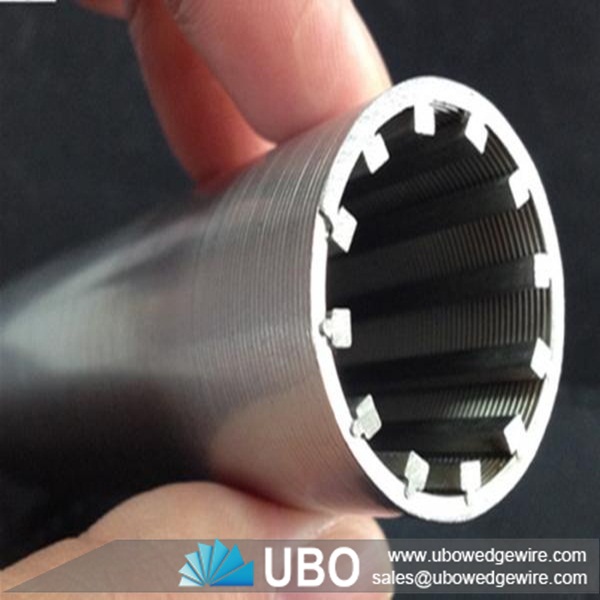

Wedge Wire Screen Pipe

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen Pipe

Wedge Wire screen pipes are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize friction head loss. Most continuous wire wrap screen is manufactured from stainless steel rather than carbon steel in order to avoid problems which often leads to accelerated corrosion.

Application of Wedge Wire screen pipe

Cylinders are used as rotary screens, collectors such as screen laterals and nozzles, resin traps, in-line strainers, water intake screens, well screens, as well as many other applications involving liquid / solids separation.

Features of Wedge Wire screen pipe

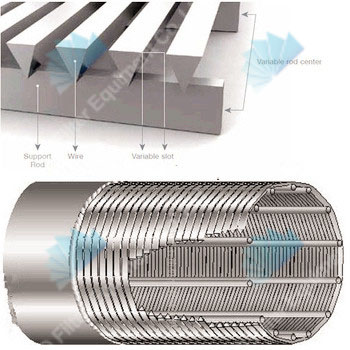

1).adoption of the wedged wires made a V profile slot. This design ensures the fluent of water filteration and more effective.
2).wedged wires are spirally wound around a cage of longitudinal support rods in succession which formed high-density uniformed slots and avoid clogging. So that the high production efficiency and long life service of the well are gaurenteed.
3).arrangement of the longitudinal support rods and the successive slots provide higher compressive property.

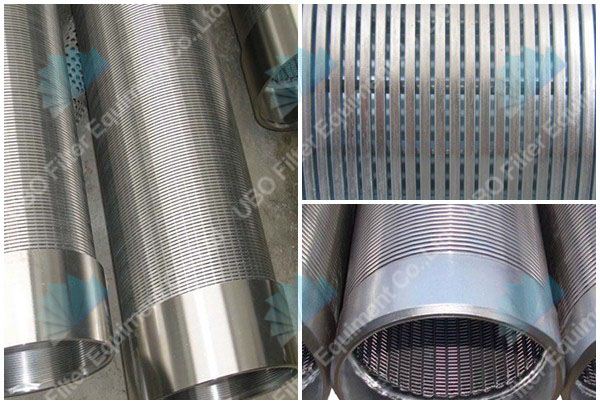

Wedge Wire Wedge Wire screen pipe

Specifications of Wedge Wire Screen Pipe:

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

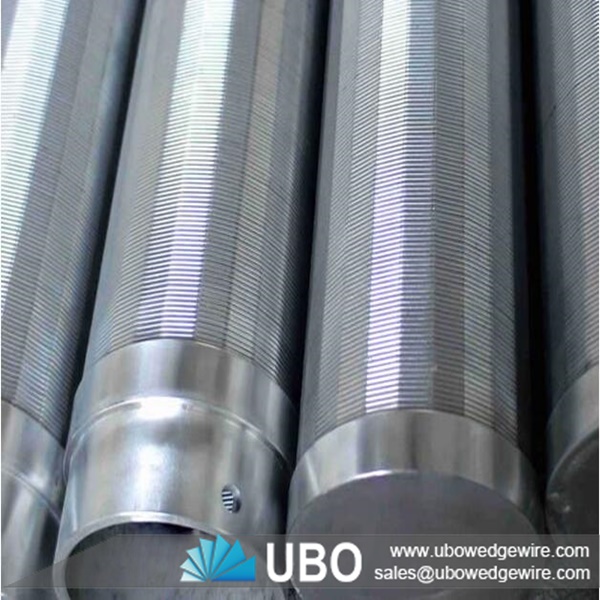

Wedge Wire Wedge Wire screen pipe

Wedge Wire Wedge Wire screen pipe


Packaging and Transportation of Wedge Wire Screen Pipe:
