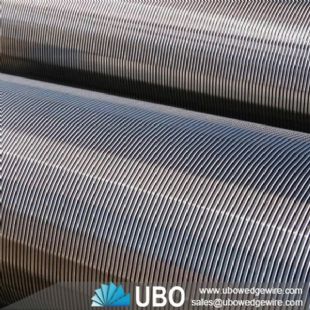

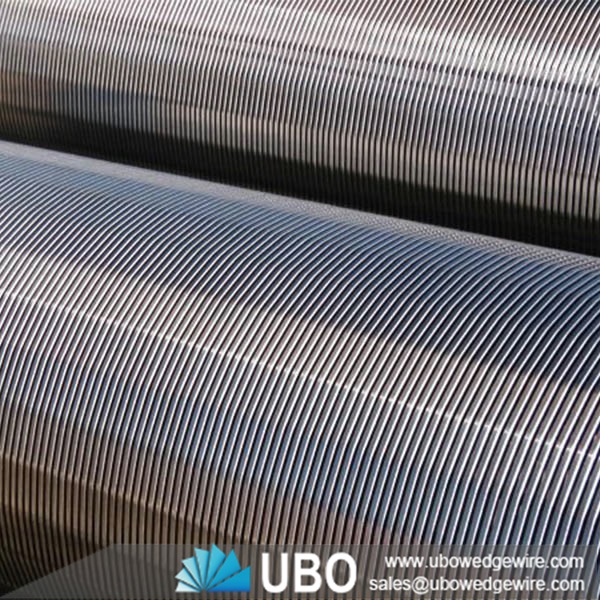

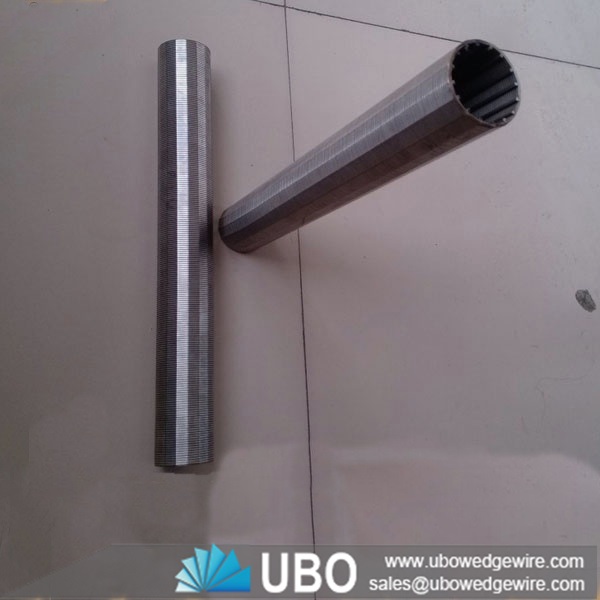

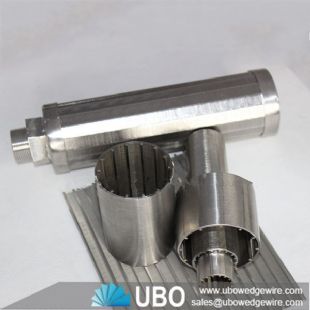

Stainless steel profile wire wrapped screens

More Views

Stainless steel profile wire wrapped screensStainless steel profile wire wrapped screensStainless steel profile wire wrapped screens

Stainless steel profile wire wrapped screens

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Pipe
Application:the water-treating equipment, the environmental protection, the sea water transforms into the industrial water

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless steel profile wire wrapped screens

   This type of wedge wire water well casing screen tube is constructed by winding cold rolled triangular V-shaped wire around a circular array of longitudinal rods. the wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.
    The screen can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

Application for Stainless steel profile wire wrapped screens:

Can be used with deep well,submersible pumps,and can also be used as water treatment equipment for environmental protection, desalination of seawater into the treatment of industrial water and domestic water, water treatment, water softening treatment, the petroleum industry: oil filtration and recycling end-product of chemical organic solution of acid, alkali liquid filtration, alcohol and other filtering. Can also be used for hydro-geological exploration, drilling, drilling, construction, reservoirs precipitation, foundation digging precipitation, geothermal development and utilization of mineral exploitation, geothermal air conditioning, repair broken wells,underground water sources

Features for Stainless steel profile wire wrapped screens:

1.Filter pipe with high porosity is more efficient for the construction of water, oil and gas wells.
2.Filter pipe with low operating costs and high porosity is more conducive to groundwater infiltration, and plenty of deep water make the water level drop reduced, thereby reducing energy consumption.
3.Reducing pump wear, under the same conditions, the high porosity makes groundwater infiltration rate in the filter pipe penetration rate more slowly compared to other filtration apparatus, thus avoiding the sand enter the filter pipe in the larger pressure,reducing pump wear.
4.to extend the life of the well, relatively speaking, a high groundwater infiltration drainage pipe filter pores easier, low flow rate, extending the life of the well.

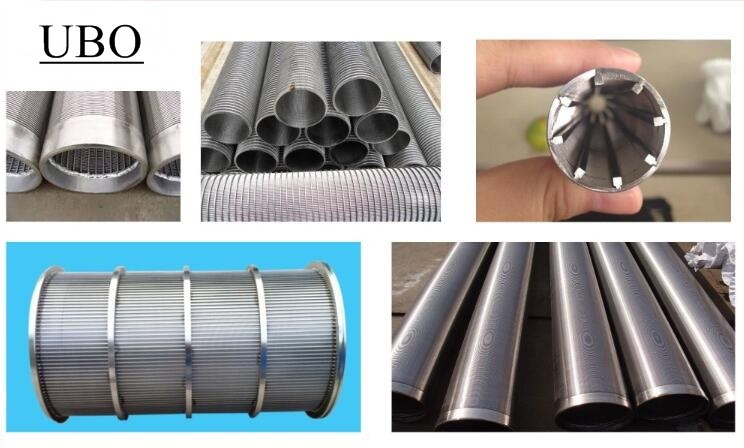

Stainless steel profile wire wrapped screens

Specifications of Stainless steel profile wire wrapped screens:

Stainless steel profile wire wrapped screens

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Stainless steel profile wire wrapped screens:

Stainless steel profile wire wrapped screens
