Stainless Steel wire mesh screen cylinder

More Views

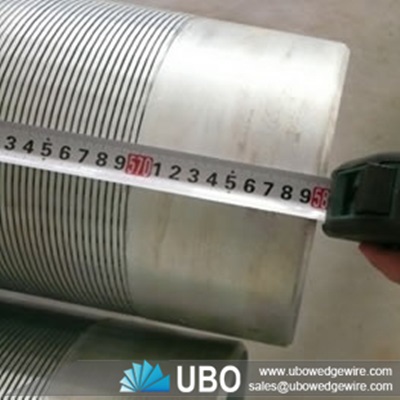

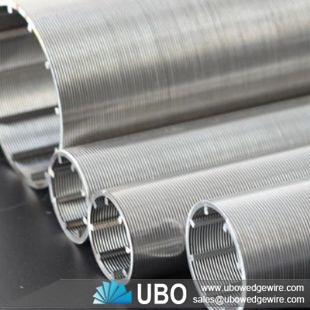

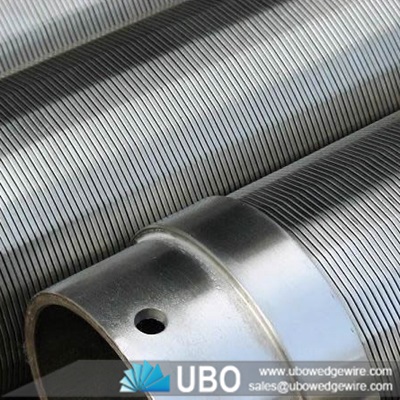

Stainless Steel wire mesh screen cylinderStainless Steel wire mesh screen cylinderStainless Steel wire mesh screen cylinder

Stainless Steel wire mesh screen cylinder

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire cylinder screens
Application:food processing, waste water filtration, pulp and paper as well as mineral processing applications

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel wire mesh screen cylinder

       Wedge wire screen cylinders can be manufactured in almost unlimited height and diameter with the wire running circumficial or long-slot rolled to the I.D. or the O.D. of the cylinder. These wedge wire cylinder screens can be manufactured for stationary/static processing or can be driven on trunnions for a rotating effect on your materials.

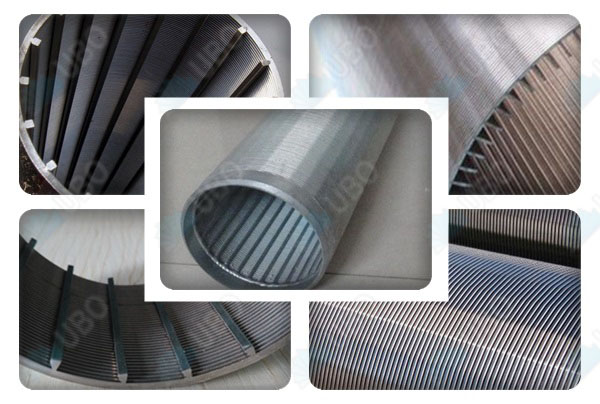

Stainless Steel wire mesh filter screen cylinder

Application for Stainless Steel wire mesh screen cylinder:

Our stainless steel cylinders can be used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

Features for Stainless Steel wire mesh screen cylinder:

1.adoption of the wedged wires made a V profile slot. This design ensures the fluent of water filteration and more effective
2.wedged wires are spirally wound around a cage of longitudinal support rods in succession which formed high-density uniformed slots and avoid clogging. So that the high production efficiency and long life service of the well are gaurenteed.
3.arrangement of the longitudinal support rods and the successive slots provide higher compressive property

Technical patameter for Stainless Steel wire mesh filter screen cylinder:

The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

Stainless Steel wire mesh filter screen cylinder

Specifications of Stainless Steel wire mesh screen cylinder:

Stainless Steel wire mesh filter screen cylinder

No.
Type(mm)
OD(mm)
ID(mm)
Support wire Number
Filter direction
1
SRD25.4
25.4
18.6
12
FOTI
2
SRD33
33
24
8
FOTI
3
SRD37
37
28
8
FOTI
4
SRD40
40
31
8/10
FOTI/FITO
5
SRD45
45
36
10/12
FOTI/FITO
6
SRD48
48
38
12
FOTI/FITO
7
SRD60
60
51
12
FOTI/FITO
8
SRD70
70
61
12/18
FOTI/FITO
9
SRD85
85
76
18
FOTI/FITO
10
SRD110
110
101
24
FOTI/FITO
11
SRD120
120
111
24
FOTI/FITO

Packaging and Transportation of Stainless Steel wire mesh screen cylinder:

Based on the quantity of wedge wire screen resin traps, we will found the most available delivery way for client , Guarantee client receive goods in time .
About the package material : normally we use lignified wood wooden case with water-proof bag, make sure that client see their goods in good quality and complete quantity !
