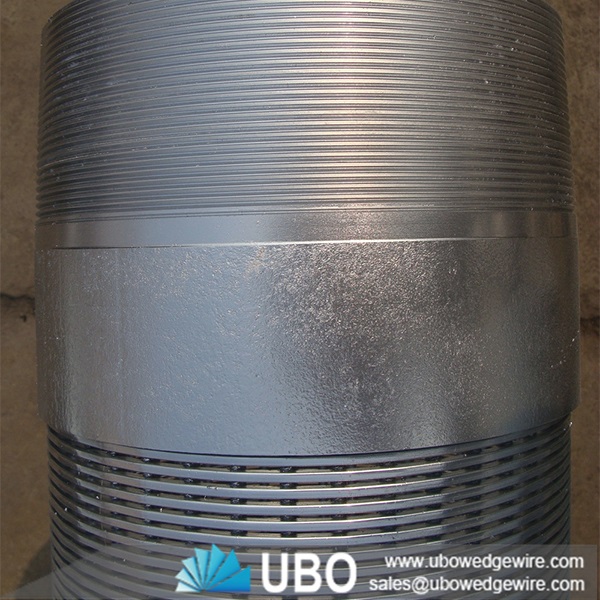

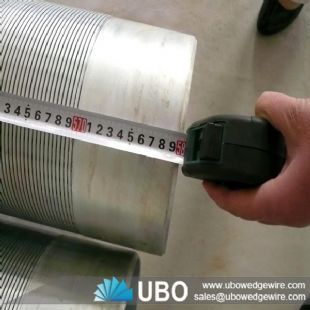

Stainless Steel cylinder screen strainer basket used as Pressure Screens

More Views

Stainless Steel cylinder screen strainer basket used as Pressure ScreensStainless Steel cylinder screen strainer basket used as Pressure ScreensStainless Steel cylinder screen strainer basket used as Pressure Screens

Stainless Steel cylinder screen strainer basket used as Pressure Screens

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Cylinder
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel cylinder screen strainer basket used as Pressure Screens

    The warp is triangular wire (V-shaped wire). The welded ring sand control wedge wire screen pipe have a robust structure and large open area, as well as accurate slot dimension. At the same time, wedge wire screens pipe have many advantages such as heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.

Application for Stainless Steel cylinder screen strainer basket used as Pressure Screens:

The welded ring sand control wedge wire screen pipes are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water,oil or gas filter and other filtration equipment.

Features for Stainless Steel cylinder screen strainer basket used as Pressure Screens:

1).adoption of the wedged wires made a V profile slot. This design ensures the fluent of water filteration and more effective.
2).wedged wires are spirally wound around a cage of longitudinal support rods in succession which formed high-density uniformed slots and avoid clogging. So that the high production efficiency and long life service of the well are gaurenteed.
3).arrangement of the longitudinal support rods and the successive slots provide higher compressive property

Advantages for Stainless Steel cylinder screen strainer basket used as Pressure Screens:

•Reduced costs, since wedge wire screens have a very long life.
•Greater resistance to stresses of different pressure and temperature.
•Maximum effective flow area & operating efficiency is maintained.
•Costly downtime for cleaning plugged screens is minimize.

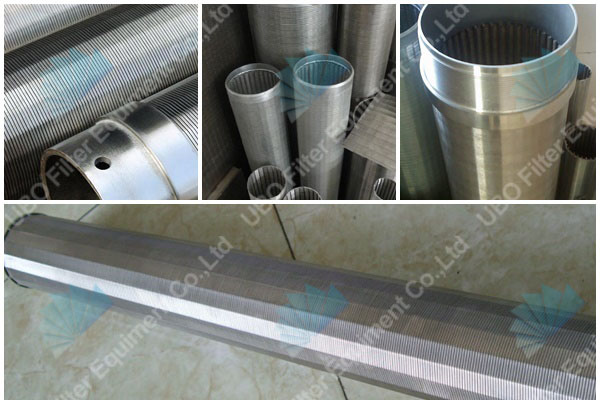

welded ring sand control <a href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> pipe

Specifications of Stainless Steel cylinder screen strainer basket used as Pressure Screens:

Stainless Steel cylinder screen strainer basket used as Pressure Screens

Wire Size

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Support Rods

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other wires and rods available upon request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length

Lengths up to 6 meters.

Diameter

ranging from 25mm to 800mm.

End connection

Plain beveled ends for butt welding or threaded



Packaging and Transportation of Stainless Steel cylinder screen strainer basket used as Pressure Screens:

Stainless Steel cylinder screen strainer basket used as Pressure Screens
