304 stainless steel wedge wire well screen cylinder

More Views

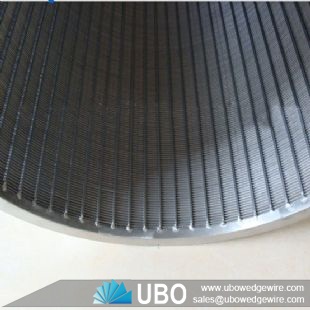

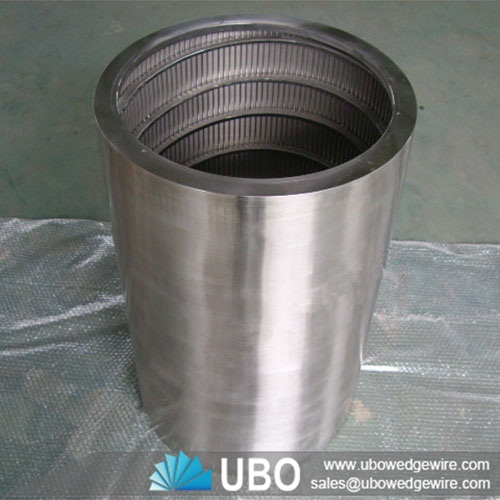

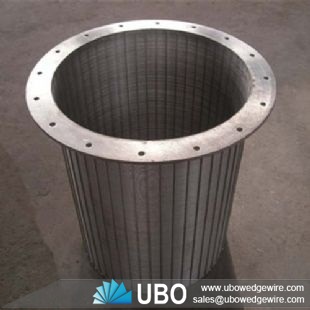

304 stainless steel wedge wire well screen cylinder304 stainless steel wedge wire well screen cylinder304 stainless steel wedge wire well screen cylinder

304 stainless steel wedge wire well screen cylinder

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel
Properties:wedge wire screen
Application:the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of 304 stainless steel wedge wire well screen cylinder

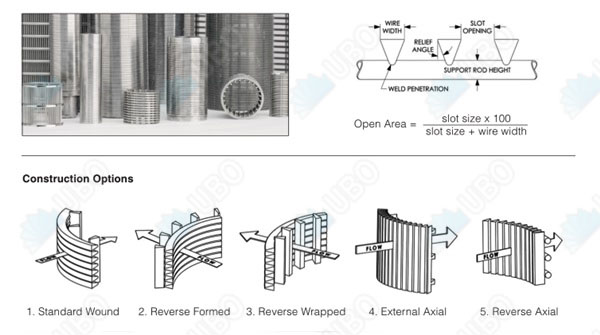

      Wedge Wire screen cylinders can be designed with slot openings and wires running radial on the outside surface of the screen cylinder or they can be positioned axially on the inside of the cylinder
Each intersection of wedge wire and support rod is welded for strength and durability. Various wedge wire and support rod combinations can be used to produce the best screen design.

Application for 304 stainless steel wedge wire well screen cylinder :

The strainer is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Characteristics for 304 stainless steel wedge wire well screen cylinder:

1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve back flushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

Advantage for 304 stainless steel wedge wire well screen cylinder:

•A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
•A uniform and efficient well development due to the continuous slot opening.
•Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
•Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

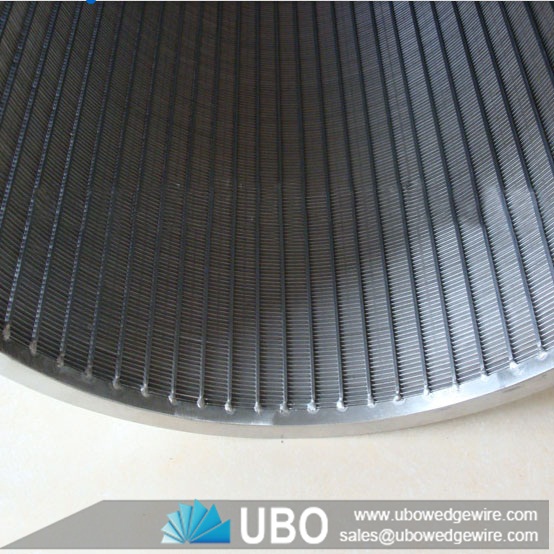

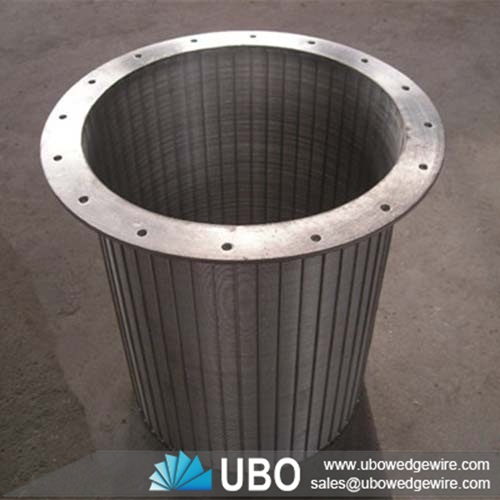

304 stainless steel  wedge wire well screen cylinder

Specifications of 304 stainless steel wedge wire well screen cylinder:

304 stainless steel wedge wire screen / wedge wire well screen cylinder

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

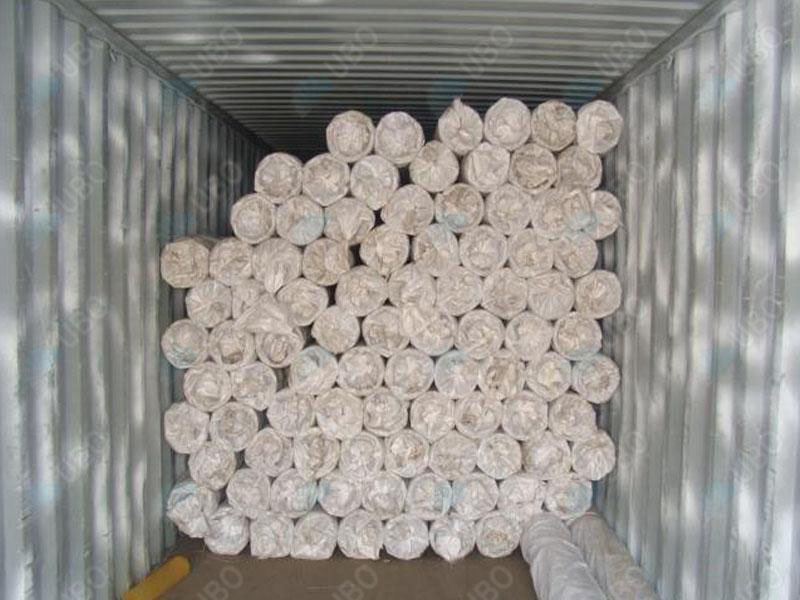

Packaging and Transportation of 304 stainless steel wedge wire well screen cylinder:

304 stainless steel  wedge wire well screen cylinder
