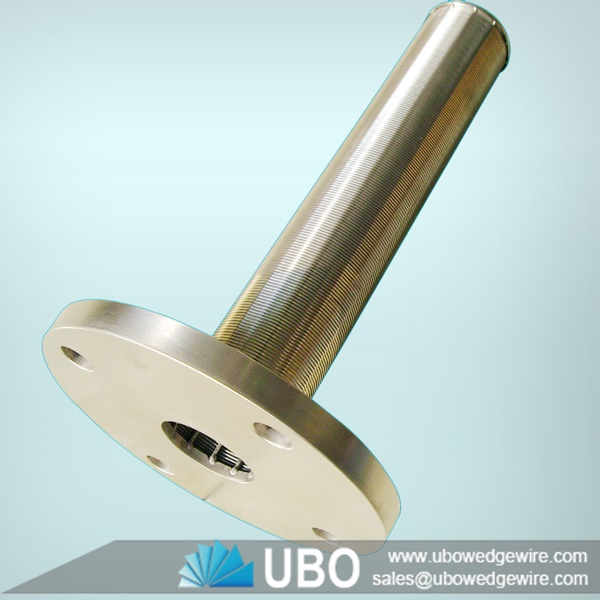

Stainless steel 304 wedge wire screen for resin trap

More Views

Stainless steel 304 wedge wire screen for resin trapStainless steel 304 wedge wire screen for resin trapStainless steel 304 wedge wire screen for resin trap

Stainless steel 304 wedge wire screen for resin trap

Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire resin trap
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless steel 304 wedge wire screen for resin trap

Stainless steel 304 wedge wire screen for resin trap is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

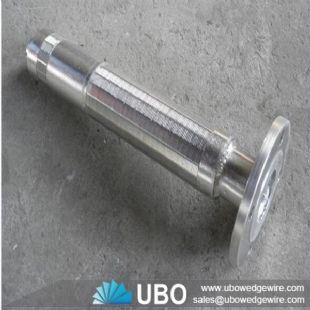

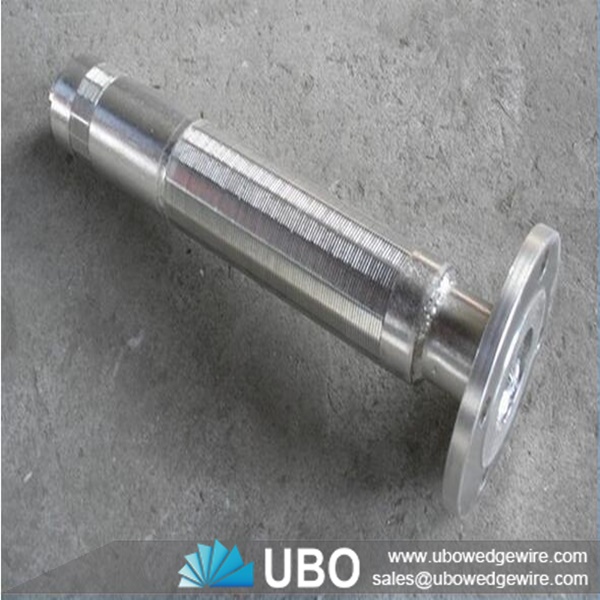

Stainless steel 304 wedge wire screen for resin trap

Advantages of Stainless steel 304 wedge wire screen for resin trap

Precise slot
Non-clogging surface
Large open area
Low pressure drop
High flow rates
Great mechanical strength
Abrasion-resistant
Easy cleaning
Flexibility in design
Perfect roundness,smooth surface

Application of Stainless steel 304 wedge wire screen for resin trap

to capture expensive resin that escapes from a treatment vessel by accident to protect equipment further downstream.

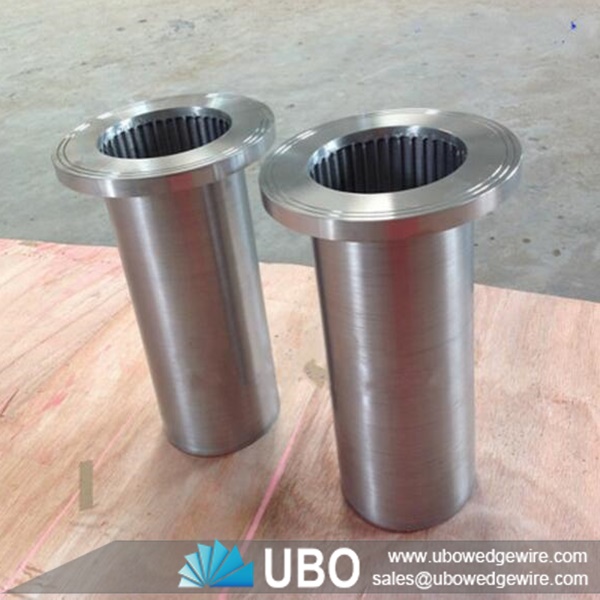

Stainless steel 304 wedge wire screen for resin trap

Specifications of Stainless steel 304 wedge wire screen for resin trap:


Specification (wedge wire):

Width(mm): 1.00 1.00 1.50 1.80 2.00 2.20 2.50 3.00 3.30 3.70
Height(mm): 1.80 2.00 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 10.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size:

0.01mm-10.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316L etc.)

Length:

up to 6 meters

End connection:

Plain beveled ends, flanged or threaded coupling.

Diameter:

from 15mm to 1200mm.

Note:1.This product can customize according to customer’s actual need.
