SS316 Resin Traps collectors for vacuum infusion

More Views

SS316 Resin Traps collectors for vacuum infusionSS316 Resin Traps collectors for vacuum infusionSS316 Resin Traps collectors for vacuum infusion

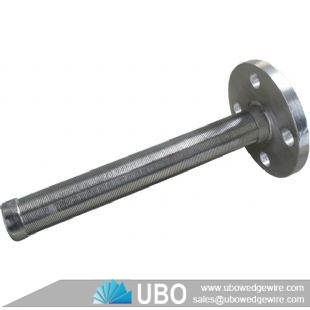

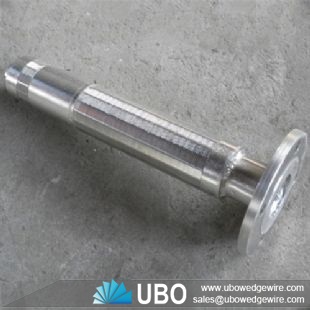

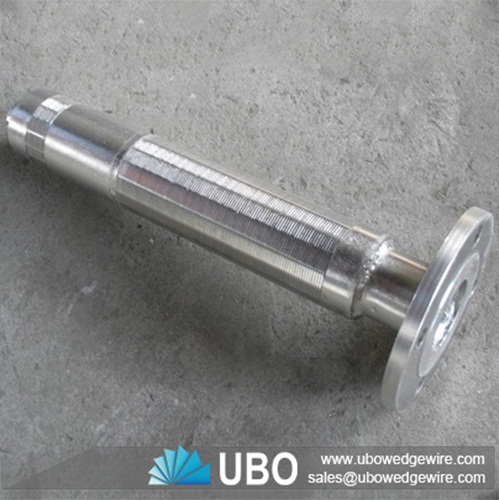

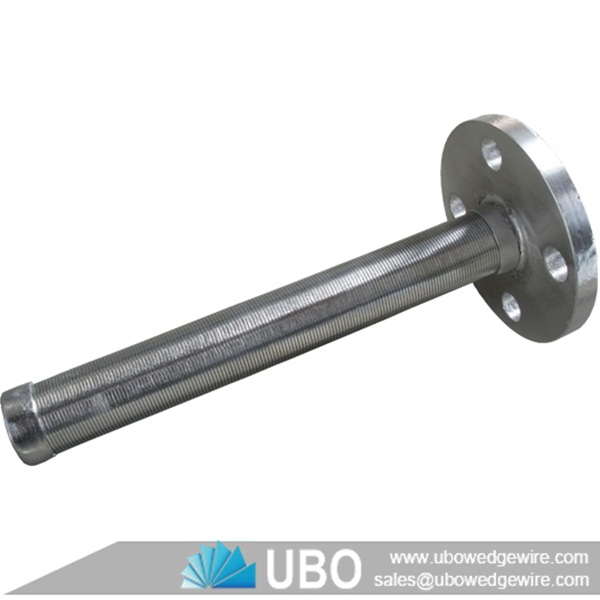

SS316 Resin Traps collectors for vacuum infusion

Category:Resin Traps
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge wire screen
Application:water treatment, resin traps, oilfield, mining, food industry, chemical industry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS316 Resin Traps collectors for vacuum infusion

SS316 Resin Trap Screen Hub and Header Lateral is made of V shaped stainless steel wire. It has flow area, water distribution uniformity, the high mechanical strength, temperature, pressure, anti aging, anti corrosive has been greatly enhanced. Stainless steel wire around the space under the index finger to the size of the design.

Features of SS316 Resin Traps Collectors for Vacuum Infusion:

-- Loss of expensive resins

-- Cross-contamination of resins

-- Damage to pumps, valves, etc. further down process disturbance

-- Environmental damage incurred by loss of resins.

-- Wedge wire is non pluggling surface.

-- Wedge wire is a fully welded construction able to support high pressure and temperature

-- An easy installation ( between flanges) directly on the line.

Applications of SS316 Resin Traps Collectors for Vacuum Infusion:

water treatment, resin traps, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Description of SS316 Resin Traps Collectors for Vacuum Infusion:

1) Resin Trap to keep the resin does not pass the filter if there is a leak from the filter / strainer / nozzle. so it can be detected / maintained so that the resin is not wasted.

2) Resin Trap Screen Predominantly used in water treatment processes namely in ‘Ion Exchange’ and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

The Profile Wire Screen element included with the main housing as depicted below eliminates the migration and loss of expensive resin/media, whilst at the same time protecting your pumping equipment. A combination of different Profile Wire sizes and slot openings can be used depending on your circumstances. Completion Products will also determine the effective screen open area in order to improve upon efficiency and minimise the pressure drop.

In the event that there is resin/media build up with the Resin Trap Screen assembly, an increase in the pressure drop will result and if one is installed, the resin/media will be visible through the “sight glass”.

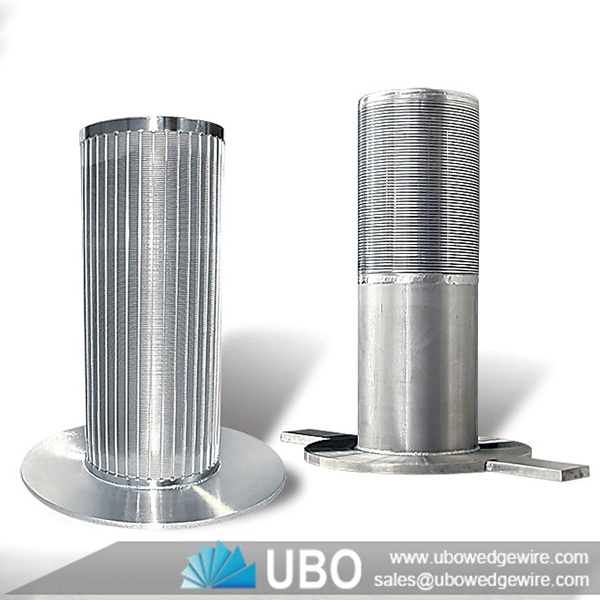

SS316 Resin Traps collectors for vacuum infusion

Specifications of SS316 Resin Traps collectors for vacuum infusion:



Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of SS316 Resin Traps collectors for vacuum infusion:

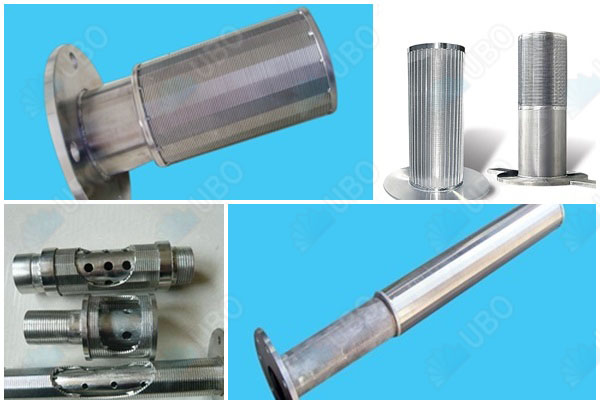

SS316 Resin Traps collectors for vacuum infusion
