Wedge Wire Wedge Wire Screen Nozzle Strainer for Activated Carbon Filtration

More Views

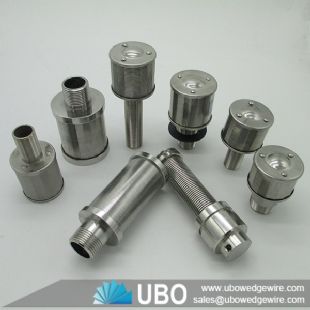

Wedge Wire Wedge Wire Screen Nozzle Strainer for Activated Carbon FiltrationWedge Wire Wedge Wire Screen Nozzle Strainer for Activated Carbon FiltrationWedge Wire Wedge Wire Screen Nozzle Strainer for Activated Carbon Filtration

Wedge Wire Wedge Wire Screen Nozzle Strainer for Activated Carbon Filtration

Category:Filter Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Wedge Wire Screen Nozzle Strainer for Activated Carbon Filtration

Wedge Wire wedge wire screen nozzle strainers are welded at each intersection of V-shaped surface wire and support rod for optimum structural strength.To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle. Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Wedge Wire wedge wire screen nozzle strainer offer almost endless cleanability via backwashing. By reversing the flow, the cake and filtered particles are removed.

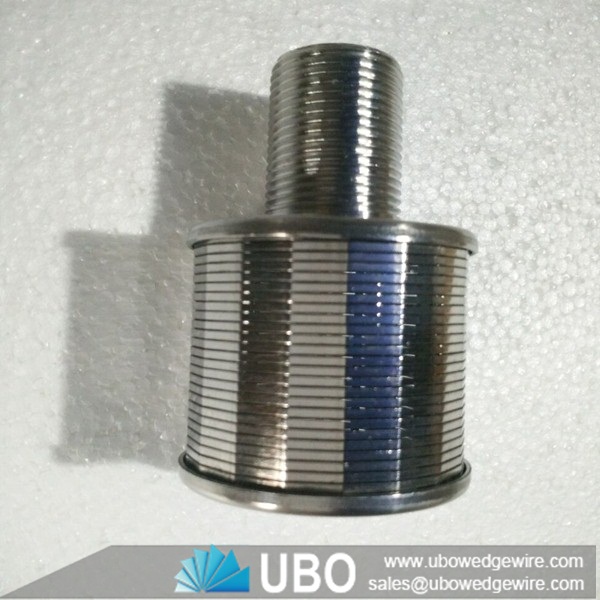

Wedge Wire wedge wire screen nozzle strainer used for activated carbon filtration

Wedge Wire wedge wire screen nozzle strainer used for activated carbon filtration

Features of Wedge Wire Wedge Wire Screen Nozzle Strainer for Activated Carbon Filtration

Optimum structural strength for heavy loads
Minimal plugging and blinding
High pressure/pulsating pressure capability
Corrosive application suitability
Thermal resistance
Long-life — almost endless cleanability
Sterile application / food industry suitability
Low pressure drop
High flow rate

Application of Wedge Wire Wedge Wire Screen Nozzle Strainer for Activated Carbon Filtration

Water treatment, Chemical, Petrochemical, Pharmacy, Biotechnology, Power plants , Ion-exchange, mix bed

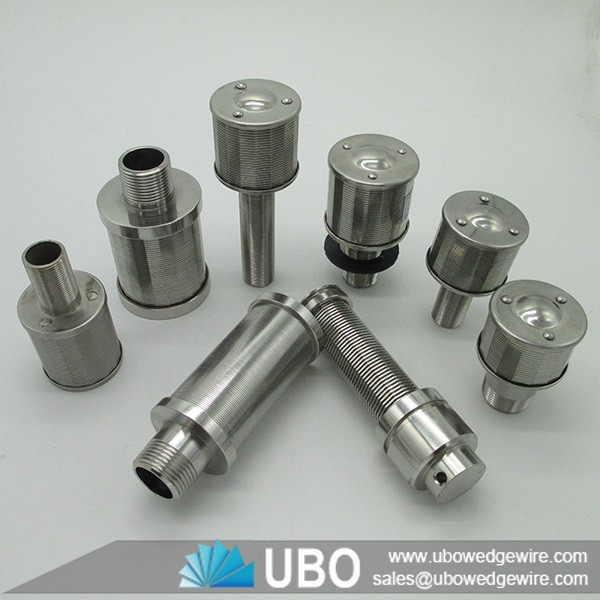

Wedge Wire wedge wire screen nozzle strainer used for activated carbon filtration

Wedge Wire wedge wire screen nozzle strainer used for activated carbon filtration

Wedge Wire wedge wire screen nozzle strainer used for activated carbon filtration

Specifications of Wedge Wire Wedge Wire Screen Nozzle Strainer for Activated Carbon Filtration:

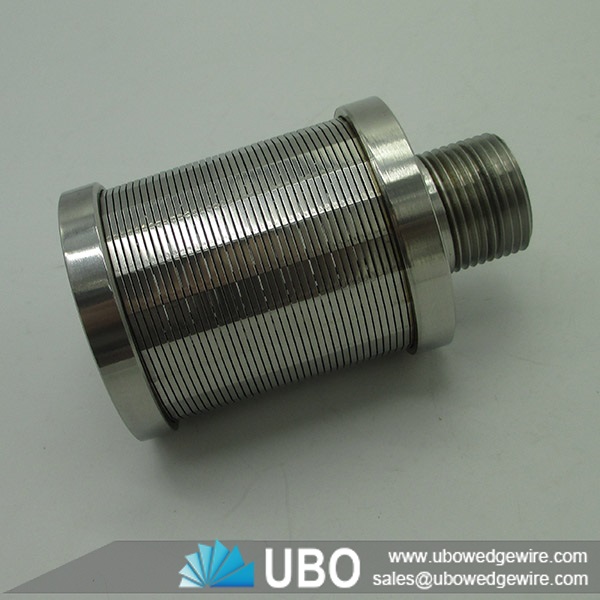

Wedge Wire wedge wire screen nozzle strainer used for activated carbon filtration

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement

Packaging and Transportation of Wedge Wire Wedge Wire Screen Nozzle Strainer for Activated Carbon Filtration:

Package: in wood case

Delivery Time:5-25 days
