Quality Wedge Wire Screen Manufacturer in China

Stainless Steel Water Filter Nozzle Strainer for Water Treatment Equipment

More Views

Stainless Steel Water Filter Nozzle Strainer for Water Treatment EquipmentStainless Steel Water Filter Nozzle Strainer for Water Treatment EquipmentStainless Steel Water Filter Nozzle Strainer for Water Treatment Equipment

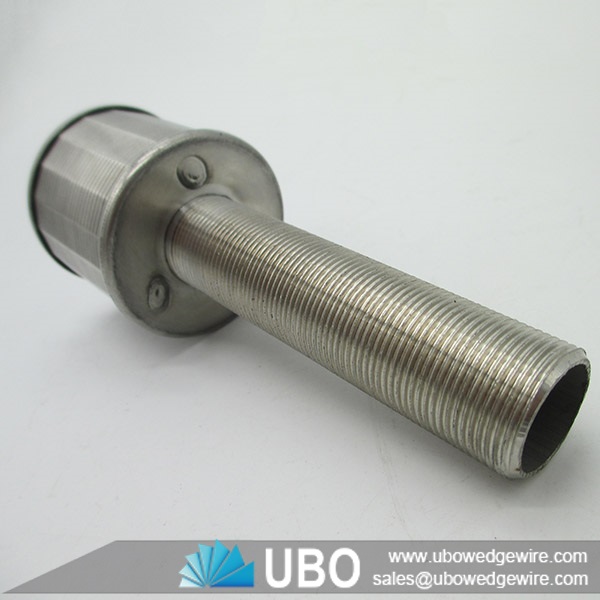

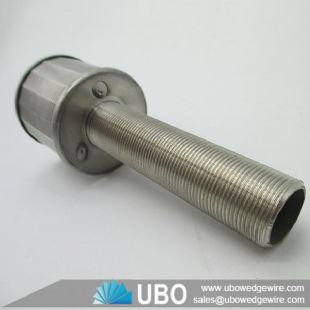

Stainless Steel Water Filter Nozzle Strainer for Water Treatment Equipment

Category:Filter Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Water Filter Nozzle Strainer for Water Treatment Equipment

Stainless steel water filter nozzle strainer for water treatment equipment is an ideal solution for applications with heavy amounts of media whose weight could compromise the integrity of unsupported screens. That’s because nozzles are affixed to durable steel plates that can withstand great loads without damage. Using the nozzle method gives you the reliability you want with the flow rate you require.

UBO manufactures Stainless steel water filter nozzle strainer using a variety of materials to ensure long life and reliable performance. The non-plugging, continuous slot design makes UBO nozzles ideal for applications that involve the retention of sand, activated carbon, ion exchange resin and more. They withhold the media while allowing the treated liquid to pass through.



Stainless steel water filter nozzle strainer for water treatment equipment

Stainless steel water filter nozzle strainer for water treatment equipment

Stainless steel water filter nozzle strainer for water treatment equipment

Application of Stainless Steel Water Filter Nozzle Strainer for Water Treatment Equipment

he wedge wire wrapped screen softening nozzle water processing nozzle filter can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. It can be widely used in in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry. Also it can replace the Polypropylene ( PP ) filter, sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

Stainless steel water filter nozzle strainer for water treatment equipment

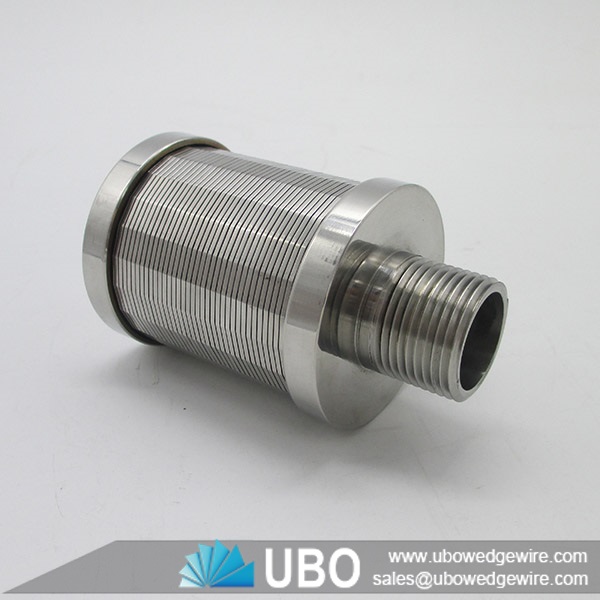

Other type of filter nozzle

Stainless steel water filter nozzle strainer for water treatment equipment

Specifications of Stainless Steel Water Filter Nozzle Strainer for Water Treatment Equipment:

Stainless steel water filter nozzle strainer for water treatment equipment

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement

Packaging and Transportation of Stainless Steel Water Filter Nozzle Strainer for Water Treatment Equipment:

Stainless steel water filter nozzle strainer for water treatment equipment
