Quality Profile Wire Screen Filter Nozzle Strainer for Water Filtration System

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment ,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Details of Quality Profile Wire Screen Filter Nozzle Strainer for Water Filtration System

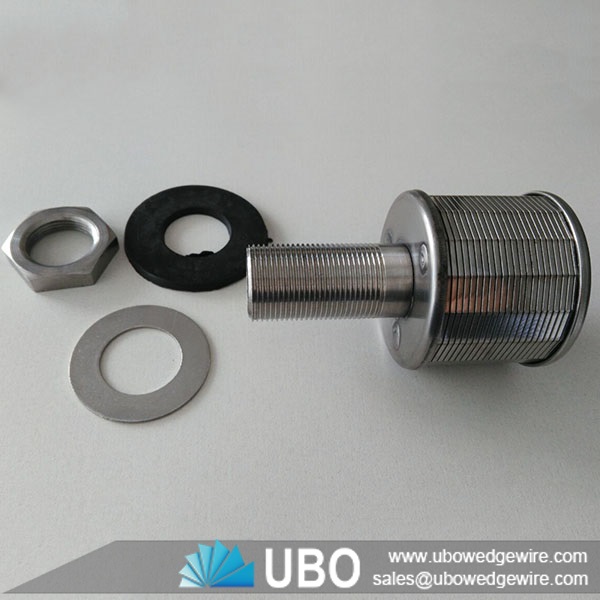

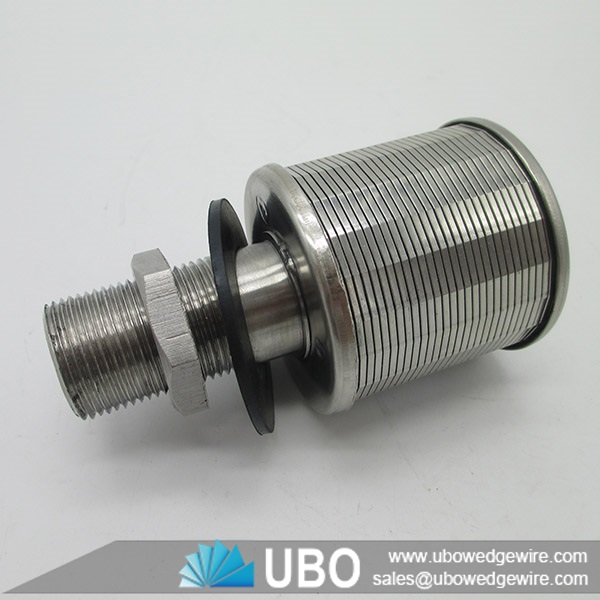

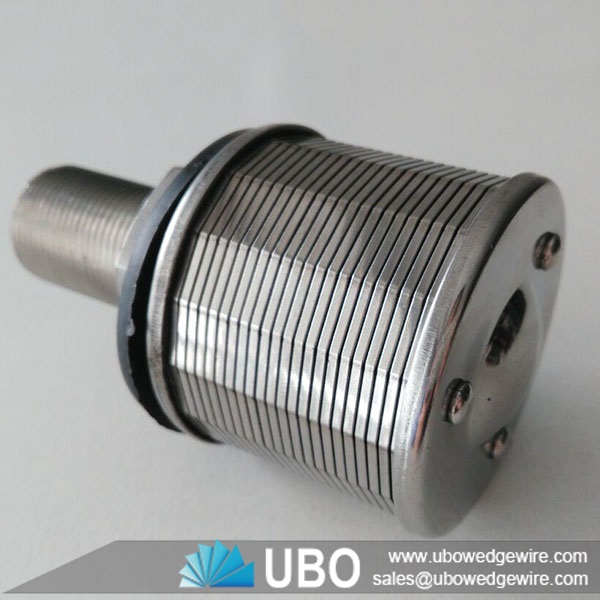

Johnson type wedge wire filter nozzle strainer a screen pipe. Nozzles are closed on one side and have a threaded fitting on the other. The screen nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium.One rubber shim , one steel shim and two thin nuts of the same material for a nozzle.

Johnson type wedge wire filter nozzle strainer used for water filtration system

Applications of Profile Wire Screen Filter Nozzle Strainer for Water Filtration System

The stainless wedged screen nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Features of Profile Wire Screen Filter Nozzle Strainer for Water Filtration System

-- Great mechanical strength

-- Highly resistant to abrasivity and vibration.

-- It can hold more pressure and temperature compared to the perforated sheet screen.

-- Longer screen life.

-- Larger useful area than that of the standard perforated sheet screen.

-- The wedge wire screen is assembled to the filter body by clamp, allows an easy and quick disassembling for cleaning.

--  It is possible to clean the wedge wire screen with a reversed flow (back flushing).

Johnson type wedge wire filter nozzle strainer used for water filtration system

Johnson type wedge wire filter nozzle strainer used for water filtration system

Johnson type wedge wire filter nozzle strainer used for water filtration system

Specifications of Quality Profile Wire Screen Filter Nozzle Strainer for Water Filtration System:

Johnson type wedge wire filter nozzle strainer used for water filtration system

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0



* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement

Packaging and Transportation of Quality Profile Wire Screen Filter Nozzle Strainer for Water Filtration System:

Package: in wood case

Delivery Time: 5-25 days
