Wedge Wire Filter Nozzle: An Essential Component for Efficient Filtration

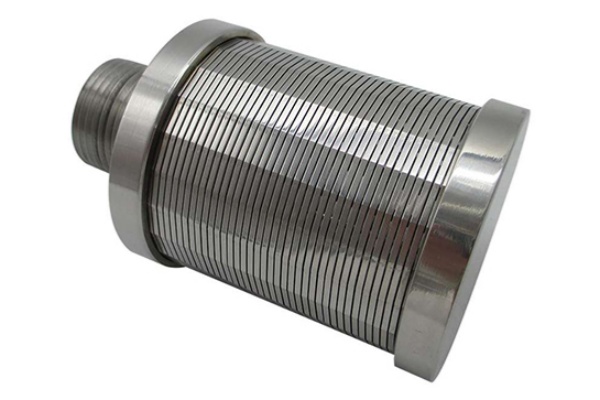

What is a Wedge Wire Filter Nozzle?

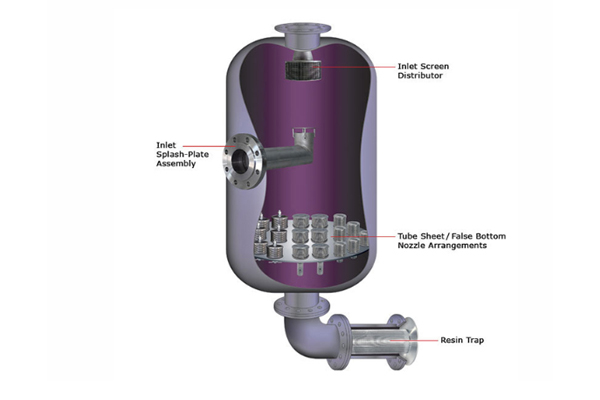

The wedge-shaped wire filter nozzle is a crucial filtering component used in water treatment equipment. It is mainly designed to achieve uniform water and air distribution and effectively prevent the leakage of filter materials (such as quartz sand, resins, etc.). Ion exchange filter nozzle is widely applied in industries such as power, petroleum, chemical engineering, pharmaceuticals, food, sewage treatment, and waterworks, and performs particularly well in systems that require efficient backwashing and long-term stable operation, such as ion exchangers, mechanical filters, condensate water purification devices, etc.
Wedge wire filter nozzle is widely applied in industries such as power, petroleum, chemical engineering, pharmaceuticals, food, sewage treatment, and waterworks, and performs particularly well in systems that require efficient backwashing and long-term stable operation, such as ion exchangers, mechanical filters, condensate water purification devices, etc.
Key Features of Wedge Wire Filter Nozzles
Durability and Strength: It is manufactured with stainless steel (such as 304, 316L, 904L or Hastelloy alloy), which is resistant to pressure, aging, and rarely cracks. It is suitable for high-pressure, high-temperature and highly corrosive environments.
Customizable Designs: The gap width (typically ranging from 0.15 to 0.25 mm), connection method (such as threads, flanges, etc.), length and shape can all be customized according to customer requirements.
Flow area: The flow efficiency can reach 2-3 times that of traditional plastic water caps, ensuring the stable operation of the system.
Advantages of Using Wedge Wire Filter Nozzles
Cost-Effectiveness: Although the initial purchase cost is higher than that of plastic water caps, due to the fact that they require almost no replacement and are easy to maintain, the long-term operating cost is lower.
Enhanced Operational Efficiency: The wedge-shaped wire structure forms a "V" -shaped gap. The particles only come into contact at two points along the edge of the metal wire and are difficult to embed, effectively preventing clogging. The continuous and uniform grooves also support efficient backwashing, reducing maintenance frequency.
Environmentally Friendly: The stainless steel material is non-toxic and pollution-free, meeting the hygiene standards for the food and pharmaceutical industries. It is not prone to bacterial growth and is suitable for high-demand systems such as drinking water, beverages, and injection water.
Practical Tips for Wedge Wire Filter Nozzle Selecting
When purchasing stainless steel filter nozzle, one needs to consider factors such as material, gap accuracy, structural type, connection method and application scenarios comprehensively, in order to ensure their efficient, stable and long-term operation under specific working conditions.
Choose the appropriate material based on the usage environment
|
Material
|
Applicable scene
|
Explanation
|
|
304 stainless steel
|
General water treatment, water treatment plants, food industry
|
It has good antioxidant performance, is economical and practical, and is suitable for municipal and conventional industrial water treatment
|
|
316L stainless steel
|
Chloride-containing water bodies (such as desalinated water) and pharmaceutical pure water systems
|
High corrosion resistance, widely used in power plants, chemical industries and other high-demand scenarios.
|
The wedge wire screen is a key component widely used in water treatment systems.The wedge wire filter nozzle is equipped with custom-designed wedge-shaped screens to meet specific flow requirements. Our products can be integrated into filtration or treatment systems to optimize the efficiency of the processed medium.Our factory can design and manufacture various types of wedge-shaped screen water nozzles.We can offer you professional product selection recommendations.
