Why Wedge Wire Nozzles Last Longer

Welcome to Hebei YUBO Filtration Equipment Co.,Ltd.

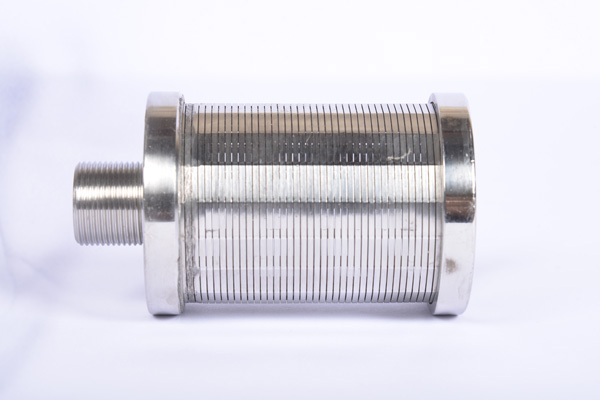

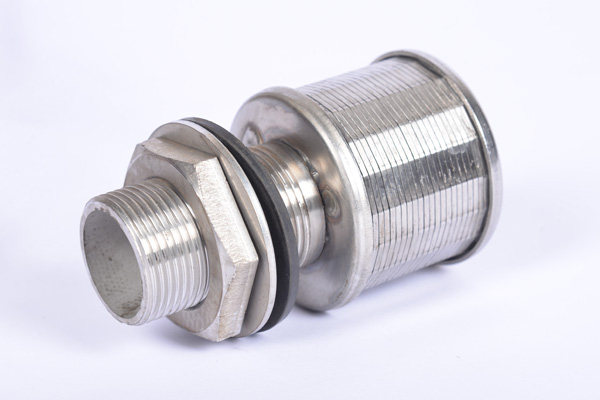

water filter nozzles introduction

Wedge wire screen nozzles is made of high-quality stainless steel material and with great strength and corrosion resistant and difficult to plug.Nozzels are used in liquid/solid or gas/sloid separetion,can effectively wash debris .,increase the operation rate of the reaction medium.  According to different applications, the wedge wire nozzle can be divided into two main types:single wedge wire nozzle and double wedge wire nozzle.

The wedge wire nozzle features non-clogging, high filtering efficiency and economical. It has a wide range of applications in water treatment applications. The different wedge wire sizes and slot sizes can suit different class filtration. Continuous slot design make it high efficiency and long service life.Thier specification and quantity will vary depending on application and customer-flow requirments.

water filter nozzles features

Typical slot opening ranging from 0.02-5mm,the gap is uniform and not easy to be blocked

Threaded end flange or “L”bolts.

Primarily made of stainless steel ,anti-corrosive and long service life.

Continuous slot design provide large circulation area

The surface of the goods is polished, not easy to rust, strong and durable.

Easy to use,easy to install and replacement.

water filter nozzles application

It Used for advanced purification of urban drinking water and industrial water,in power plant, petroleum, chemical, food and other industries of water treatment equipment field.Water filter nozzles is a high-grade purification material in the production of high-purity water and mineral water.Collectors and distributors installed uniformly acrossa plate or a header lateral arrangement..Demineralizers,water softeners and in pressure andgravity sand filters.

Advantages

Wedge wire screen filter nozzles offer several advantages:

High Strength: They are able to withstand high pressures and loads, making them suitable for demanding applications.

Non-Clogging: The V-shaped profile wire design allows for easy backwashing and reduces the risk of clogging.

High Filtration Accuracy: They provide precise filtration control, which is vital for maintaining product quality in various industries.

Long Service Life: Made of durable materials like stainless steel, these nozzles are resistant to corrosion and wear, ensuring a long service life.

In conclusion, wedge wire screen filter nozzles are an essential component in various industrial sectors due to their high strength, non-clogging design, high filtration accuracy, and long service life.

FAQ – Wedge Wire Water Filter Nozzle

Q1: How do I choose the right slot size for my application?

A: Slot size selection should be based on the particle size you need to retain, typically choosing a slot slightly smaller than the target particles. For multi-layer media (like sand filters), consider the finest layer to prevent media loss while maintaining flow efficiency.

Q2: What is the difference between single and double wedge wire nozzles, and which one should I use?

A: Single nozzles are suitable for standard filtration and distribution, while double nozzles provide higher flow capacity and improved structural stability. Double types are often preferred in large-scale systems or where backwashing intensity is high.

Q3: Why does my system experience uneven flow distribution? Can nozzles fix this?

A: Uneven flow is often caused by poor nozzle layout or inconsistent specifications. Properly designed nozzle spacing, combined with uniform slot sizes, ensures balanced distribution and prevents channeling in filter beds.

Q4: Are wedge wire nozzles suitable for high-pressure or high-temperature environments?

A: Yes, when made from appropriate stainless steel grades (such as 304, 316, or higher alloys), they perform well under demanding conditions. Always confirm material compatibility with your specific chemical and thermal environment.

Q5: How often do these nozzles need maintenance or replacement?

A: Due to their non-clogging design, maintenance frequency is relatively low. Regular backwashing is usually sufficient. Replacement intervals depend on operating conditions, but high-quality nozzles can last several years.

Q6: Can these nozzles be customized for specific systems?

A: Yes, parameters such as thread type, slot size, diameter, and length can all be tailored to match your system design and flow requirements.
