Wedge wire screen panels are widely used in mining, mineral processing, water treatment, pulp and paper, food processing, and chemical industries where filtration and screening equipment often operates under high mechanical loads. In these demanding environments, filtration efficiency alone is not enough. The screen panel must also maintain structural integrity, dimensional stability, and consistent flow performance over long operating periods.

Understanding how wedge wire screen panels perform under high loads helps engineers select the right design, reduce maintenance requirements, and extend equipment service life.

What Determines High-Load Performance?

High-load performance refers to a screen panel's ability to withstand continuous mechanical stress without excessive deformation, weld failure, or loss of filtration accuracy.

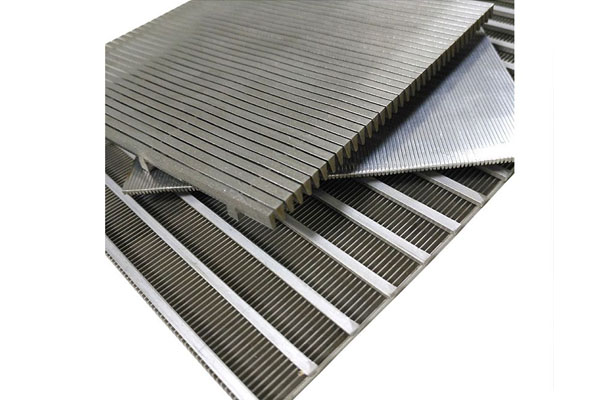

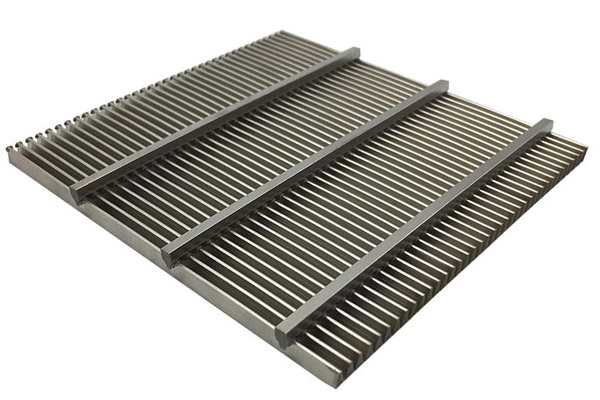

Unlike woven wire mesh, wedge wire panels are manufactured by resistance welding V-shaped profile wires to support rods, creating a rigid structure that distributes loads more evenly across the entire panel. This construction provides higher mechanical strength while maintaining a large open area for efficient flow.

However, overall performance depends on several engineering factors rather than material strength alone.

Key Factors Affecting Structural Performance

1. Panel Construction

The structural design of the panel has the greatest influence on load capacity. Important considerations include the profile wire shape, support rod arrangement, panel thickness, and welding quality.

Increasing support density or selecting heavier profile wires generally improves rigidity, especially in applications involving continuous vibration or heavy solid loading.

2. Material Selection

Material selection directly affects both mechanical strength and corrosion resistance.

Stainless steel grades such as 304 and 316L are commonly used for general industrial applications, while duplex stainless steels or other high-strength alloys may be preferred for highly corrosive or abrasive environments.

Selecting materials according to the operating conditions helps maintain long-term structural stability and reduces the risk of premature failure.

3. Load Distribution

Uniform load distribution is often more important than the total applied load. Concentrated impact loads can cause localized stress around weld joints, while evenly distributed loads allow the panel to perform much more efficiently.

Proper support frames and secure installation help minimize bending and reduce fatigue over repeated operating cycles.

4. Operating Environment

High loads are frequently accompanied by abrasive particles, elevated temperatures, pressure fluctuations, or corrosive process fluids. These combined conditions accelerate wear if the panel is not properly designed.

Matching the screen panel design to the actual operating environment improves durability and reduces maintenance frequency.

Common Design Considerations

Rather than optimizing a single parameter, engineers typically balance these design elements to achieve both mechanical strength and hydraulic efficiency.

Improving Service Life Under Heavy Loads

Several engineering practices can significantly improve screen panel performance in demanding applications.

• Select a panel thickness appropriate for the expected mechanical load.

• Use high-quality resistance welding to ensure strong wire-to-support connections.

• Design adequate structural supports to prevent excessive deflection.

• Avoid oversized slot openings that may reduce panel rigidity.

• Perform regular inspections to identify wear or fatigue before structural damage occurs.

These measures help reduce unexpected shutdowns while maintaining stable filtration performance throughout the equipment's operating life.

Frequently Asked Questions

Can wedge wire screen panels withstand continuous heavy loading?

Yes. Properly designed wedge wire screen panels are well suited for continuous industrial operation. Their welded construction provides excellent mechanical strength, especially when supported by an appropriate frame.

Does a thicker panel always provide better performance?

Not necessarily. While thicker components generally increase strength, panel design, support arrangement, and welding quality are equally important in determining overall performance.

Which industries require high-load wedge wire screen panels?

Mining, aggregate processing, wastewater treatment, pulp and paper, chemical processing, and many bulk material handling applications commonly require screen panels capable of withstanding heavy mechanical loads.

How can service life be extended?

Selecting suitable materials, ensuring proper installation, minimizing uneven loading, and performing routine inspections are the most effective ways to extend the operating life of wedge wire screen panels.

The performance of a wedge wire screen panel under high loads depends on more than material strength alone. Structural design, welding quality, support configuration, and operating conditions all play critical roles in determining long-term reliability.

By evaluating these engineering factors during the design and selection process, manufacturers and plant operators can achieve better structural performance, longer service life, reduced maintenance, and more consistent filtration efficiency in demanding industrial applications.
