Practical Wedge-Wire Screen Cylinder

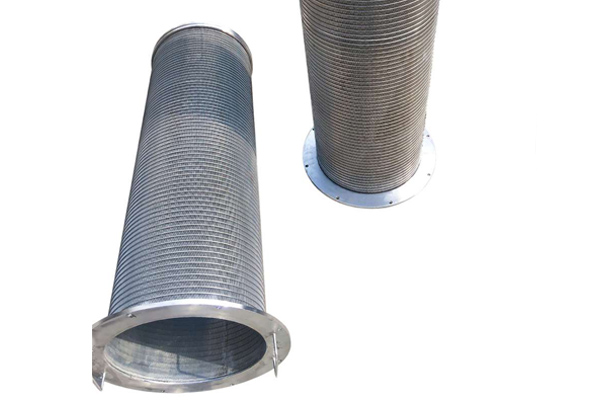

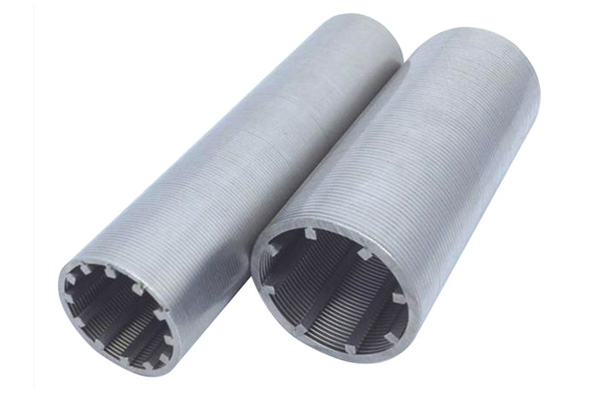

Manufactured by welding V-shaped profile wires onto support rods, wedge wire cylinders form continuous slot openings along the screen surface. This structure allows fluids to pass through smoothly while retaining unwanted particles and debris.

Wedge wire cylinders can be produced in various stainless steel grades such as 304 and 316L, with diameters ranging from 1/2 inch pipe size up to 35 inches. Different wire and support rod combinations can also be customized to meet specific filtration and strength requirements.

How Wedge Wire Cylinders Work

The filtration process is based on continuous slot openings created between adjacent wedge wires. As liquid or slurry flows through the screen surface, particles larger than the slot opening are retained while clean fluid continues through the system.

The V-shaped wire design creates openings that widen inwardly, helping reduce clogging and improving flow efficiency. This non-blocking structure also makes cleaning and backwashing easier compared to traditional perforated screens.

Because of their stable flow performance and durability, wedge wire cylinders are often used in both rotary screens and static screening systems.



Main Features of Wedge Wire Cylinders

Continuous Slot Openings

The continuous slot design increases the open area of the screen, improving filtration efficiency and flow capacity.

Anti-Clogging Performance

The inward-widening slot structure prevents particles from becoming trapped inside the openings, helping maintain uninterrupted flow.

Strong Welded Construction

Each intersection between the wedge wire and support rod is firmly welded, providing excellent mechanical strength and long service life.

Easy Cleaning and Backwashing

The ladder-like wire structure allows debris to be removed more easily, reducing maintenance frequency and downtime.

Flexible Connection Options

Wedge wire cylinders can be supplied with welded ends, threaded male/female couplings, or other custom connection styles depending on installation requirements.

Standard lengths are typically available from 1 meter to 5.85 meters.



Common Applications of Wedge Wire Cylinders

Wedge wire cylinders are suitable for many industrial screening and filtration applications, including:

Rotary drum screens

Static screens

Water intake screens

Well screens

Resin traps

In-line strainers

Screen laterals and nozzles

Liquid-solid separation systems

Their reliable filtration performance makes them ideal for systems that require continuous operation and low maintenance.

Advantages Over Traditional Filter Media

Compared with perforated plates or woven wire mesh, wedge wire cylinders provide:

Higher open area

More accurate slot openings

Better anti-clogging performance

Longer operational lifespan

Improved structural strength

Lower maintenance costs

These advantages help improve overall system efficiency and reduce downtime in industrial operations.



FAQ About Wedge Wire Cylinders

What materials are commonly used for wedge wire cylinders?

Most wedge wire cylinders are manufactured from stainless steel grades such as 304 and 316L because of their corrosion resistance and durability.

Can wedge wire cylinders be customized?

Yes. Diameter, slot size, length, wire profile, and connection type can all be customized based on application requirements.

Why are wedge wire cylinders resistant to clogging?

The V-shaped wire creates slots that widen inwardly, allowing particles to pass through more easily without blocking the openings.

Are wedge wire cylinders suitable for high-flow systems?

Yes. Their high open-area design supports stable flow rates while maintaining efficient filtration performance.

What industries commonly use wedge wire cylinders?

They are widely used in water treatment, mining, petrochemical processing, food production, wastewater treatment, and industrial filtration systems.
