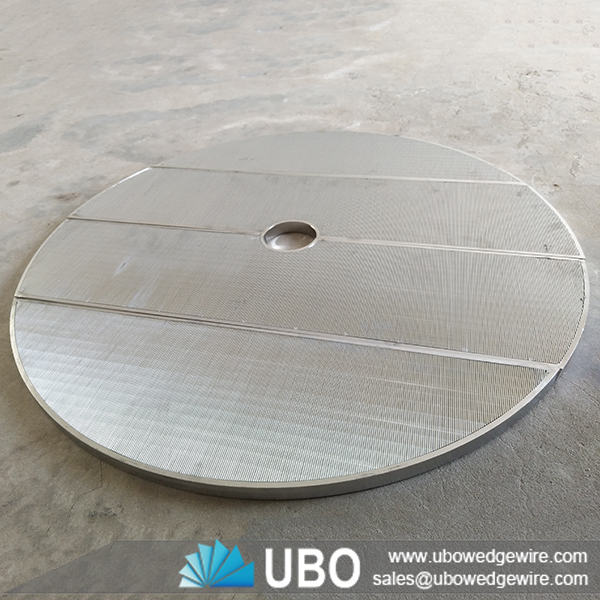

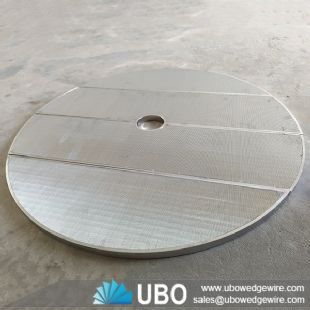

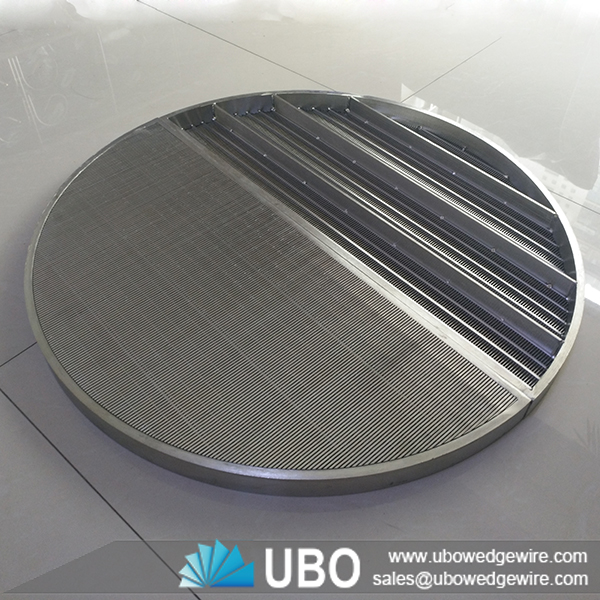

Stainless steel lauter mash tun screen false bottom screen for brewery

More Views

Stainless steel lauter mash tun screen false bottom screen for breweryStainless steel lauter mash tun screen false bottom screen for breweryStainless steel lauter mash tun screen false bottom screen for brewery

Stainless steel lauter mash tun screen false bottom screen for brewery

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:lauter tun screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless steel lauter mash tun screen false bottom screen for brewery

Stainless steel lauter mash tun screen false bottom screen consist of shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage, and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded, so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure ,so it can filter sand better.

Stainless steel lauter mash tun screen false bottom screen for brewery

Application of Stainless steel lauter mash tun screen false bottom screen

• Lauter tun screen
• Mash tun screen
• False bottom screens
• Custom made screens for retro-fit or new installations.

Application of Stainless steel lauter mash tun screen false bottom screen for brewery

Feature of Stainless steel lauter mash tun screen false bottom screen for brewery

1. Continuous slot screens, stronger and more durable
2. More open area, very precise openings
3. Virtually non-clogging and reduce media abrasion
4. Easier installation and long-term operating and cost benefits

Stainless steel lauter mash tun screen false bottom screen for brewery

Stainless steel lauter mash tun screen false bottom screen for brewery

The specifications of the Stainless steel lauter mash tun screen false bottom screen for brewery:

Strccture of Stainless steel lauter mash tun screen false bottom screen for brewery

Normal Name

Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc.

Diameter Range

(MM)

200mm To 2500mm. Diameter Customized

Normal Diameter

(MM)

29”, 30”, 35”, 37”, 40”, 45”, 47”, 59”, 63”, 74”, Etc

Normal Slot

(MM)

0.7mm, 0.75mm, 0.8mm, 1.0mm, customized

Normal Thickness (MM)

8.5mm, 20mm. 25mm, 30mm, 40mm, 50mm, Customized.



Sections & shape

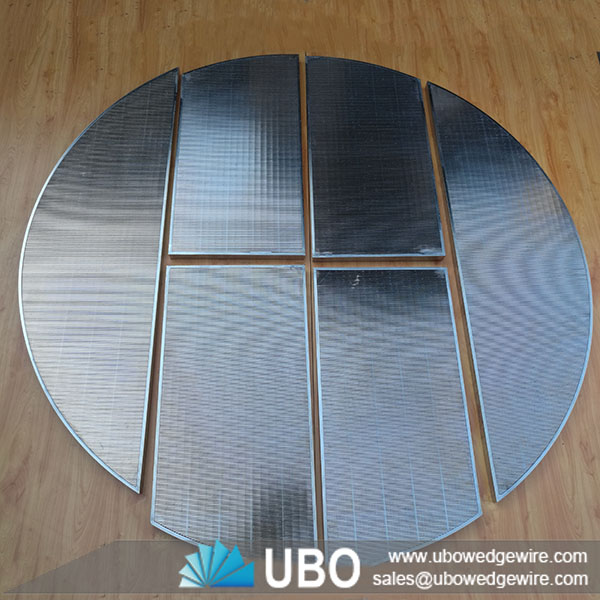

1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized

Wedge wire

(MM)

2x4MM Wedge Wire, 3x5MM Wedge Wire

Support Rod

 (MM)

3x5MM V shaped Support Rod, 3x5mm Square Support Rod

Strengthen Rod

(MM)

Thickness and Height according to the diameter and screen thickness

Note

Usually customized.

The Packaging and Transportation of the Stainless steel lauter mash tun screen false bottom screen for brewery:

Transportation of Stainless steel lauter mash tun screen false bottom screen for brewery
